HEACLAMP (E1,E2,E24,E30,E71)

GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

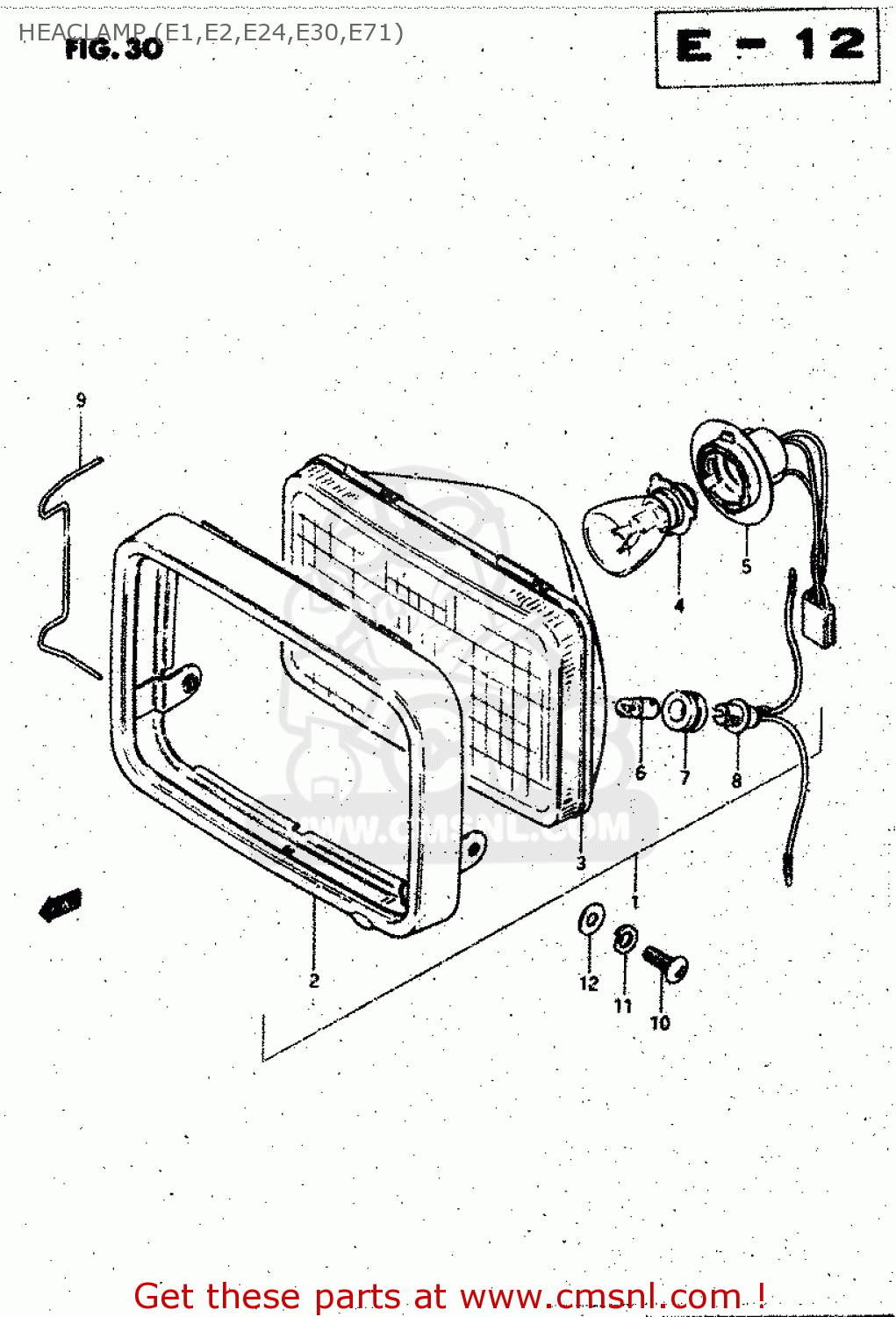

Heaclamp (e1,e2,e24,e30,e71) diagram GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

HEACLAMP (E1,E2,E24,E30,E71) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
HEACLAMP (E1,E2,E24,E30,E71) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
HEACLAMP (E1,E2,E24,E30,E71) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
prices are in EUR
ref
part #
description
quantity
1-1
3510036510
ref: 1-1
E1,E24,E30,E71
HEADLAMP ASSY
€ 0.00
1-2
3510036520
ref: 1-2
E2
HEADLAMP ASSY
€ 0.00
2
3511136510
ref: 2
RIM
3511136510
€ 44.00
3-1
3512136510
ref: 3-1
E1,E24,E30,E71
LAMP UNIT
€ 0.00
3-2
3512136520
ref: 3-2
E2
LAMP UNIT
€ 0.00
4
0947112033
ref: 4
BULB 12V35/35W
0947112033
€ 6.00
5-1
3517127320
ref: 5-1
E1,E24,E30,E71
SOCKET,HEADLAMP
€ 15.50
5-2
3517136621
ref: 5-2
E2
SOCKET
€ 15.50
6
0947112001
ref: 6
E2
BULB(12V3.4W,STANLEY,A72A)
0947112001
€ 1.50
7
3611622630
ref: 7
E2
JOINT,RUBBER
3611622630
€ 5.00
8
3611849320
ref: 8
E2
SOCKET
3611849320
€ 12.00
9
3512836511
ref: 9
SPRING
3512836511
€ 4.00
10-1
0211205128
ref: 10-1
MODEL Z/D/F/K/L/M
SCREW
€ 2.50
10-2
0211275127
ref: 10-2
MODEL R
SCREW
0211275127
€ 2.50
11
0832121057
ref: 11
LOCK WASHER
0832121057
€ 2.00
12
0832221057
ref: 12
WASHER
0832221057
€ 2.50
