FRONT FORK (GS125Z/D)

GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

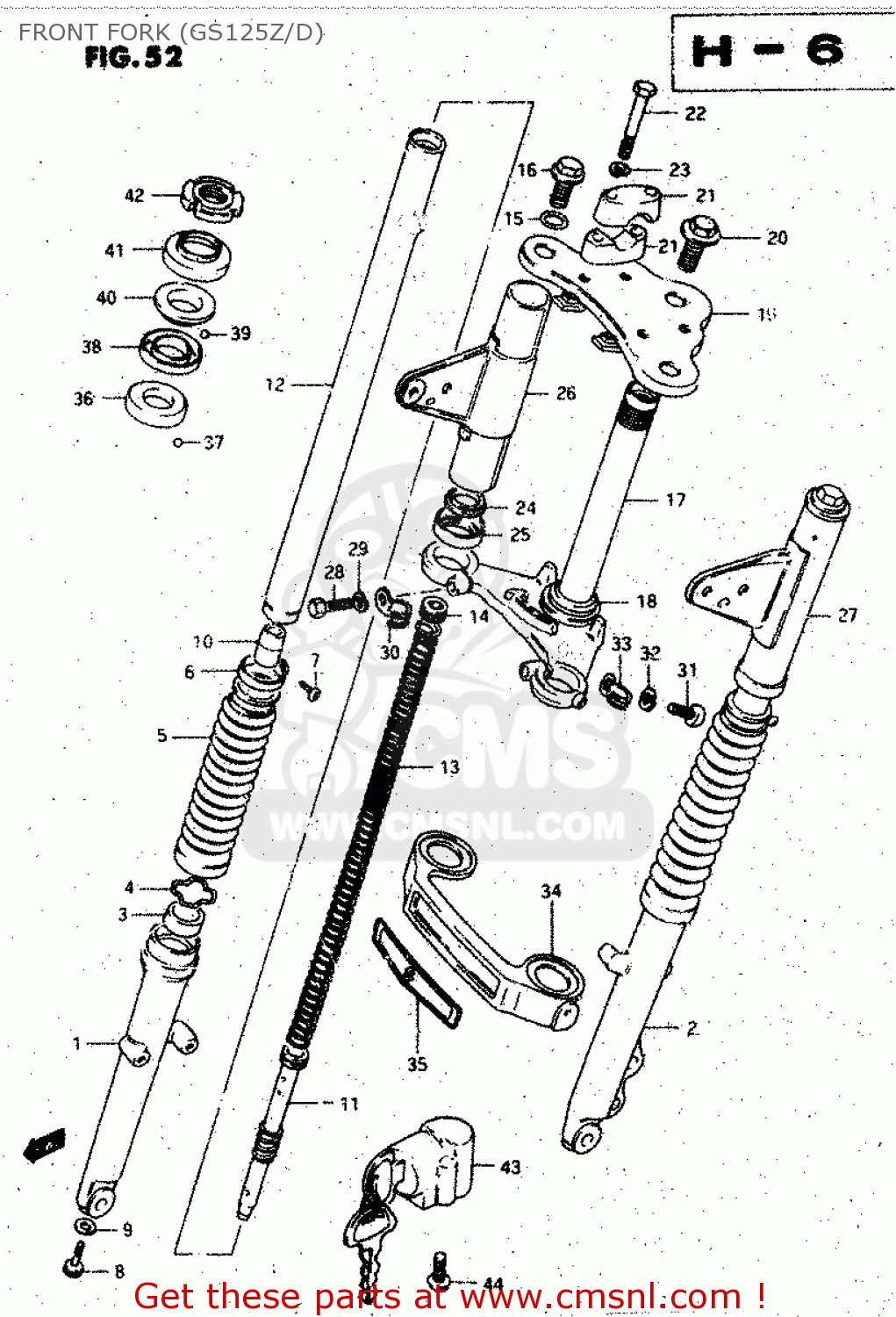

Front fork (gs125z/d) diagram GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

FRONT FORK (GS125Z/D) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
FRONT FORK (GS125Z/D) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
FRONT FORK (GS125Z/D) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
prices are in EUR
ref
part #
description
quantity
0
5110005360291
ref: 0
FRONT FORK ASSY
€ 0.00
1
5113036500
ref: 1
TUBE,OUTER,R
5113036500
€ 88.50
2
5114005360
ref: 2
TUBE,OUTER,L
€ 0.00
3
5115329400
ref: 3
OIL SEAL,FRONT FORK
5115329400
€ 11.00
4
5115639260
ref: 4
RING,SNAP
5115639260
€ 2.50
5
5157129500
ref: 5
BOOT
5157129500
€ 19.00
6
5157529500
ref: 6
BAND,BOOT
€ 6.50
7
0211204167
ref: 7
SCREW
0211204167
€ 1.00
8
5114716510
ref: 8
BOLT,FORK CYLINDER(10X25)
5114716510
€ 3.50
9
5114841310
ref: 9
GASKET (NAS)
5114841310
€ 2.50
10
5119536220
ref: 10
PIECE,OIL LOCK
5119536220
€ 11.50
11
5114605330
ref: 11
FRONT FORK DAMPER TUBE
5114605330
€ 20.00
12
5111005330
ref: 12
TUBE, INNER
€ 119.00
13
5117105330
ref: 13
SPRING
€ 25.50
14
5135336220
ref: 14
NUT
5135336220
€ 7.00
15
5111736220
ref: 15
O RING
€ 2.00
16
5135139220
ref: 16
CAP
5135139220
€ 12.00
17
5141036230
ref: 17
STEM, STEERING
€ 135.50
18
5162133001
ref: 18
RACE,STEERING OUTER LWR
5162133001
€ 10.00
19
5131005330291
ref: 19
HEAD,STEERING STEM
5131005330291
€ 64.50
20
5135239220
ref: 20
ARROW LEFT51352-3914
BOLT
5135239220
€ 4.00
21
5621127200291
ref: 21
HOLDER,HANDLE UPR
5621127200291
€ 13.50
22
0120408557
ref: 22
BOLT
0120408557
€ 2.50
23
0832121088
ref: 23
LOCK WASHER
0832121088
€ 2.00
24
5155325210
ref: 24
CUSHION,HEAD LAMP BRACKET
5155325210
€ 6.50
25
5155110200
ref: 25
GUIDE,BRACKET
5155110200
€ 5.50
26
5153005330291
ref: 26
BRACKET,HEADLAMP,R
€ 33.00
27
5154005330291
ref: 27
BRACKET,HEADLAMP,L
€ 31.50
28
5145128012
ref: 28
BOLT,FR FORK LWR(12X33)
5145128012
€ 11.50
29
0832121128
ref: 29
WASHER,LOCK 12
0832121128
€ 2.50
30
5145536010
ref: 30
CLIP
5145536010
€ 6.50
31
0211206108
ref: 31
SCREW
0211206108
€ 1.50
32
0832121067
ref: 32
WASHER,LOCK
0832121067
€ 2.50
33
5145305110
ref: 33
CLIP,BRAKE CABLE
5145305110
€ 4.50
34
5187105350291
ref: 34
COVER, FRONT FORK
€ 23.50
35
6821138300
ref: 35
EMBLEM,FR FORK COVER
6821138300
€ 13.50
36
5161133002
ref: 36
LACE,STEERING INNER LWR
5161133002
€ 7.00
37
0611108003
ref: 37
BALL
0611108003
€ 1.50
38
5161120002
ref: 38
RACE,STEERING INNER UPR
5161120002
€ 5.50
39
0611106003
ref: 39
BALL
0611106003
€ 1.50
40
5162128000
ref: 40
RACE,STEERING OUTER UPR
5162128000
€ 7.00
41
5164325001
ref: 41
DUST SEAL,STEERING UPR
5164325001
€ 4.50
42
5163128000
ref: 42
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
43
51900253A1
ref: 43
LOCK ASSEMBLY,STEERING
51900253A1
€ 22.50
44
0211235127
ref: 44
SCREW
€ 1.00
