CRANKCASE (GS125ESZ, GS125EZ)

GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

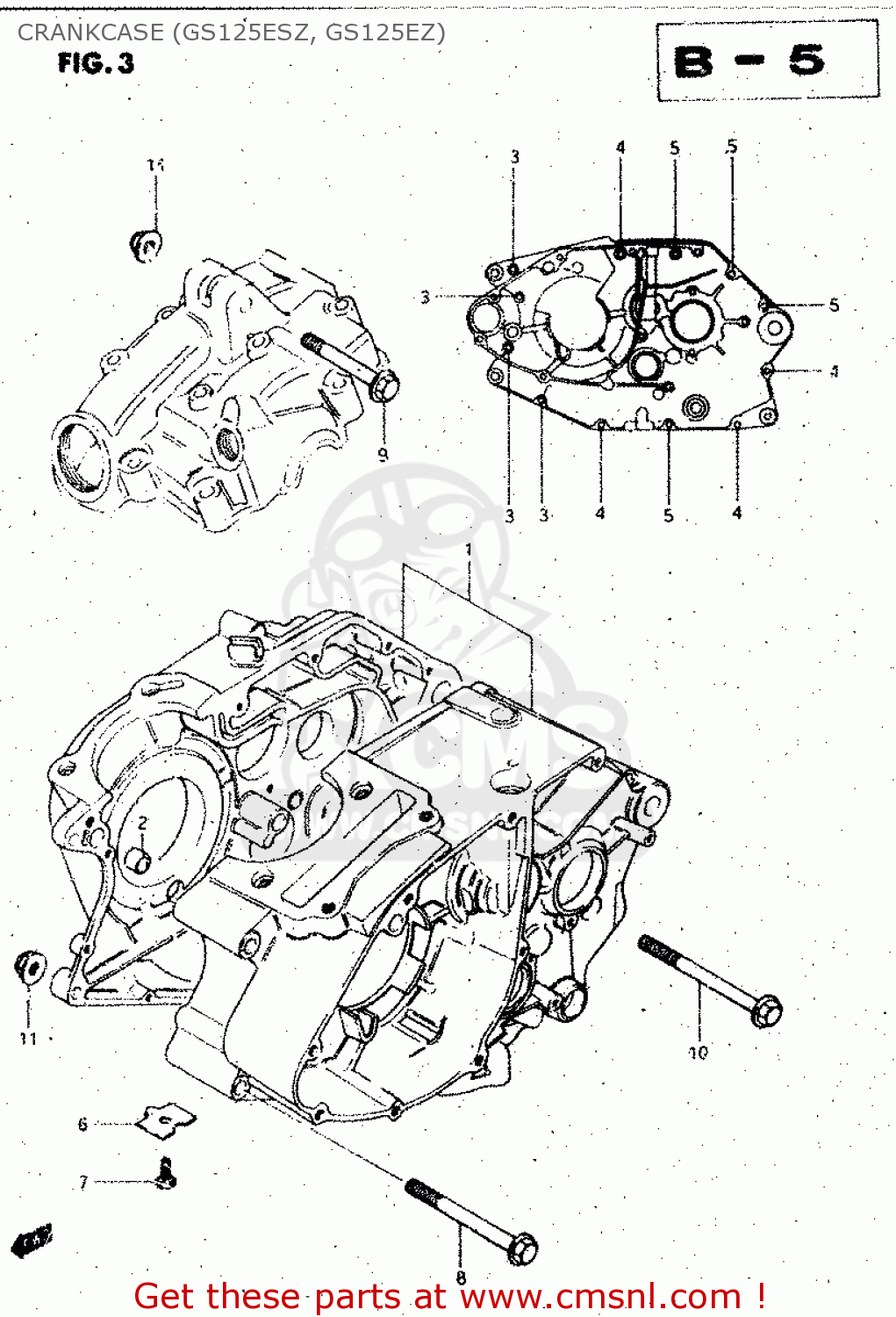

Crankcase (gs125esz, gs125ez) diagram GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CRANKCASE (GS125ESZ, GS125EZ) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
CRANKCASE (GS125ESZ, GS125EZ) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
CRANKCASE (GS125ESZ, GS125EZ) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
prices are in EUR
ref
part #
description
quantity
1
1130005301
ref: 1
CRANKCASE SET
€ 545.50
2
0920613001
ref: 2
PIN
0920613001
€ 2.50
3
0154706557
ref: 3
BOLT
0154706557
€ 2.50
4
0154706607
ref: 4
BOLT
0154706607
€ 2.50
5
0154706757
ref: 5
BOLT
0154706757
€ 2.50
6
1131905200
ref: 6
PLATE,OIL GALLERY PLUG
1131905200
€ 2.50
7
0110706107
ref: 7
BOLT
€ 2.00
8
0910308016
ref: 8
BOLT(8X80)
0910308016
€ 8.00
9
0151708508
ref: 9
BOLT
0151708508
€ 3.50
10
0151708858
ref: 10
BOLT
€ 3.50
11
0831931087
ref: 11
NUT
0831931087
€ 2.50
