MAGNETO (GS125Z/D/UR E71)

GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

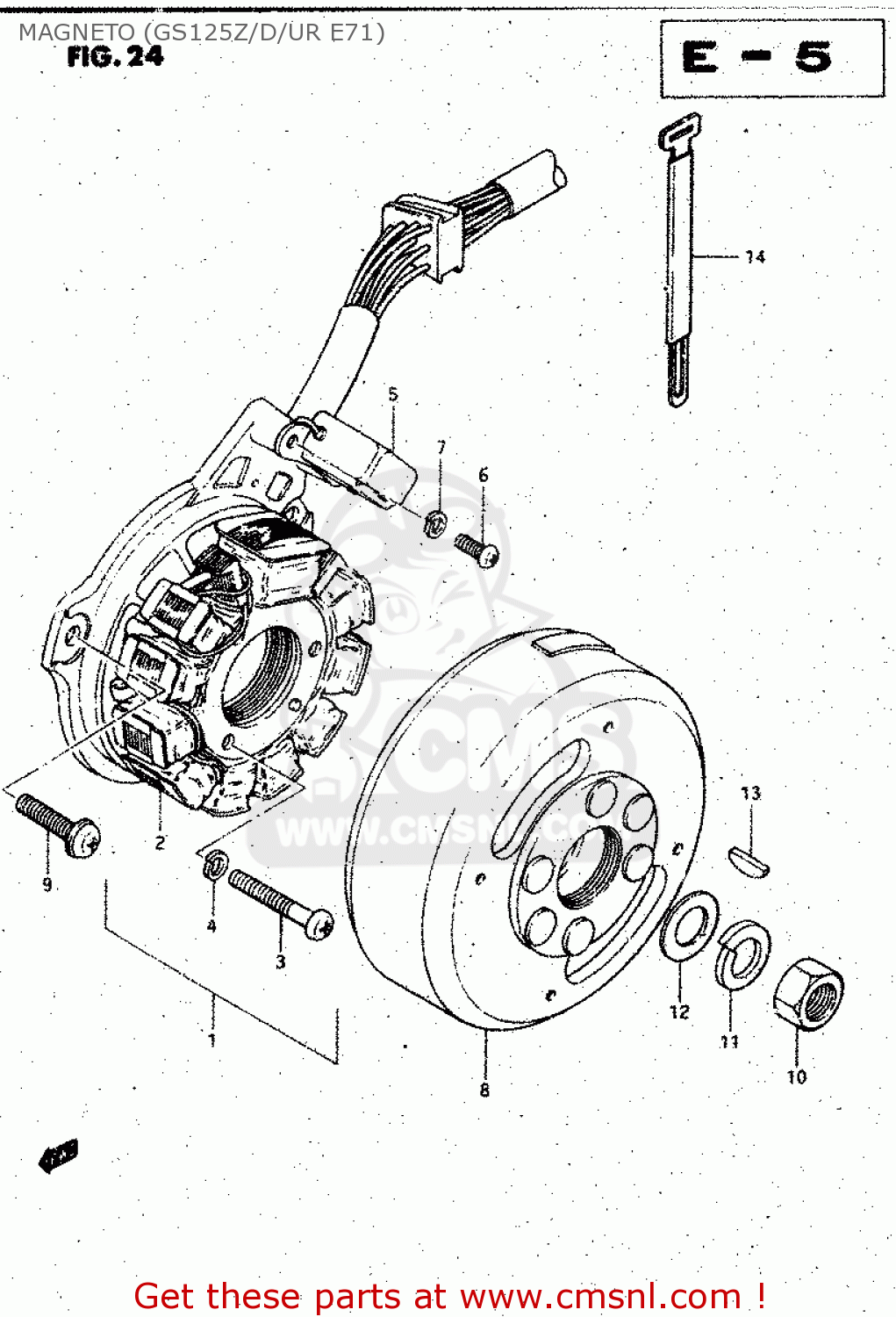

Magneto (gs125z/d/ur e71) diagram GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

MAGNETO (GS125Z/D/UR E71) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
MAGNETO (GS125Z/D/UR E71) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
MAGNETO (GS125Z/D/UR E71) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
prices are in EUR
ref
part #
description
quantity
1
3210105220
ref: 1
STARTER ASSY
€ 397.50
2
3212005220
ref: 2
COIL,STARTER
€ 266.50
3
0211205303
ref: 3
SCREW
0211205303
€ 1.50
4
0832101057
ref: 4
WASHER,LOCK
0832101057
€ 2.00
5
3215022A01
ref: 5
COIL,PICK UP
3215022A01
€ 66.50
6
0211204123
ref: 6
SCREW
0211204123
€ 1.50
7
0832101043
ref: 7
WASHER,LOCK
0832101043
€ 2.00
8
3210205220
ref: 8
ROTOR ASSY
€ 286.00
9
0214205123
ref: 9
SCREW 5X12
0214205123
€ 1.50
10
0831610103
ref: 10
NUT
0831610103
€ 2.00
11
0832121107
ref: 11
WASHER,LOCK,10
0832121107
€ 2.00
12
0832221108
ref: 12
WASHER
0832221108
€ 2.50
13
0834131039
ref: 13
KEY
0834131039
€ 2.00
14-1
0940711301
ref: 14-1
MODEL Z/D
CLAMP L:110
€ 6.00
14-2
0940709301
ref: 14-2
E71
CLAMP
€ 6.00
