REAR FENDER (MODEL Z/D/F/K/L/M)

GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

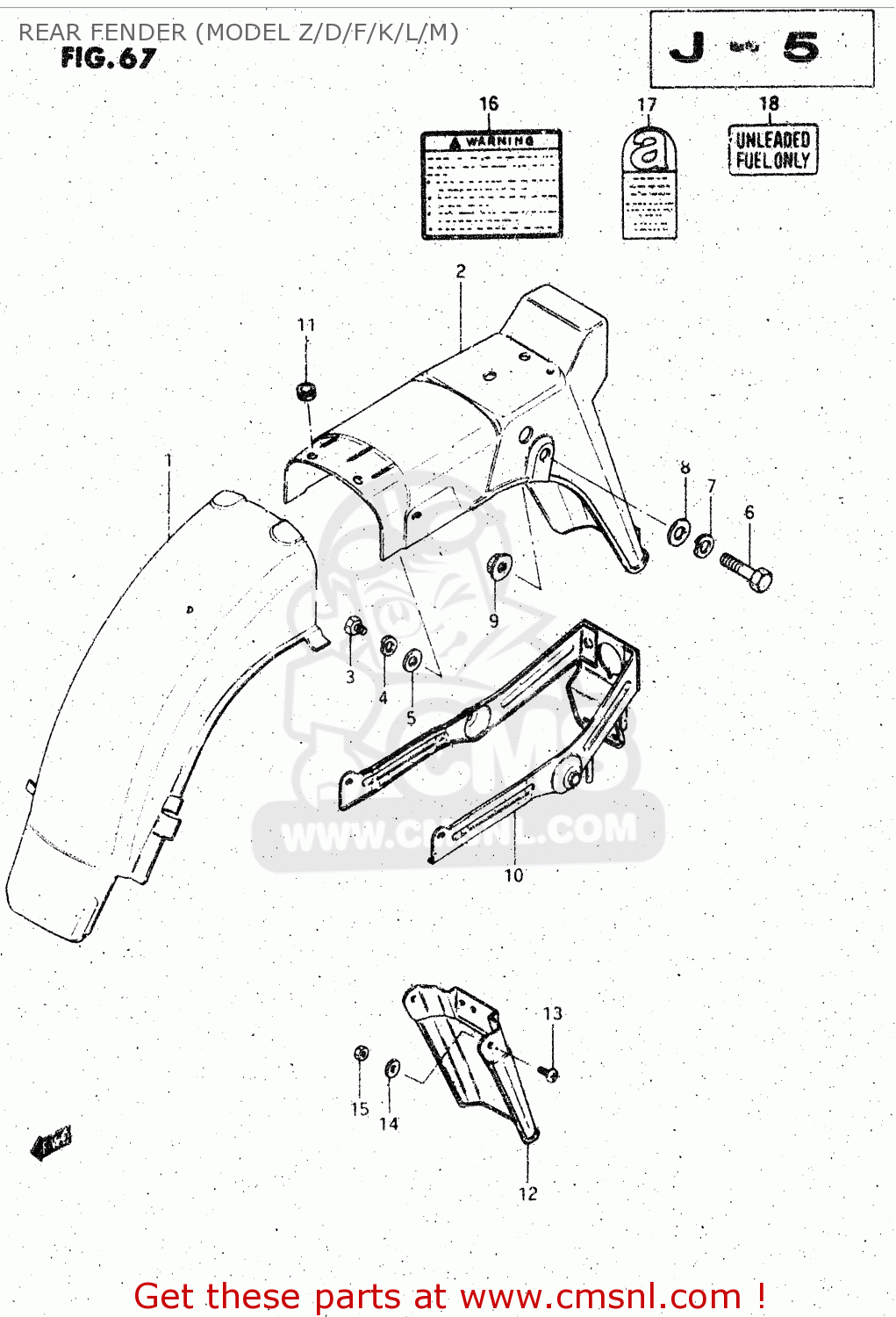

Rear fender (model z/d/f/k/l/m) diagram GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

REAR FENDER (MODEL Z/D/F/K/L/M) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

REAR FENDER (MODEL Z/D/F/K/L/M) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1

6311205302
ref: 1

BODY,FR

€ 44.00

2-1

6311305350
ref: 2-1

BODY,RR FENDER RR

€ 58.50

2-2

6311305360
ref: 2-2
E15,E18

FENDER, REAR

€ 71.50

2-3

6311305370
ref: 2-3
E39

FENDER, REAR

€ 0.00

3

0110706167
ref: 3

BOLT

€ 3.00

4

0832121067
ref: 4

WASHER,LOCK

€ 2.50

5

0832221067
ref: 5

WASHER

€ 2.00

6

0110708555
ref: 6

BOLT 8X55

€ 3.00

7

0832121084
ref: 7

WASHER,LOCK,8.

€ 2.50

8

0832211084
ref: 8

WASHER

€ 1.50

9

0831616088
ref: 9

NUT

€ 2.50

10

6312005350
ref: 10

REINFORCEMENT,RR FENDER

€ 26.00

11

0932005006
ref: 11

CUSHION

€ 4.00

12

6331105350
ref: 12
E15,E18

EXTENSION, REAR

€ 23.50

13

0214204127
ref: 13
E15,E18

SCREW

€ 2.00

14

0832221047
ref: 14
E15,E18

WASHER 4MM

€ 2.00

15

0831011047
ref: 15
E15,E18

NUT

€ 2.00

16-1

6831940C00
ref: 16-1

LABEL

€ 8.00

16-2

6831940C20
ref: 16-2
E39

LABEL, WARNING SAFETY

€ 8.00

16-3

6831940C30
ref: 16-3
E4

LABEL, WARNING SAFETY

€ 8.50

16-4

6831940C40
ref: 16-4
E34

LABEL, WARNING SAFETY

€ 8.00

17

1196782000
ref: 17
E2

LABEL,ASBESTOS WARNING

€ 2.00

18

8693273060
ref: 18
E24

LABEL,FUEL CAUTION

€ 4.00

19-1

990110533104V
ref: 19-1
MODEL D

MANUAL, OWNER'S

€ 0.00

19-2

990110533401A
ref: 19-2
MODEL K

MANUAL, OWNER'S

€ 0.00

19-3

990110533501A
ref: 19-3
MODEL L

MANUAL, OWNER'S

€ 0.00

19-4

990110533601A
ref: 19-4
MODEL M DRAWING NOT

MANUAL, OWNER'S

€ 0.00
