CRANKCASE COVER (GS125ESZ/EZ/ESD/ESF/ESK/ESL/ESM/ESR)

GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

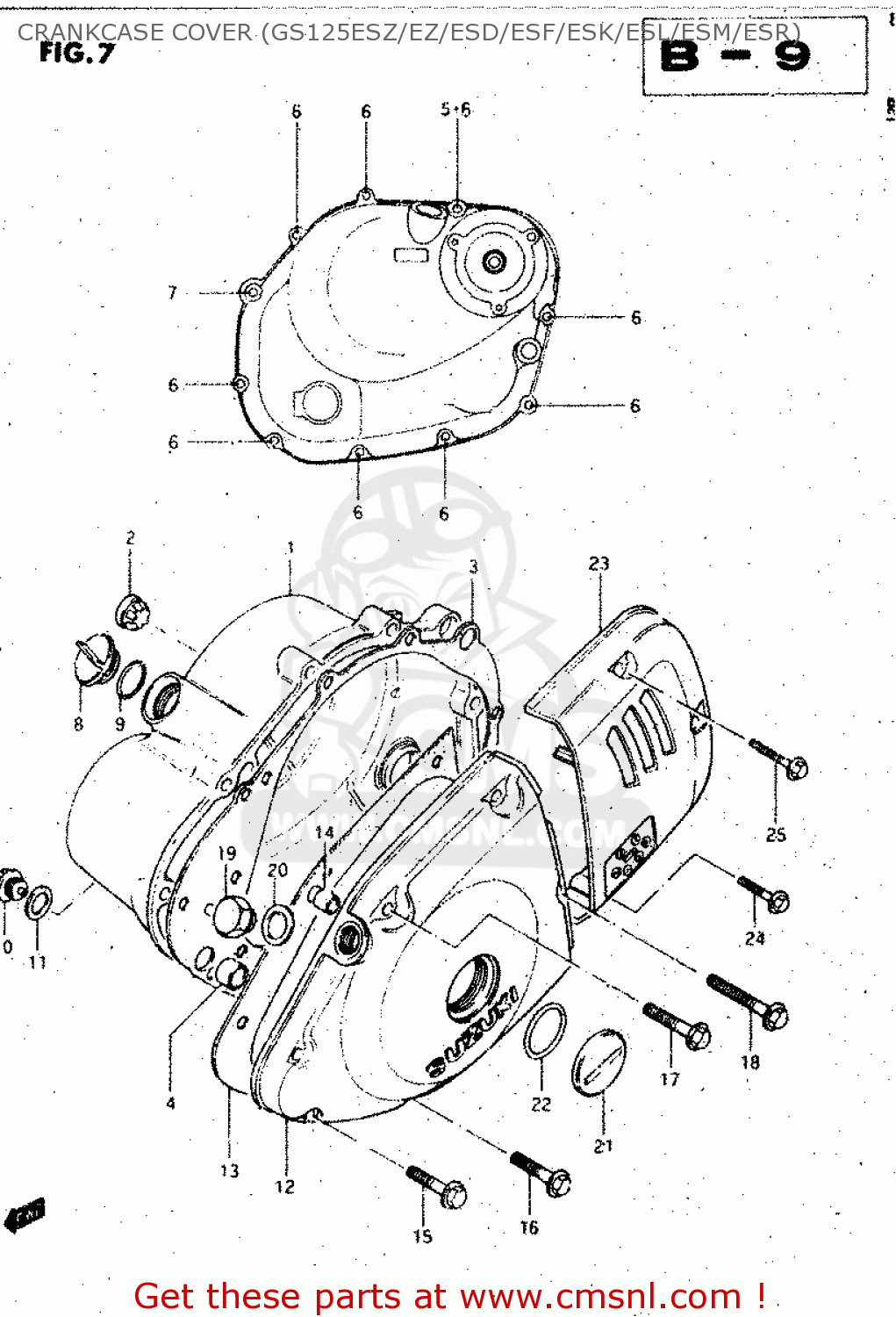

Crankcase cover (gs125esz/ez/esd/esf/esk/esl/esm/esr) diagram GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CRANKCASE COVER (GS125ESZ/EZ/ESD/ESF/ESK/ESL/ESM/ESR) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
CRANKCASE COVER (GS125ESZ/EZ/ESD/ESF/ESK/ESL/ESM/ESR) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
CRANKCASE COVER (GS125ESZ/EZ/ESD/ESF/ESK/ESL/ESM/ESR) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
prices are in EUR
ref
part #
description
quantity
1
1134005302
ref: 1
COVER,CLUTCH
€ 112.50
2
1197145010
ref: 2
LENS,OIL LEVEL CHECK
1197145010
€ 13.00
3
1148205311
ref: 3
GASKET,CLUTCH COVER (NAS)
1148205311
€ 16.00
4
0421113189
ref: 4
ARROW LEFT09206-1300
PIN
0421113189
€ 2.50
5-1
0916806023
ref: 5-1
MODEL Z/D/F/K/L/M
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
5-2
0916806024
ref: 5-2
MODEL R
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
6
0154706307
ref: 6
BOLT
0154706307
€ 2.50
7
0154706457
ref: 7
BOLT
0154706457
€ 2.50
8-1
0925920009
ref: 8-1
MODEL Z/D/F/K/L/M
PLUG
0925920009
€ 6.50
8-2
0925920018
ref: 8-2
MODEL R
PLUG (20X10)
€ 6.50
9
0928017003
ref: 9
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
10
0924714026
ref: 10
ARROW LEFT09247-1401
PLUG(14X12)
0924714026
€ 3.50
11
0916814002
ref: 11
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
12
1135105302
ref: 12
COVER,MAGNETO
1135105302
€ 100.00
13
1148305311
ref: 13
GASKET,MAGNETO COVER (NAS)
1148305311
€ 8.50
14
0421109129
ref: 14
PIN
0421109129
€ 2.00
15
0154706307
ref: 15
BOLT
0154706307
€ 2.50
16
0154706357
ref: 16
BOLT
0154706357
€ 2.50
17
0154706407
ref: 17
BOLT
0154706407
€ 2.50
18
0154706507
ref: 18
BOLT
0154706507
€ 2.50
19
0924712104
ref: 19
PLUG,12X9
0924712104
€ 2.50
20
0916812002
ref: 20
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
21
0925926011
ref: 21
ARROW LEFT09259-2600
PLUG(26X9)
0925926011
€ 8.50
22
0928022008
ref: 22
O RING(D:3.1,ID:22.7)
0928022008
€ 2.50
23
1136105301
ref: 23
COVER,ENGINE SPROCKET
1136105301
€ 22.50
24
0154705357
ref: 24
BOLT
0154705357
€ 2.50
25
0154705257
ref: 25
BOLT
0154705257
€ 2.00
