FRONT FORK (GS125UR E71)

GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

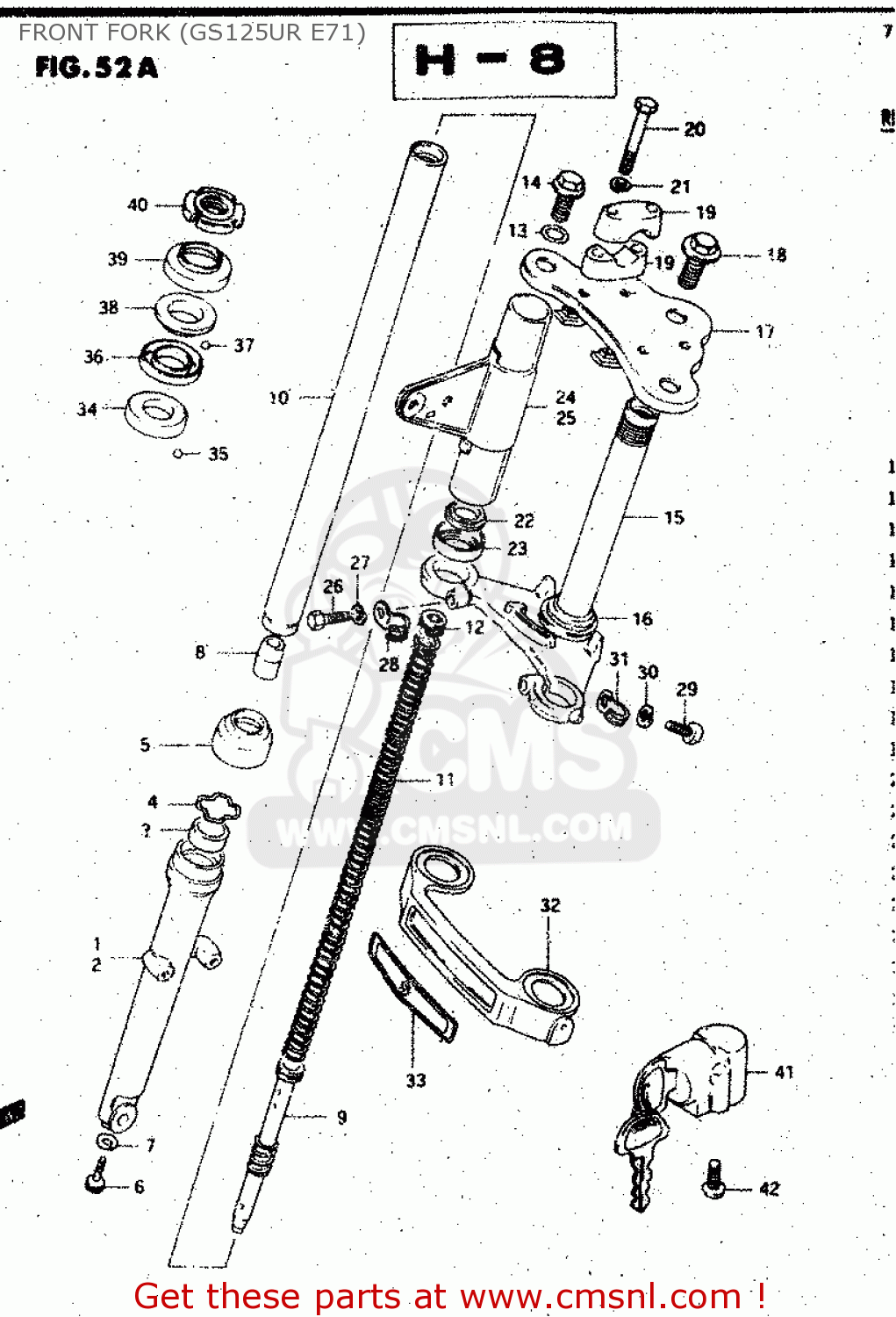

Front fork (gs125ur e71) diagram GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

FRONT FORK (GS125UR E71) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
FRONT FORK (GS125UR E71) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
FRONT FORK (GS125UR E71) GS125 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
prices are in EUR
ref
part #
description
quantity
0
51100053A0291
ref: 0
FRONT FORK ASSY
€ 0.00
1
5113036500
ref: 1
TUBE,OUTER,R
5113036500
€ 88.50
2
5114005360
ref: 2
TUBE,OUTER,L
€ 0.00
3
5115329400
ref: 3
OIL SEAL,FRONT FORK
5115329400
€ 11.00
4
5115639260
ref: 4
RING,SNAP
5115639260
€ 2.50
5
5117339610
ref: 5
SEAL,DUST
5117339610
€ 10.00
6
5114716510
ref: 6
BOLT,FORK CYLINDER(10X25)
5114716510
€ 3.50
7
5114841310
ref: 7
GASKET (NAS)
5114841310
€ 2.50
8
5119536220
ref: 8
PIECE,OIL LOCK
5119536220
€ 11.50
9
5114605330
ref: 9
FRONT FORK DAMPER TUBE
5114605330
€ 20.00
10
5111039680
ref: 10
TUBE,FORK INNER
5111039680
€ 119.00
11
5117105330
ref: 11
SPRING
€ 25.50
12
5135336220
ref: 12
NUT
5135336220
€ 7.00
13
0928022001
ref: 13
O RING(D:2.4,ID:21.8)
0928022001
€ 2.00
14
5135139221
ref: 14
CAP,FORK
5135139221
€ 12.00
15
5141036231
ref: 15
STEM,STEERING
€ 135.50
16
5162133001
ref: 16
RACE,STEERING OUTER LWR
5162133001
€ 10.00
17
5131005330291
ref: 17
HEAD,STEERING STEM
5131005330291
€ 64.50
18
5135239220
ref: 18
BOLT
5135239220
€ 4.00
19
5621127200291
ref: 19
HOLDER,HANDLE UPR
5621127200291
€ 13.50
20
0120408557
ref: 20
BOLT
0120408557
€ 2.50
21
0832101087
ref: 21
WASHER,LOCK
0832101087
€ 2.00
22
5155325210
ref: 22
CUSHION,HEAD LAMP BRACKET
5155325210
€ 6.50
23
5155110200
ref: 23
GUIDE,BRACKET
5155110200
€ 5.50
24
5153005330291
ref: 24
BRACKET,HEADLAMP,R
€ 33.00
25
5154005330291
ref: 25
BRACKET,HEADLAMP,L
€ 31.50
26
5145128012
ref: 26
BOLT,FR FORK LWR(12X33)
5145128012
€ 11.50
27
0832101127
ref: 27
WASHER,LOCK
0832101127
€ 2.50
28
5145536010
ref: 28
CLIP
5145536010
€ 6.50
29
0211206107
ref: 29
SCREW
0211206107
€ 1.50
30
0832101067
ref: 30
WASHER,LOCK
0832101067
€ 2.50
31
5145305110
ref: 31
CLIP,BRAKE CABLE
5145305110
€ 4.50
32
5187105351291
ref: 32
COVER,FR FORK
€ 23.50
33
6821138300
ref: 33
EMBLEM,FR FORK COVER
6821138300
€ 13.50
34
5161133002
ref: 34
LACE,STEERING INNER LWR
5161133002
€ 7.00
35
0611108003
ref: 35
BALL
0611108003
€ 1.50
36
5161120002
ref: 36
RACE,STEERING INNER UPR
5161120002
€ 5.50
37
0611106003
ref: 37
BALL
0611106003
€ 1.50
38
5162128000
ref: 38
RACE,STEERING OUTER UPR
5162128000
€ 7.00
39
5164325001
ref: 39
DUST SEAL,STEERING UPR
5164325001
€ 4.50
40
5163128000
ref: 40
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
41
5191025311
ref: 41
LOCK ASSY,STEERING
5191025311
€ 22.50
42
0211235127
ref: 42
SCREW
€ 1.00
