CARBURETOR (GS125ESK/ESL E24, MODEL M/R)

GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

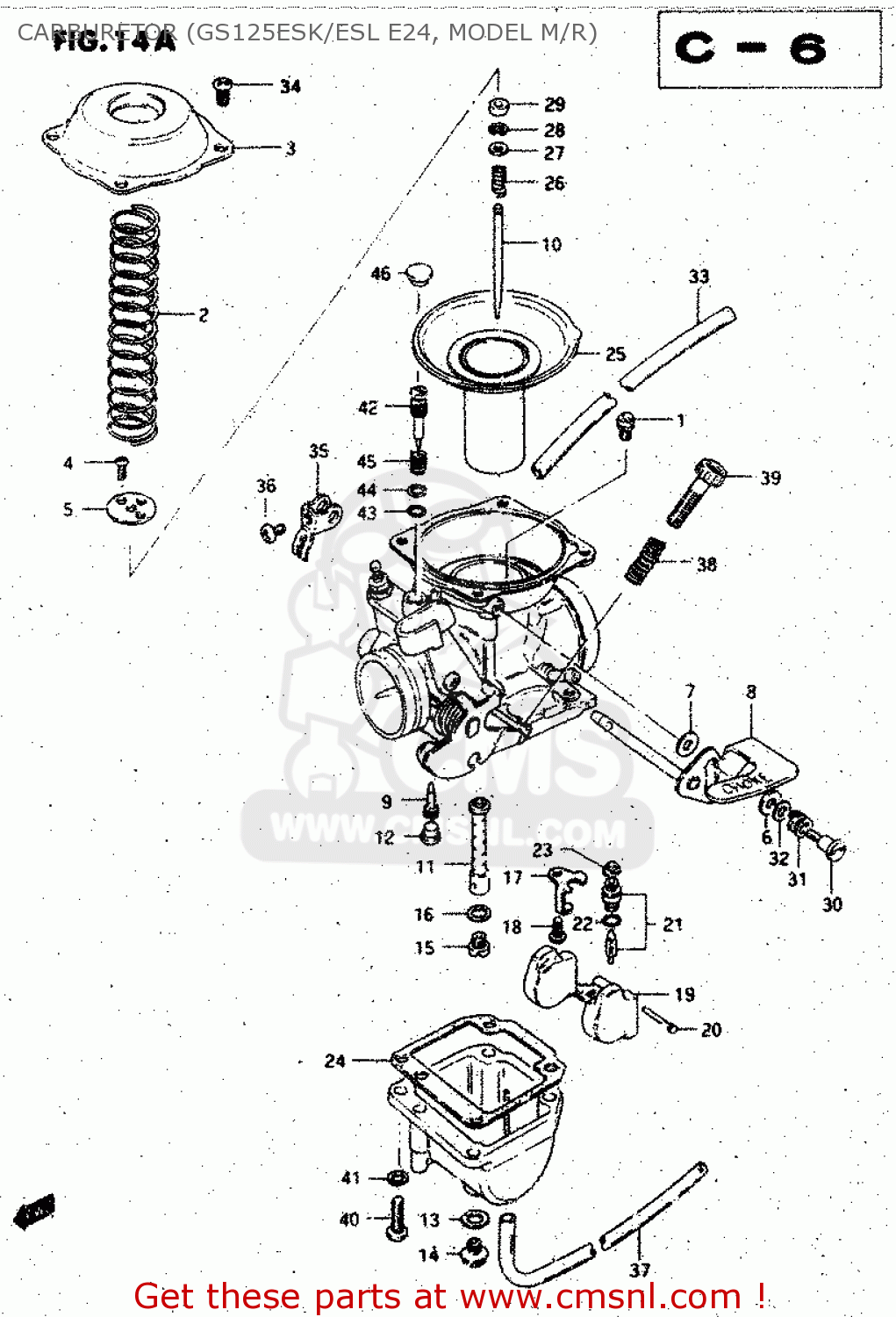

Carburetor (gs125esk/esl e24, model m/r) diagram GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

CARBURETOR (GS125ESK/ESL E24, MODEL M/R) GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)
CARBURETOR (GS125ESK/ESL E24, MODEL M/R) GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)
CARBURETOR (GS125ESK/ESL E24, MODEL M/R) GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)
prices are in EUR
ref
part #
description
quantity
0
1320005312
ref: 0
ARROW LEFT13200-0531
CARBURETOR ASSY
€ 332.50
0
1320005313
ref: 0
NF41B-100001~ NF41D-
CARBURETOR ASSY
€ 332.50
1
0949136005
ref: 1
JET,MAIN(180)
0949136005
€ 9.50
2
1350333200
ref: 2
SPRING
1350333200
€ 8.50
3
1350233210
ref: 3
COVER
€ 19.50
4
0211233083
ref: 4
SCREW
€ 2.00
5
1338937400
ref: 5
PLATE
1338937400
€ 5.50
6
1343105300
ref: 6
PACKING (NAS)
1343105300
€ 5.50
7
1343244110
ref: 7
WASHER,STARTER LEVER (4.1X12X0.8)
1343244110
€ 2.00
8
1341005300
ref: 8
SHAFT ASSY,STARTER
€ 19.00
9
0949235008
ref: 9
JET,PILOT(35)
0949235008
€ 7.50
10
1338305310
ref: 10
NEEDLE,JET
1338305310
€ 15.00
11
0949400370
ref: 11
JET,NEEDLE(P-2)
0949400370
€ 21.00
12
1335744080
ref: 12
PLUG,NEEDLE JET
1335744080
€ 4.50
13
1324644080
ref: 13
GASKET (NAS)
1324644080
€ 3.50
14
1324744080
ref: 14
PLUG,DRAIN
1324744080
€ 9.50
15
0949120012
ref: 15
JET,MAIN(102.5)
0949120012
€ 8.50
16
1333244080
ref: 16
WASHER,NEEDLE NOZZLE
€ 2.50
17-1
1337311400
ref: 17-1
PLATE,NEEDLE VALVE FITING
1337311400
€ 7.00
17-2
1337339110
ref: 17-2
NF41B-100001~ NF41D-
PLATE
1337339110
€ 6.50
18
0211204066
ref: 18
SCREW
€ 2.00
19
1325005300
ref: 19
FLOAT
1325005300
€ 30.00
20
1325492311
ref: 20
PIN,FLOAT
1325492311
€ 2.00
21
1337044500
ref: 21
VALVE ASSY,NEEDLE
1337044500
€ 40.50
22
1337444080
ref: 22
O-RING,NEEDLE VALVE
1337444080
€ 6.00
23
1337684110
ref: 23
FILTER
€ 6.50
24
1325105400
ref: 24
ARROW LEFT13251-3320
GASKET,FLOAT CHAMBER (NAS)
1325105400
€ 12.00
25-1
1350033200
ref: 25-1
DIAPHRAGM ASSEMBLY
1350033200
€ 203.50
25-2
1350005400
ref: 25-2
NF41B-100001~ NF41D-
DIAPHRAGM ASSEMBLY
€ 203.50
26
1338844030
ref: 26
SPRING
1338844030
€ 6.00
27
1338244030
ref: 27
WASHER
1338244030
€ 3.50
28
1339410010
ref: 28
CLIP
1339410010
€ 4.50
29
1338747010
ref: 29
RING
1338747010
€ 7.50
30
1343833110
ref: 30
SCREW
1343833110
€ 5.50
31
1342643010
ref: 31
SPRING
1342643010
€ 4.50
32
1361543010
ref: 32
WASHER,STARTER SHAFT
1361543010
€ 2.50
33
1368422A00
ref: 33
L:550ARROW RIGHT300
HOSE
€ 13.00
34
0211205086
ref: 34
SCREW
€ 2.00
35
1342205300
ref: 35
LEVER
€ 0.00
36
1360531210
ref: 36
SCREW
1360531210
€ 3.00
37
1368337420
ref: 37
L:500ARROW RIGHT350
HOSE
€ 5.50
38
1326837420
ref: 38
SPRING,THROTTLE SCREW
1326837420
€ 3.50
39
1326737100
ref: 39
SCREW,THROTTLE STOP
€ 9.00
40
0211204166
ref: 40
SCREW
€ 1.00
41
0832121046
ref: 41
LOCK WASHER
0832121046
€ 2.00
42
1327945400
ref: 42
SCREW,PILOT
1327945400
€ 8.00
43
1329529900
ref: 43
O RING,PILOT AIR SCREW
1329529900
€ 4.00
44
1329129900
ref: 44
WASHER
1329129900
€ 2.00
45
1326847070
ref: 45
SPRING
1326847070
€ 5.00
46
1335736A00
ref: 46
PLUG
1335736A00
€ 4.50
