FRONT MASTER CYLINDER (MODEL K/L/M/R)

GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

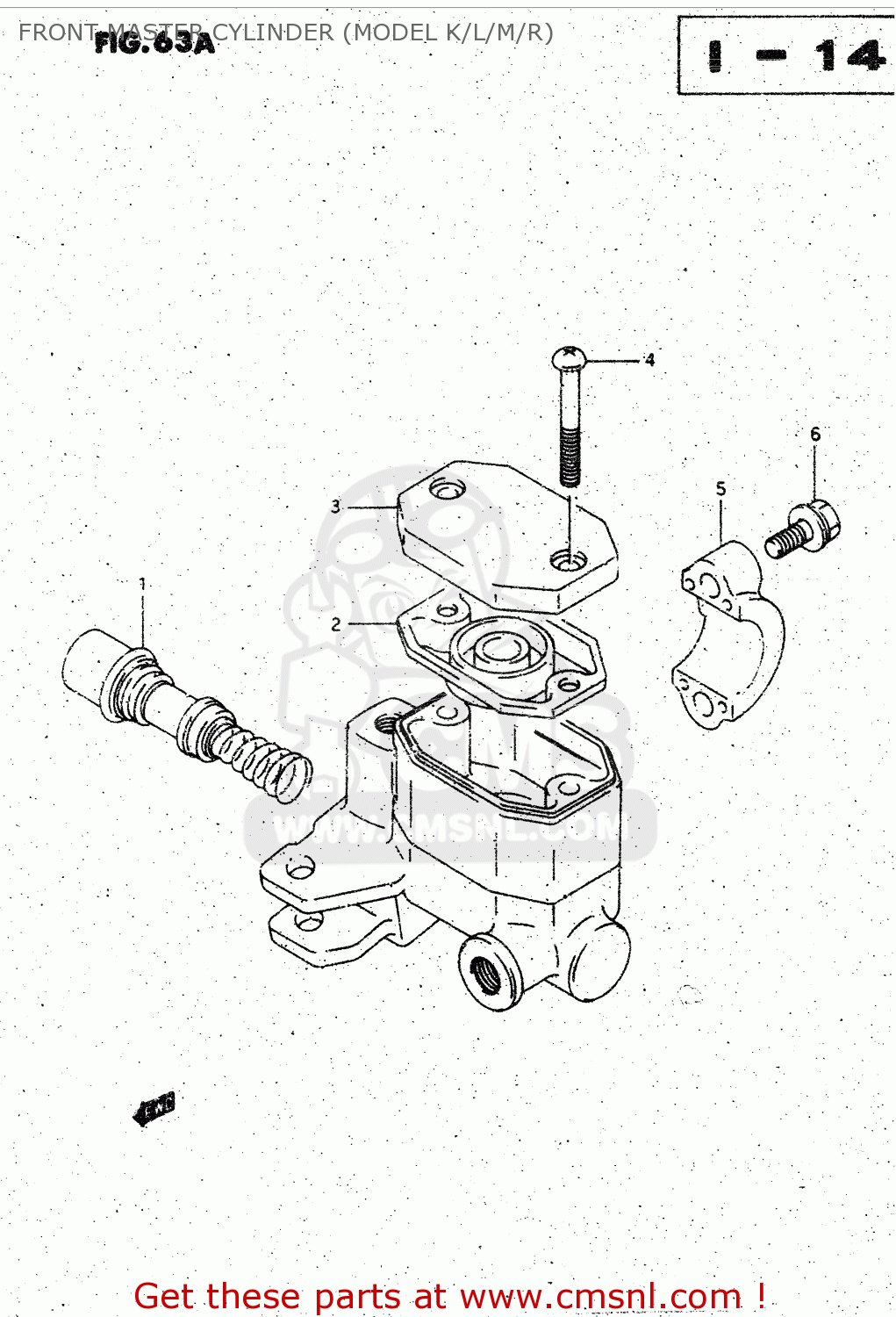

Front master cylinder (model k/l/m/r) diagram GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

FRONT MASTER CYLINDER (MODEL K/L/M/R) GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)
FRONT MASTER CYLINDER (MODEL K/L/M/R) GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)
FRONT MASTER CYLINDER (MODEL K/L/M/R) GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)
prices are in EUR
ref
part #
description
quantity
0
5960005350
ref: 0
CYLINDER ASSY,FR MASTER
€ 188.00
1
5960036810
ref: 1
PISTON & CUP SET
5960036810
€ 38.50
2
5966736500
ref: 2
DIAPHRAGM
5966736500
€ 8.00
3
5966936500
ref: 3
CAP,RESERVOIR
5966936500
€ 13.50
4
5969136500
ref: 4
SCREW
5969136500
€ 1.50
5
5967105300
ref: 5
HOLDER
5967105300
€ 13.00
6
0155006253
ref: 6
BOLT
0155006253
€ 2.50
