MAGNETO (GS125ESZ/EZ/ESD/ESF/ESK/ESL/ESM/ESR)

GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

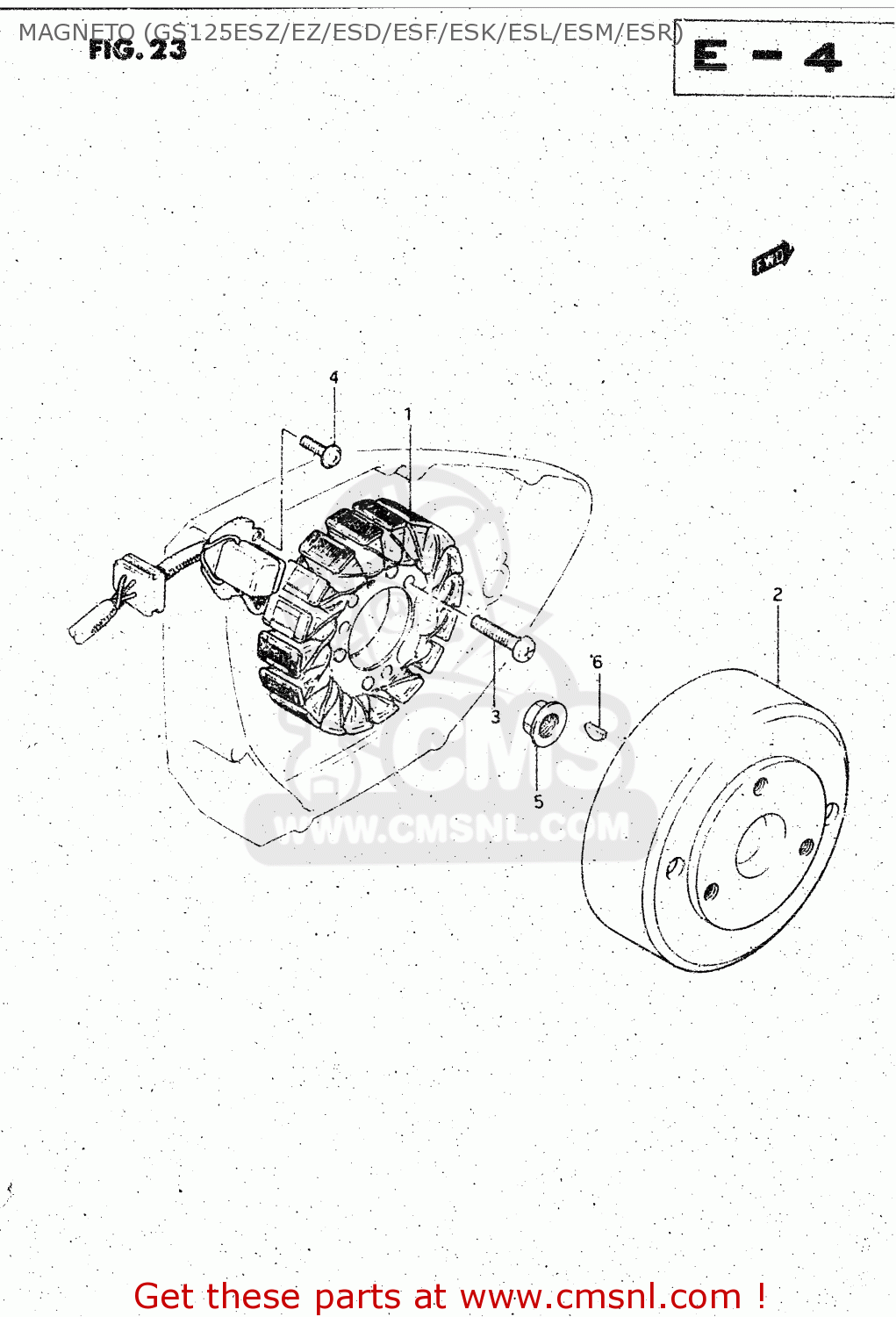

Magneto (gs125esz/ez/esd/esf/esk/esl/esm/esr) diagram GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

MAGNETO (GS125ESZ/EZ/ESD/ESF/ESK/ESL/ESM/ESR) GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)
MAGNETO (GS125ESZ/EZ/ESD/ESF/ESK/ESL/ESM/ESR) GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)
MAGNETO (GS125ESZ/EZ/ESD/ESF/ESK/ESL/ESM/ESR) GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)
prices are in EUR
ref
part #
description
quantity
1
3210105300
ref: 1
STARTER ASSY
3210105300
€ 602.50
2
3210205300
ref: 2
ROTOR,FLYWHEEL
3210205300
€ 341.00
3
0211205253
ref: 3
SCREW
0211205253
€ 1.50
4-1
0215204108
ref: 4-1
MODEL Z/D
SCREW
€ 1.50
4-2
0215204128
ref: 4-2
MODEL F/K/L/M
SCREW
0215204128
€ 2.00
4-3
0214204123
ref: 4-3
MODEL R
SCREW
€ 1.50
5
0831610103
ref: 5
NUT
0831610103
€ 2.00
6
0834131039
ref: 6
KEY
0834131039
€ 2.00
