FRONT FENDER - HEADLAMP HOUSING

GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

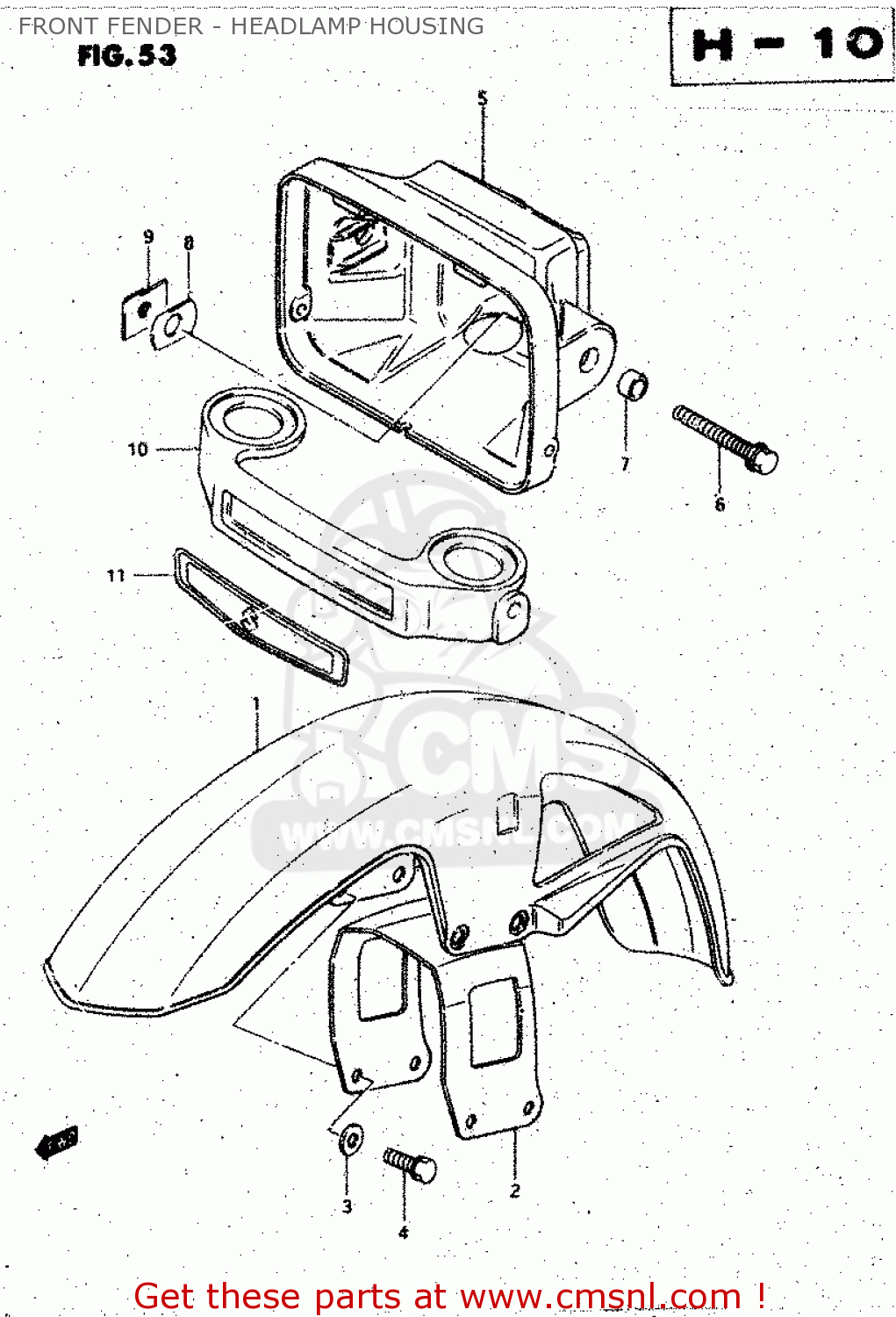

Front fender - headlamp housing diagram GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

FRONT FENDER - HEADLAMP HOUSING GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

FRONT FENDER - HEADLAMP HOUSING GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

prices are in EUR

ref

part #

description

quantity

1-1

5311105350019
ref: 1-1
GS125ESZ/EZ/ESD/ESF/

FENDER,FR

€ 91.50

1-2

531110535007P
ref: 1-2
GS125ESZ/EZ/ESD/ESF/

FENDER, FRONT (RED)

€ 97.00

1-3

531110535004Y
ref: 1-3
GS125ESZ/EZ/ESD/ESF

FENDER, FRONT (BLUE)

€ 98.00

1-4

531110535014L
ref: 1-4
GS125ESD/ESF

FENDER, FRONT (WHITE)

€ 98.00

1-5

531110535022R
ref: 1-5
GS125ESK/ESL

FENDER, FRONT (WHITE)

€ 98.00

1-6

53111053500NH
ref: 1-6
GS125ESL/ESM/ESR

FENDER,FR

€ 97.00

1-7

531110535038K
ref: 1-7
GS125ESM

FENDER, FRONT (BLUE)

€ 98.00

1-8

53111053500NF
ref: 1-8
GS125ESM/ESR

FENDER,FR

€ 0.00

1-9

5311105360019
ref: 1-9
GS125Z/D,UR E7

FENDER,FR

€ 0.00

1-10

531110536007P
ref: 1-10
GS125Z/D

FENDER, FRONT (RED)

€ 0.00

1-11

531110536004Y
ref: 1-11
GS125Z/D

FENDER, FRONT (BLUE)

€ 0.00

1-12

531110536014L
ref: 1-12
GS125D

FENDER, FRONT (WHITE)

€ 0.00

1-13

53111053600NH
ref: 1-13
GS125UR E71

FENDER, FRONT (RED)

€ 111.50

1-14

53111053600NF
ref: 1-14
GS125UR E71

FENDER,FR

€ 0.00

2

5311205350
ref: 2

BRACE,FR FENDER

€ 12.50

3

0916908034
ref: 3

WASHER

€ 2.00

4

0157008163
ref: 4

BOLT, UPPER

€ 2.00

5

5181139300
ref: 5

HOUSING,HEADLAMP

€ 38.50

6

0126408307
ref: 6

BOLT

€ 0.00

7

0918008030
ref: 7

SPACER (8.8X12X7)

€ 3.50

8

0932912002
ref: 8

CUSHION

€ 3.00

9

5186045000
ref: 9

PLATE,HEADLAMP HOUSING

€ 2.00

10

5187105351291
ref: 10
GS125EZE17 GS125Z/D/

COVER,FR FORK

€ 23.50

11

6821138300
ref: 11
GS125EZE17 GS125E/D/

EMBLEM,FR FORK COVER

€ 13.50
