CLUTCH

GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

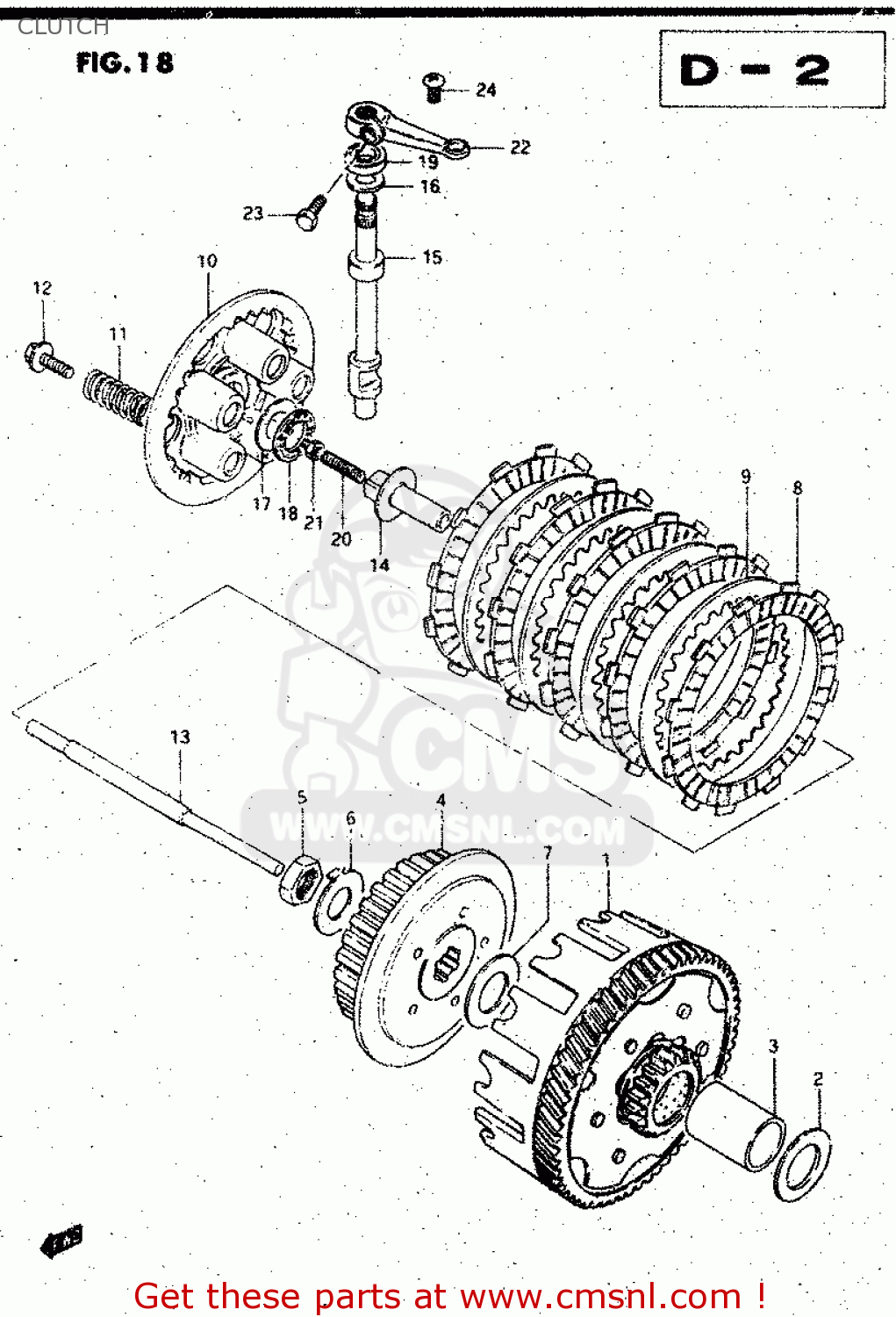

Clutch diagram GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

CLUTCH GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

CLUTCH GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

prices are in EUR

ref

part #

description

quantity

1

2120005853
ref: 1
NT:20/59

GEAR ASSY,PRI DRIVEN(NT:59)

€ 175.00

2

0821120353
ref: 2

WASHER

€ 2.50

3

0918020010
ref: 3
MODEL Z

SPACER

€ 11.50

4

2141105200
ref: 4

HUB,CLUTCH SLEEVE

€ 47.00

5

0914016014
ref: 5

NUT

€ 4.50

6

0916916003
ref: 6

WASHER

€ 2.00

7

0821120352
ref: 7

WASHER

€ 3.00

8

2144113A01
ref: 8

PLATE,CLUTCH DRIVE(T:3.0) (NAS)

€ 8.50

9

2145119A00
ref: 9
ARROW LEFT21451-2800

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

10

2146214102
ref: 10

PLATE,CLUTCH PRESSURE

€ 16.00

11

0944019014
ref: 11

SPRING

€ 4.50

12

0911605003
ref: 12

BOLT 5X16

€ 2.50

13

2311005202
ref: 13

ROD,CLUTCH PUSH

€ 11.00

14-1

2312105200
ref: 14-1
MODEL Z/D

PEACE

€ 17.00

14-2

2312138200
ref: 14-2
MODEL F/K/L/M/R

PIECE,CLUTCH PUSH

€ 17.00

15

2312205200
ref: 15

CAMSHAFT,CLUTCH RELEASE

€ 31.00

16

0821110201
ref: 16

WASHER,THRUST

€ 2.00

17

0916015045
ref: 17

WASHER(15.5X28X1)

€ 4.00

18

0926315003
ref: 18

BEARING(15X28X2)

€ 7.00

19

0928210012
ref: 19
ARROW LEFT09282-1000

SEAL,OIL(10X20X6)

€ 7.50

20

0913406010
ref: 20

SCREW(6X25)

€ 3.00

21

0914006023
ref: 21

NUT

€ 2.00

22

2327146010
ref: 22

ARM,CLUTCH RELEASE

€ 14.50

23

0150006167
ref: 23

BOLT

€ 3.00

24

0214206103
ref: 24

SCREW 6X10

€ 2.00
