SEAT

GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

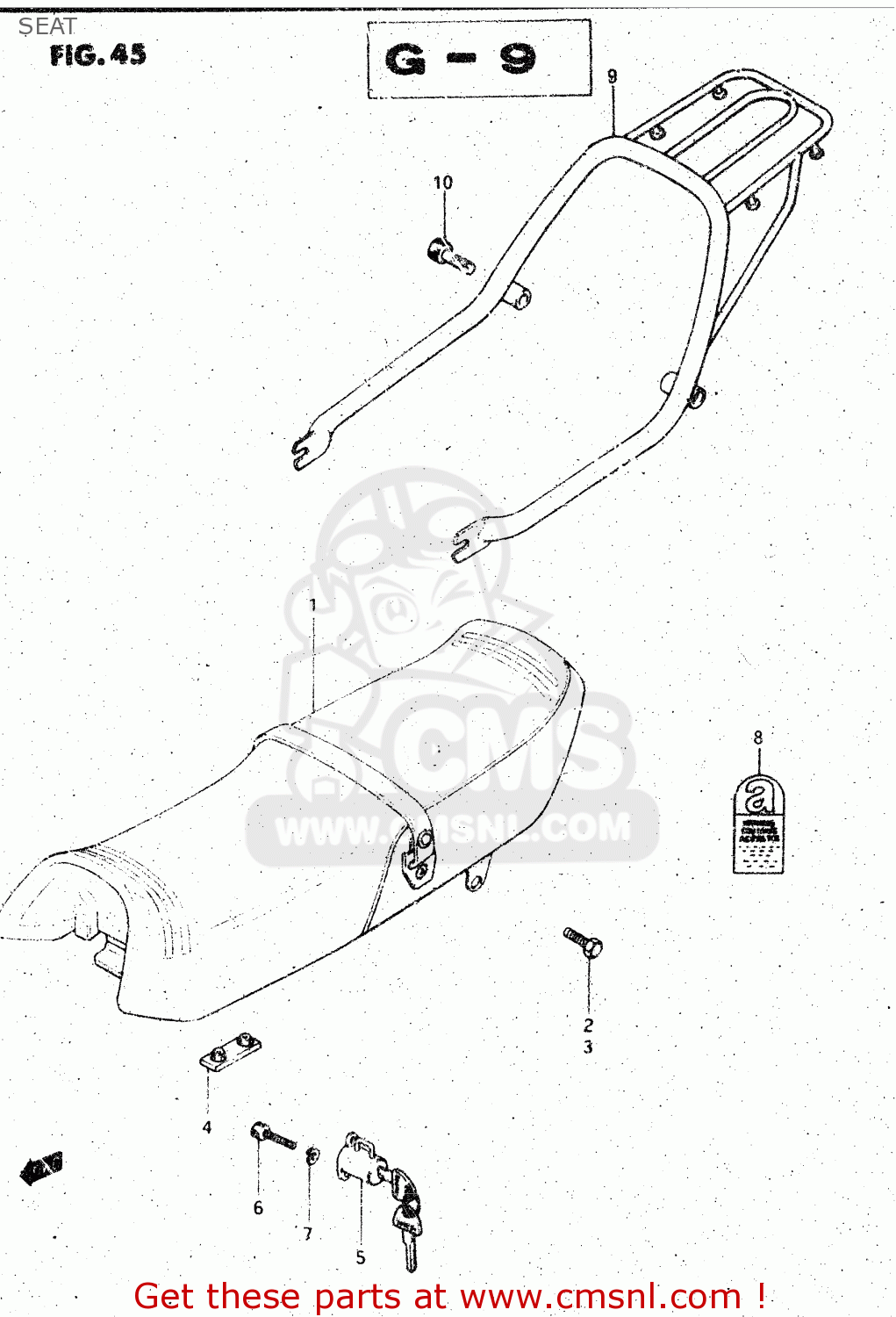

Seat diagram GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

SEAT GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

SEAT GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

prices are in EUR

ref

part #

description

quantity

1-1

451000535047T
ref: 1-1
MODEL Z

SEAT ASSY (BLACK)

€ 163.50

1-2

451000535048H
ref: 1-2
MODEL D

SEAT ASSY (BLACK)

€ 163.50

1-3

451000535148H
ref: 1-3
MODEL F/K/L/M

SEAT ASSY (BLACK)

€ 163.50

1-4

451000535248H
ref: 1-4
MODEL R

SEAT ASSY

€ 163.50

2

0151708165
ref: 2
MODEL Z/D/F/K/L/M

BOLT, LOWER

€ 3.00

3-1

0151708207
ref: 3-1
MODEL Z/D/F/K/L/M

BOLT

€ 3.00

3-2

0155008203
ref: 3-2
MODEL R

BOLT

€ 3.00

4-1

0932108009
ref: 4-1
MODEL Z

CUSHION

€ 4.00

4-2

4514905350
ref: 4-2
MODEL D/F/K/L/M/R

CUSHION

€ 2.00

5-1

9570037400KEY
ref: 5-1
MODEL Z/D/F/K/L

LOCK SET,HELMET

€ 36.00

5-2

9570037810
ref: 5-2
MODEL M/R

LOCK SET,HELMET

€ 36.00

6-1

0910606024
ref: 6-1
MODEL Z/D/F/K/L/M

BOLT 6X11

€ 2.50

6-2

0713006103
ref: 6-2
MODEL R

BOLT,VAC.PIPE

€ 2.50

7

0832121064
ref: 7

WASHER,LOCK

€ 2.00

8

1196782000
ref: 8
F2

LABEL,ASBESTOS WARNING

€ 2.00

9

4631005310
ref: 9
OPT

CARREAR, SPORTS

€ 107.50

10

0910608020
ref: 10
OPT

BOLT(8X90)

€ 4.00
