FRONT CALIPERS (MODEL D/F/K/L/M)

GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

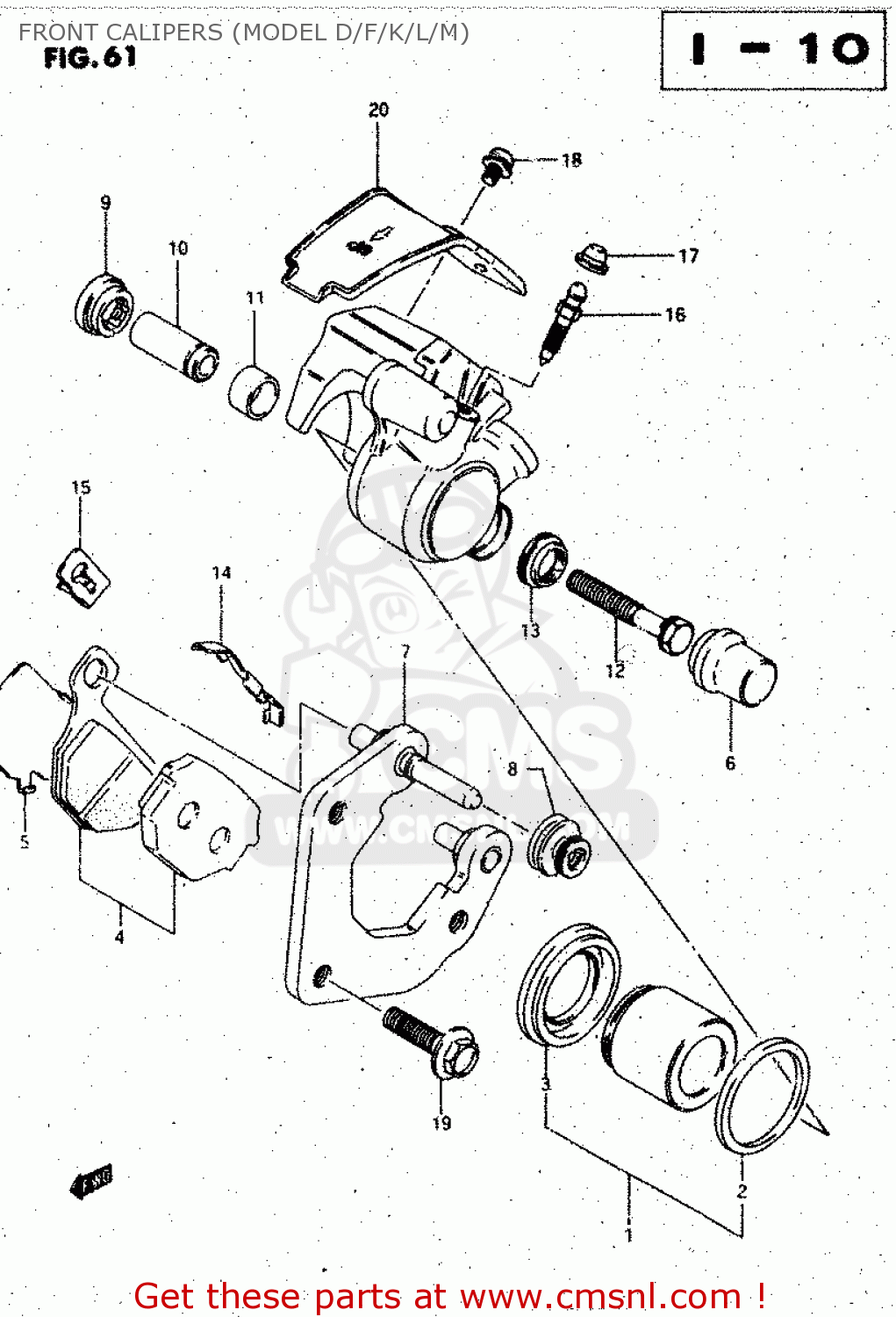

Front calipers (model d/f/k/l/m) diagram GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

FRONT CALIPERS (MODEL D/F/K/L/M) GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

FRONT CALIPERS (MODEL D/F/K/L/M) GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

prices are in EUR

ref

part #

description

quantity

0

5930005350
ref: 0
AISIN

CALIPERS ASSY, FRONT LH

€ 250.00

1

5930029810
ref: 1

PISTON SET

€ 83.50

2

5930739220
ref: 2

SEAL, PISTON

€ 4.50

3

5930839220
ref: 3

BOOT, PISTON

€ 4.00

4

5930139841
ref: 4

PAD SET

€ 40.50

5

5937139300
ref: 5

SHIM, PAD

€ 6.00

6

5938439300
ref: 6

CAP, BUSH

€ 4.50

7

5930039890
ref: 7

CARRIER SET,CALIPER

€ 30.00

8

5930339300
ref: 8

BOOT, GUIDE PIN

€ 5.50

9

5938339300
ref: 9

BOOT, BUSH DAST

€ 5.00

10

5938139300
ref: 10

BUSH, CYLINDER

€ 8.50

11

5938539300
ref: 11

COLLAR, BUSH

€ 4.50

12

5938239300
ref: 12

BOLT, BUSH

€ 2.50

13

5938639300
ref: 13

SEAL, CYLINDER

€ 4.50

14

5931505350
ref: 14

SPRING,PAD NO.1

€ 6.50

15

5931705350
ref: 15

SPRING,PAD

€ 7.50

16

5912147050
ref: 16

BREATHER

€ 11.50

17

5912218410
ref: 17

CAP,BREATHER

€ 6.00

18

0211275123
ref: 18

SCREW

€ 2.50

19

0151708307
ref: 19

BOLT 8X30

€ 3.50

20

5931313001
ref: 20

PROTECTOR,CALIPER

€ 4.50
