STARTING MOTOR (GS125ESM/ESR)

GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

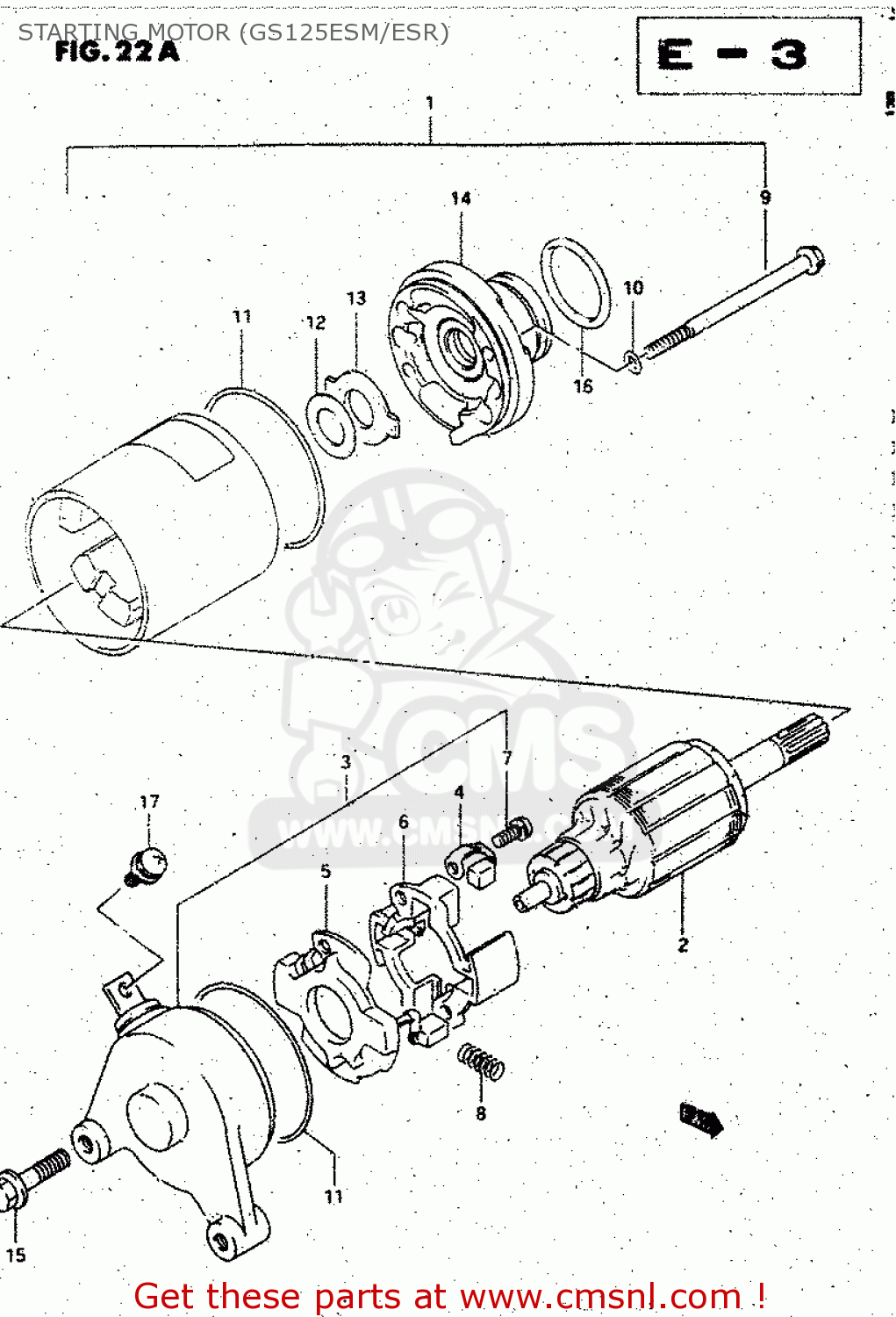

Starting motor (gs125esm/esr) diagram GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

STARTING MOTOR (GS125ESM/ESR) GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)
STARTING MOTOR (GS125ESM/ESR) GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)
STARTING MOTOR (GS125ESM/ESR) GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)
prices are in EUR
ref
part #
description
quantity
1
3110005500
ref: 1
MOTOR ASSEMBLY,STARTING
€ 899.00
2
3131011D00
ref: 2
ARMATURE
€ 265.50
3
3117529B00
ref: 3
FRAME ASSEMBLY,COMMUTATOR
€ 66.50
4
3113232C10
ref: 4
BRUSH
3113232C10
€ 14.50
5
3113032C20
ref: 5
BRUSH SUB ASSY,STARTER
3113032C20
€ 28.00
6
3113332C10
ref: 6
HOLDER,BRUSH
3113332C10
€ 9.00
7
0211234123
ref: 7
SCREW
0211234123
€ 2.00
8
3113532C10
ref: 8
SPRING
3113532C10
€ 3.50
9
3128132C10
ref: 9
BOLT
3128132C10
€ 8.50
10
3115638300
ref: 10
O RING
3115638300
€ 3.00
11
3126432C10
ref: 11
O RING
3126432C10
€ 9.00
12
3136138300
ref: 12
SHIM
3136138300
€ 1.50
13
3136132C10
ref: 13
PLATE,LOCK
€ 2.50
14
3115006C00
ref: 14
BRACKET
3115006C00
€ 112.00
15
0154706357
ref: 15
BOLT
0154706357
€ 2.50
16
0928024003
ref: 16
O RING(D:3,ID:24.5)
0928024003
€ 2.00
17
0913705004
ref: 17
SCREW(5X8)
0913705004
€ 2.00
