REAR BRAKE

GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

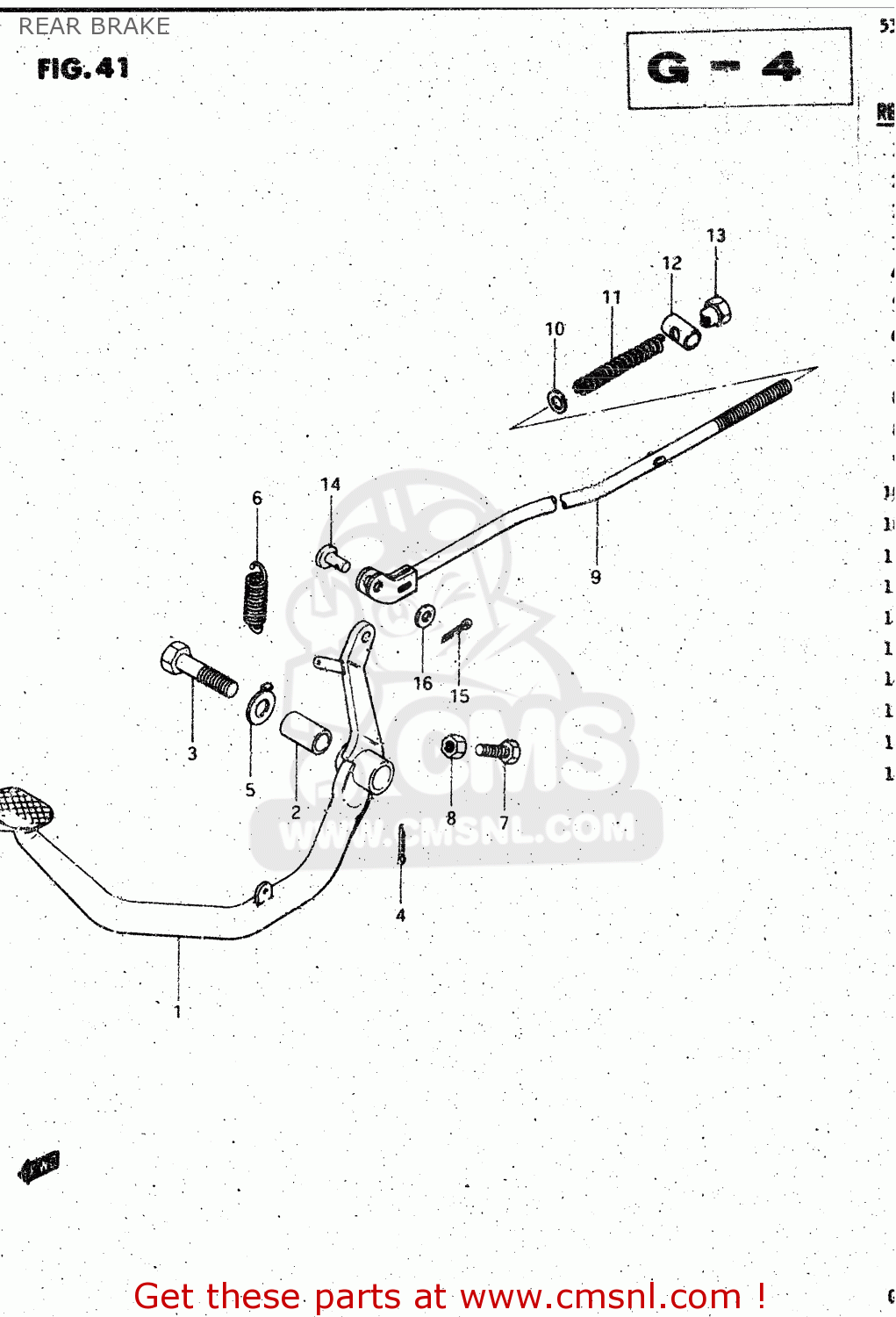

Rear brake diagram GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)

REAR BRAKE GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)
REAR BRAKE GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)
REAR BRAKE GS125ES 1982 (Z) (E01 E02 E04 E18 E24 E39)
prices are in EUR
ref
part #
description
quantity
1
4311005311
ref: 1
PEDAL,BRAKE
4311005311
€ 35.00
2
4323105302
ref: 2
SPACER,BRAKE PEDAL BOSS
4323105302
€ 7.00
3-1
0910110020
ref: 3-1
MODEL Z/D/F/K/L/M
BOLT 10X52
0910110020
€ 9.50
3-2
0911610121
ref: 3-2
MODEL R
BOLT(10X52)
€ 4.50
4
0411120208
ref: 4
PIN 20X20
0411120208
€ 1.50
5
0832211107
ref: 5
WASHER
0832211107
€ 2.50
6
0944314015
ref: 6
SPRING
0944314015
€ 3.00
7
0910006009
ref: 7
BOLT(6X23)
0910006009
€ 1.50
8-1
0831011067
ref: 8-1
MODEL Z/D/F/K/L/M
NUT 6MM
€ 2.50
8-2
0831000063
ref: 8-2
MODEL R
NUT 6MM
0831000063
€ 2.00
9
4330026510
ref: 9
ROD ASSY,RR BRAKE
4330026510
€ 18.50
10-1
0832221067
ref: 10-1
MODEL Z/D/F/K/L/M
WASHER
0832221067
€ 2.00
10-2
0832201063
ref: 10-2
MODEL R
WASHER
0832201063
€ 2.00
11
0944009004
ref: 11
SPRING
0944009004
€ 2.00
12
0920911002
ref: 12
PIN(11X18)
0920911002
€ 2.00
13-1
0915006001
ref: 13-1
MODEL Z
NUT
0915006001
€ 3.50
13-2
0915006009
ref: 13-2
MODEL D/F/K/L/M/R
NUT (6MM)
0915006009
€ 3.50
14
0920006013
ref: 14
PIN(L:13.5)
0920006013
€ 2.00
15
0411120208
ref: 15
PIN 20X20
0411120208
€ 1.50
16-1
0832221067
ref: 16-1
MODEL Z/D/F/K/L/M
WASHER
0832221067
€ 2.00
16-2
0832201063
ref: 16-2
MODEL R
WASHER
0832201063
€ 2.00
