COWLING (GS450SD E6, E15, E24, E34, E39)

GS450E 1983 (D2) GENERAL EXPORT (E01)

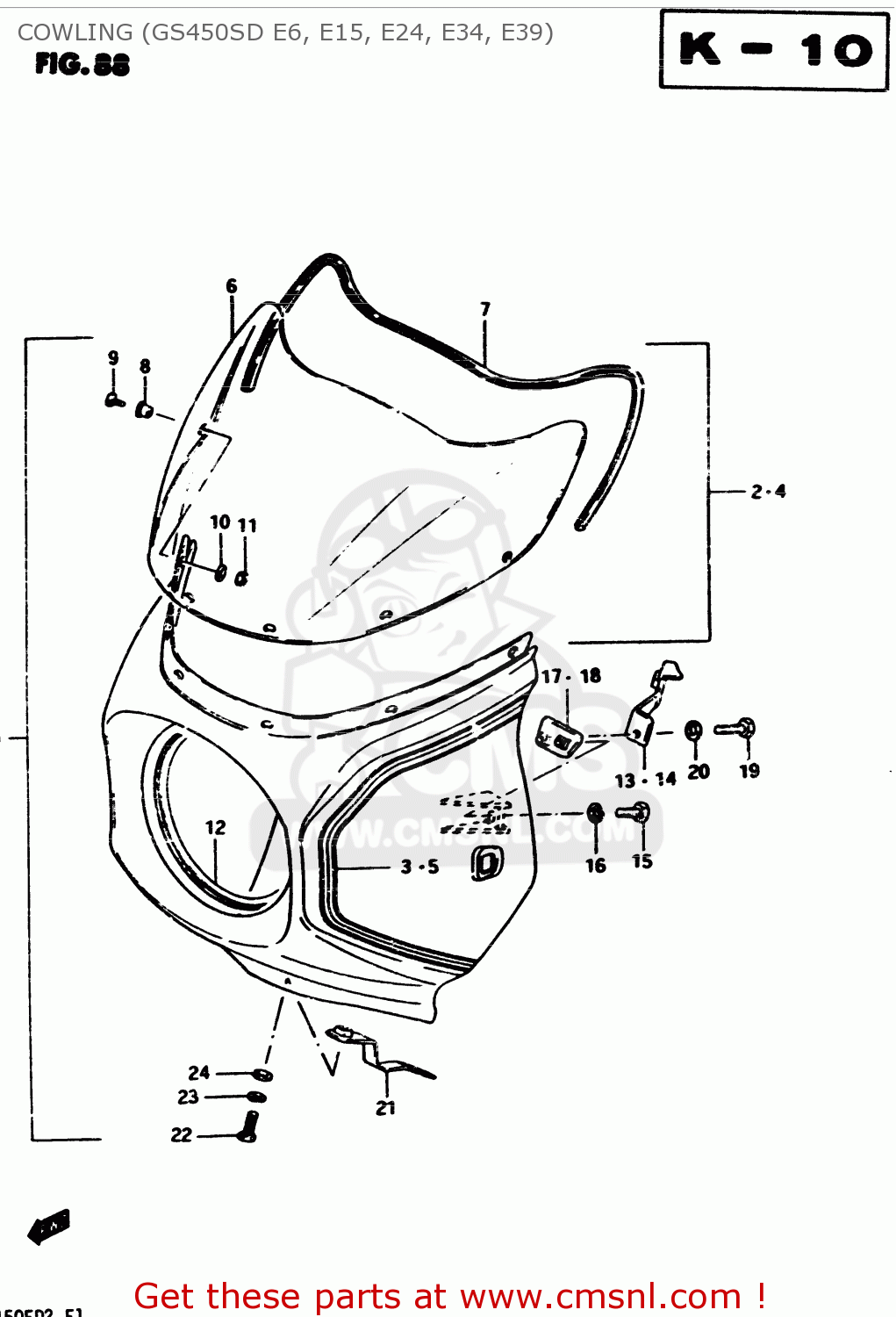

Cowling (gs450sd e6, e15, e24, e34, e39) diagram GS450E 1983 (D2) GENERAL EXPORT (E01)

COWLING (GS450SD E6, E15, E24, E34, E39) GS450E 1983 (D2) GENERAL EXPORT (E01)
COWLING (GS450SD E6, E15, E24, E34, E39) GS450E 1983 (D2) GENERAL EXPORT (E01)
COWLING (GS450SD E6, E15, E24, E34, E39) GS450E 1983 (D2) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1-1
944004482086M
ref: 1-1
COWLING ASSY (RED/BLACK)
€ 345.50
1-2
944004482087P
ref: 1-2
COWLING ASSY (RED/WHITE)
€ 345.50
2
944004484086M
ref: 2
COWLING ASSY
€ 345.50
3
681904440082S
ref: 3
TAPE SET
€ 0.00
4
944004484087P
ref: 4
COWLING ASSY
€ 345.50
5
681904440090R
ref: 5
TAPE SET
€ 0.00
6
9461144400
ref: 6
WINDOW
€ 238.00
7
9463144400
ref: 7
MOULDING
€ 18.00
8
0932005008
ref: 8
CUSHION
0932005008
€ 5.00
9
0214205125
ref: 9
SCREW M5X12 DIN 7985/N
0214205125
€ 1.50
10
0832221055
ref: 10
WASHER,5MM
0832221055
€ 2.50
11
0831011058
ref: 11
NUT
0831011058
€ 2.50
12
9459144400
ref: 12
MOLDING,HEADLAMP GRILL
9459144400
€ 11.50
13
9451044400
ref: 13
BRACKET,COWLING RH
9451044400
€ 8.50
14
9452044400
ref: 14
BRACKET,COWLING LH
9452044400
€ 7.00
15
0110706108
ref: 15
BOLT
€ 2.00
16
0832121068
ref: 16
LOCK WASHER
0832121068
€ 2.50
17
9453044401
ref: 17
BRACKET, FITTING RH
€ 5.50
18
9456044401
ref: 18
BRACKET, FITTING LH
9456044401
€ 4.00
19
0110706168
ref: 19
BOLT, UPPER
€ 3.00
20
0916006039
ref: 20
WASHER (6.5X18X1.6)
0916006039
€ 2.00
21
9455044400
ref: 21
BRACKET, LOWER
9455044400
€ 7.00
22
0110706128
ref: 22
BOLT
0110706128
€ 2.00
23
0832121068
ref: 23
LOCK WASHER
0832121068
€ 2.50
24
0832221068
ref: 24
WASHER
0832221068
€ 2.00
