GS450E 1983 (D2) GENERAL EXPORT (E01)

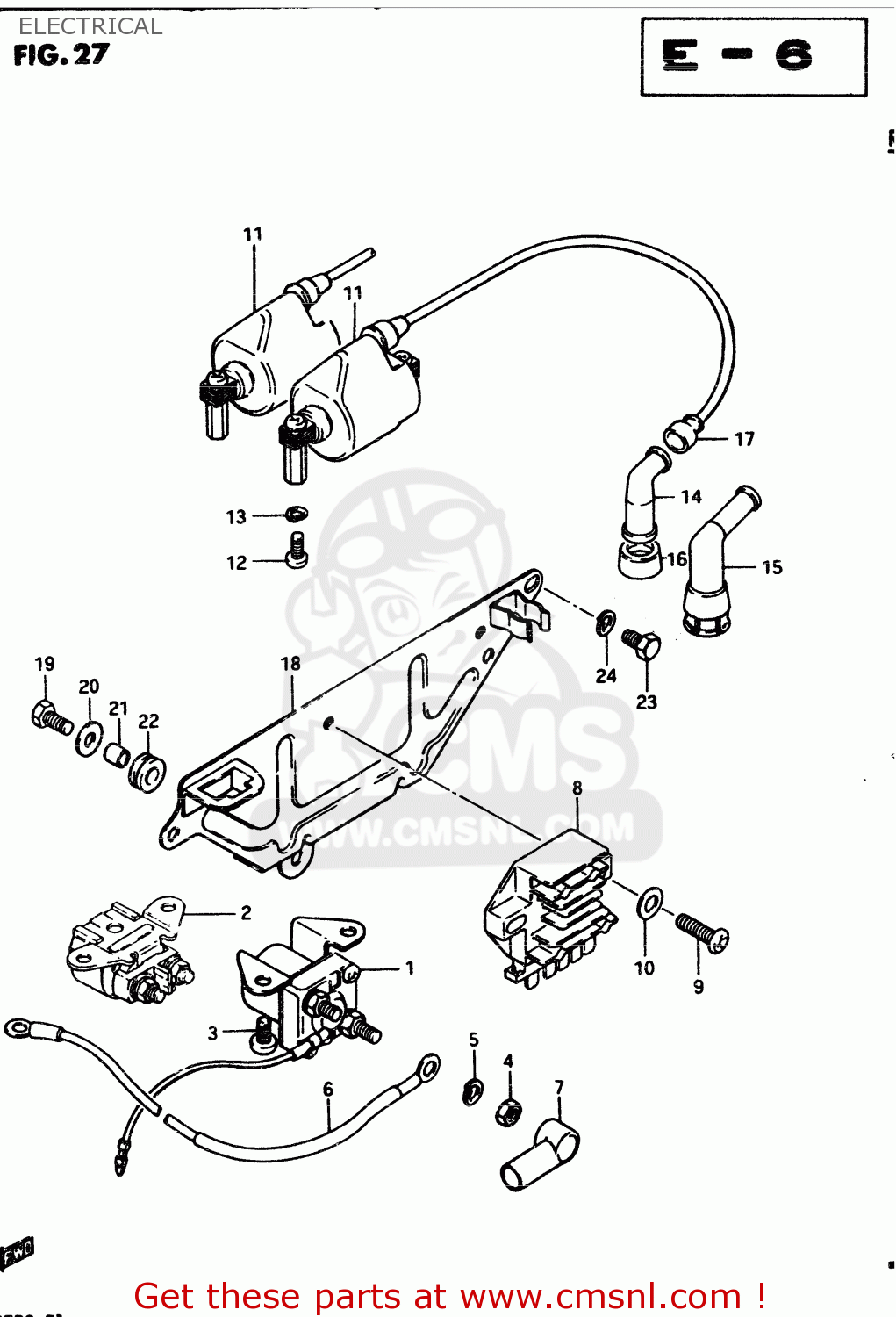

Electrical diagram GS450E 1983 (D2) GENERAL EXPORT (E01)
ELECTRICAL GS450E 1983 (D2) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3180037020
ref: 1
MODEL Z
RELAY ASSY,STARTING MOTOR
€ 105.00
2
3180033400
ref: 2
MODEL D
RELAY ASSEMBLY,STARTING MOTOR
€ 89.00
3
0211206088
ref: 3
SCREW
€ 2.00
4
0831022068
ref: 4
NUT 6MM
€ 2.50
5
0832121068
ref: 5
LOCK WASHER
€ 2.50
6-1
3385044110
ref: 6-1
MODEL Z
CORD,BATTERY MINUS
€ 8.50
6-2
3385044510
ref: 6-2
MODEL D
CORD,BATTERY MINUS
€ 15.00
7
3186135100
ref: 7
CAP,STARTER RELAY
€ 4.50
8
3280044130
ref: 8
RECTIFIER ASSEMBLY
€ 235.00
9
0211206208
ref: 9
SCREW
€ 2.00
10
0832221068
ref: 10
WASHER
€ 2.00
11
3341044410
ref: 11
COIL ASSEMBLY,IGNITION
€ 146.50
12
0211205108
ref: 12
SCREW
€ 2.00
13
0832121058
ref: 13
LOCK WASHER
€ 2.00
14
3351043010
ref: 14
CAP,SPARK PLUG
€ 11.50
15
3351044600
ref: 15
E15,E21,E39
CAP, SPARK PLUG (S)
€ 40.00
16
3354169010
ref: 16
SEAL,SPARK PLUG
€ 5.00
17
3354298000
ref: 17
SEAL,SPARK PLU
€ 4.50
18
4741044400
ref: 18
HOLDER COMP,ELECTRONIC PARTS
€ 9.00
19
0110706208
ref: 19
BOLT
€ 2.00
20
0916006007
ref: 20
WASHER
€ 2.00
21
0918006044
ref: 21
SPACER (6.1X8X9.5)
€ 2.50
22
0932008001
ref: 22
CUSHION
€ 3.50
23
0110706108
ref: 23
BOLT
€ 2.00
24
0832121068
ref: 24
LOCK WASHER
€ 2.50
