FRONT WHEEL (MODEL D)

GS450E 1983 (D2) GENERAL EXPORT (E01)

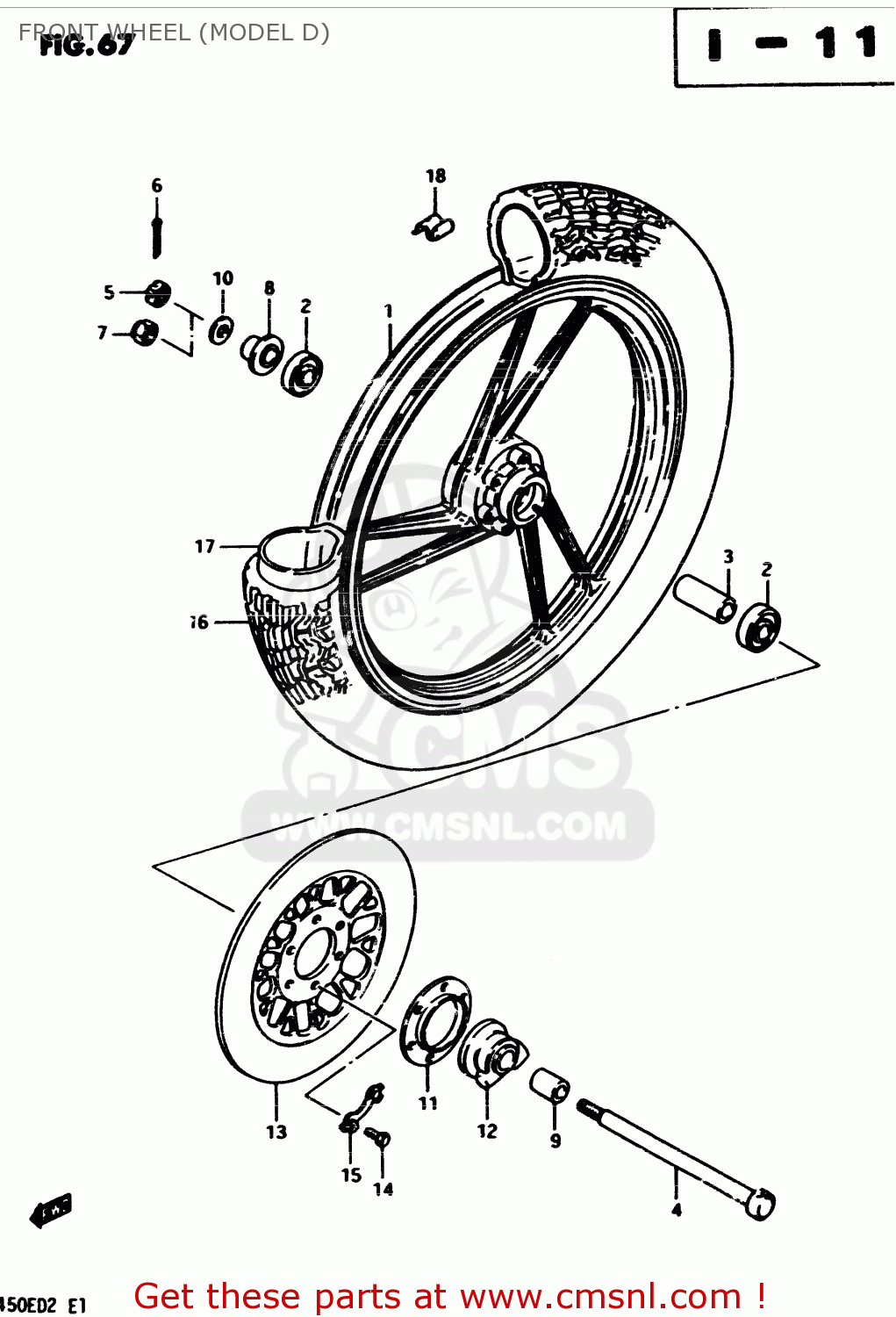

Front wheel (model d) diagram GS450E 1983 (D2) GENERAL EXPORT (E01)

FRONT WHEEL (MODEL D) GS450E 1983 (D2) GENERAL EXPORT (E01)
FRONT WHEEL (MODEL D) GS450E 1983 (D2) GENERAL EXPORT (E01)
FRONT WHEEL (MODEL D) GS450E 1983 (D2) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
5411144450291
ref: 1
WHEEL (1.60X18)
5411144450291
€ 447.50
2
0812363027
ref: 2
BEARING
0812363027
€ 19.00
3
0918015011
ref: 3
SPACER(15.3X21.7X63)
0918015011
€ 7.50
4
5471133002
ref: 4
AXLE,FRONT
5471133002
€ 41.00
5
0831431128
ref: 5
NUT 12MM
0831431128
€ 2.00
6
0411130308
ref: 6
COTTER PIN
0411130308
€ 1.50
7
0915912011
ref: 7
E25
NUT
0915912011
€ 8.50
8
5474018410
ref: 8
SPACER,FR HUB BEARING,R
5474018410
€ 17.00
9
0918015034
ref: 9
SPACER(15X22X30)
0918015034
€ 7.00
10
0832221128
ref: 10
WASHER
0832221128
€ 2.00
11
5487145010
ref: 11
DUST SEAL,SPEEDOMETER GEAR BOX
5487145010
€ 21.00
12
5460018402
ref: 12
BOX ASSY,SPEEDOMETER GEAR
5460018402
€ 90.50
13
5921145200
ref: 13
DISC,FR BRAKE
5921145200
€ 144.00
14
0910008140
ref: 14
BOLT(8X25)
0910008140
€ 2.00
15
0916908016
ref: 15
WASHER
0916908016
€ 3.50
16-1
5510044010
ref: 16-1
IRC
TIRE,FRONT
€ 123.00
16-2
5510044130
ref: 16-2
BS
TIRE,FRONT
€ 123.00
17-1
5520018030
ref: 17-1
BS
TUBE,INNER
€ 24.50
17-2
5520011601
ref: 17-2
IRC
TUBE,INNER
€ 24.50
18-1
5541145100
ref: 18-1
BALANCER,WHEEL
5541145100
€ 7.00
18-2
5541245100
ref: 18-2
BALANCER,WHEEL
5541245100
€ 4.00
18-3
5541345100
ref: 18-3
BALANCER,WHEEL
€ 6.50
