SEAT

GS450E 1983 (D2) GENERAL EXPORT (E01)

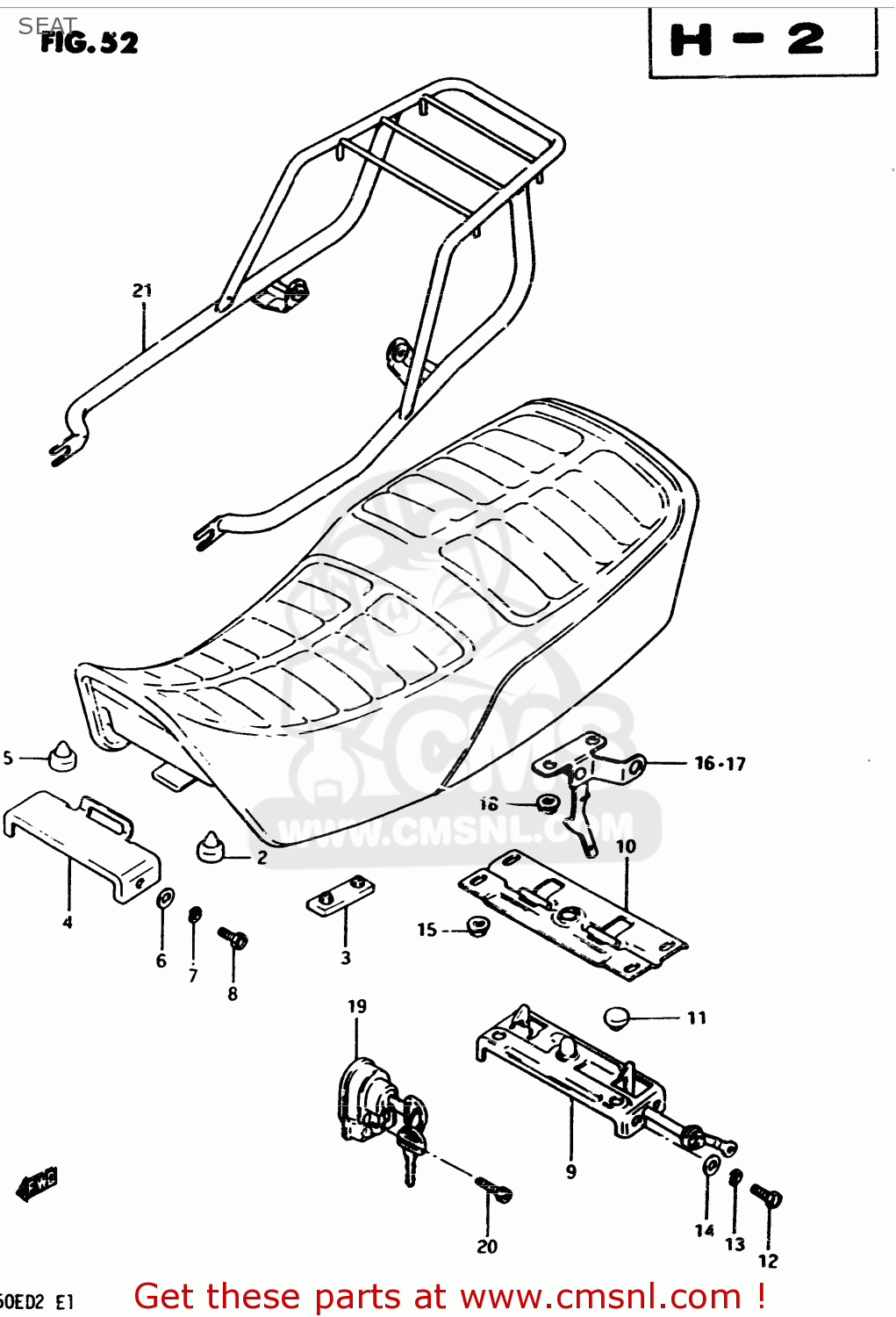

Seat diagram GS450E 1983 (D2) GENERAL EXPORT (E01)

SEAT GS450E 1983 (D2) GENERAL EXPORT (E01)
SEAT GS450E 1983 (D2) GENERAL EXPORT (E01)
SEAT GS450E 1983 (D2) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1-1
451004441047T
ref: 1-1
TO 45100-44410-48H
SEAT ASSY (BLACK)
€ 333.50
1-2
451004441048H
ref: 1-2
SEAT ASSY (BLACK)
€ 333.50
1-3
451004440047T
ref: 1-3
TO 45100-44400-48H
SEAT ASSY (BLACK)
€ 333.50
1-4
451004440048H
ref: 1-4
E21,E24,E34,E39
SEAT ASSEMBLY
451004440048H
€ 333.50
2
0932106016
ref: 2
CUSHION
0932106016
€ 2.00
3
0932108009
ref: 3
CUSHION
0932108009
€ 4.00
4
4527144400
ref: 4
PLATE,SEAT LOCK,FRONT
4527144400
€ 6.50
5
0932110002
ref: 5
CUSHION(11.5X22X20)
0932110002
€ 2.00
6
0832221068
ref: 6
WASHER
0832221068
€ 2.00
7
0832121068
ref: 7
LOCK WASHER
0832121068
€ 2.50
8
0110706128
ref: 8
BOLT
0110706128
€ 2.00
9
4522044400
ref: 9
PLATE,CLAMP GUIDE
4522044400
€ 31.50
10
4512444400
ref: 10
PLATE,SEAT CLAMP GUIDE
4512444400
€ 12.50
11
0932910001
ref: 11
CUSHION
0932910001
€ 2.50
12
0211205108
ref: 12
SCREW
0211205108
€ 2.00
13
0832121058
ref: 13
LOCK WASHER
0832121058
€ 2.00
14
0832221058
ref: 14
WASHER
€ 2.50
15
0831616066
ref: 15
NUT
€ 2.50
16
4512944400
ref: 16
LEVER,SEAT HOOK,RIGHT
4512944400
€ 18.00
17
4513044400
ref: 17
LEVER,SEAT HOOK,LEFT
€ 0.00
18
0831616068
ref: 18
NUT
0831616068
€ 2.50
19
9570034210
ref: 19
LOCK ASSY,HELMET
9570034210
€ 59.00
20
0910605008
ref: 20
BOLT 5X25
€ 2.00
21
4630044401
ref: 21
OPT
CARRIER
€ 95.50
