FILTER - OIL PUMP

GS450E 1983 (D2) GENERAL EXPORT (E01)

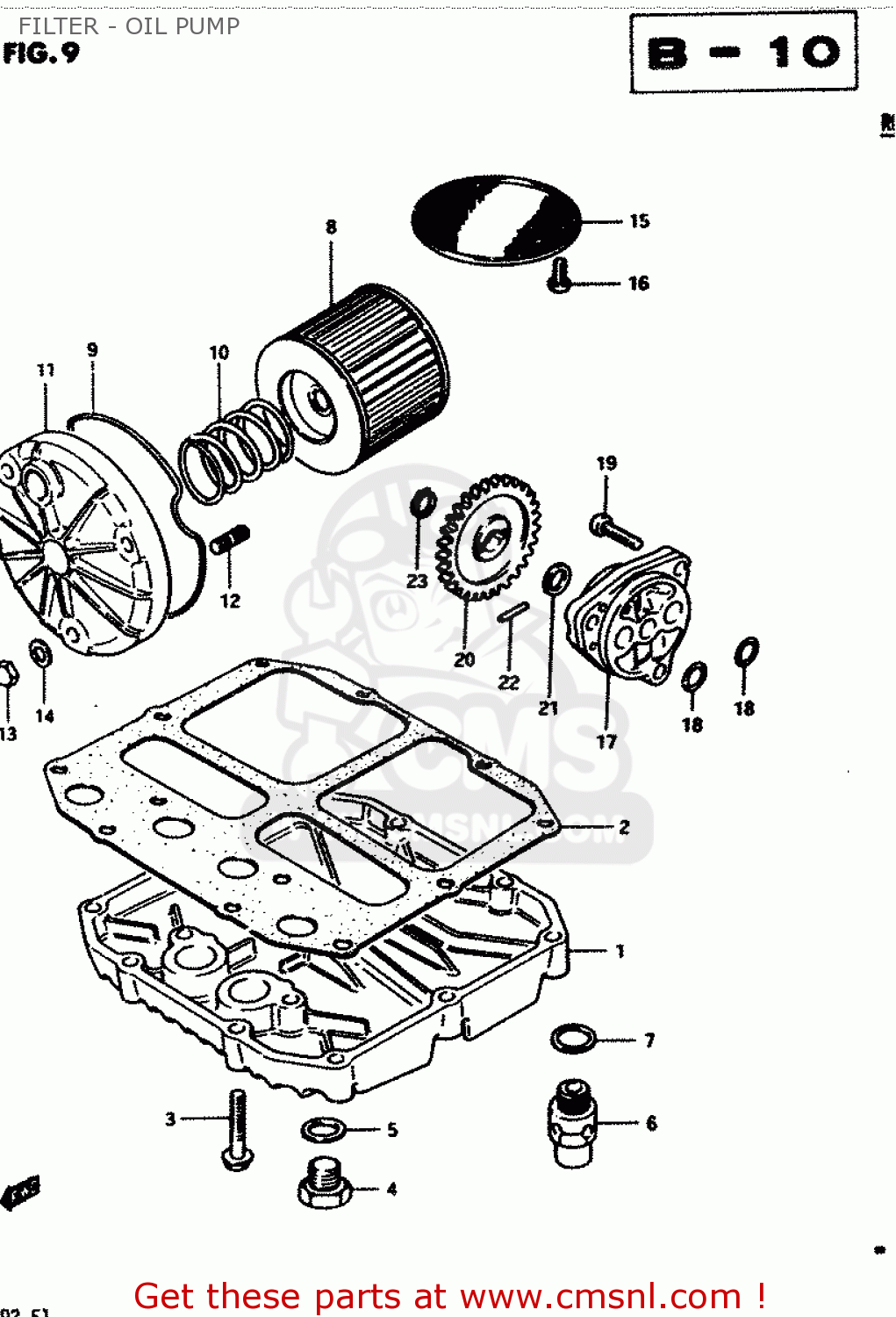

Filter - oil pump diagram GS450E 1983 (D2) GENERAL EXPORT (E01)

FILTER - OIL PUMP GS450E 1983 (D2) GENERAL EXPORT (E01)
FILTER - OIL PUMP GS450E 1983 (D2) GENERAL EXPORT (E01)
FILTER - OIL PUMP GS450E 1983 (D2) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1-1
1151144100
ref: 1-1
MODEL Z
PAN,OIL
1151144100
€ 83.50
1-2
1151144110
ref: 1-2
MODEL D
PAN,OIL
€ 83.50
2
1148944100
ref: 2
GASKET,OIL PAN (MCA)
1148944100
€ 11.00
3-1
0151706308
ref: 3-1
MODEL Z
BOLT
€ 2.00
3-2
0151706305
ref: 3-2
MODEL D
BOLT 6X30
€ 2.50
4
0924714001
ref: 4
PLUG
0924714001
€ 5.00
5
0916814004
ref: 5
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
6-1
1644034301
ref: 6-1
MODEL Z
REGULATOR ASSEMBLY,ENGINE
€ 37.00
6-2
1644033300
ref: 6-2
MODEL D
VALVE ASSEMBLY,OIL RELIEF
€ 37.00
7
0821214181
ref: 7
WASHER
0821214181
€ 2.00
8
1651045040
ref: 8
FILTER ASSY,ENGINE OIL
1651045040
€ 7.50
9
1651845000
ref: 9
O RING,OIL FILTER CHAMBER CAP
1651845000
€ 7.50
10
0944032004
ref: 10
SPRING
0944032004
€ 13.50
11-1
1651244400
ref: 11-1
MODEL Z
CAP,OIL FILTER
€ 47.00
11-2
1651244410
ref: 11-2
MODEL D
CAP,OIL FILTER
1651244410
€ 47.00
12
0142106208
ref: 12
STUD 6X20
0142106208
€ 2.50
13-1
0831311068
ref: 13-1
MODEL Z
NUT
0831311068
€ 2.00
13-2
0831311065
ref: 13-2
MODEL D
NUT 6MM
0831311065
€ 2.00
14-1
0832221068
ref: 14-1
MODEL Z
WASHER
0832221068
€ 2.00
14-2
0832221065
ref: 14-2
MODEL D
WASHER
€ 2.00
15
1652045010
ref: 15
STRAINER,ENGINE OIL
1652045010
€ 12.00
16
0211206128
ref: 16
SCREW 6X12
0211206128
€ 2.00
17
1640044100
ref: 17
PUMP ASSY,ENGINE OIL
1640044100
€ 164.50
18
0928013004
ref: 18
O RING(D:1.9,ID:13)
0928013004
€ 2.50
19
0211206258
ref: 19
SCREW
€ 2.00
20
1633144000
ref: 20
GEAR,OIL PUMP DRIVEN
1633144000
€ 34.00
21
0822110165
ref: 21
SHIM
€ 1.50
22
0926104009
ref: 22
PIN(4X15.8)
0926104009
€ 1.50
23
0833131109
ref: 23
CIRCLIP
0833131109
€ 2.00
