Buy Suzuki GS Parts Online


SEAT TAIL COVER (MODEL Z)

GS450E 1983 (D2) GENERAL EXPORT (E01)

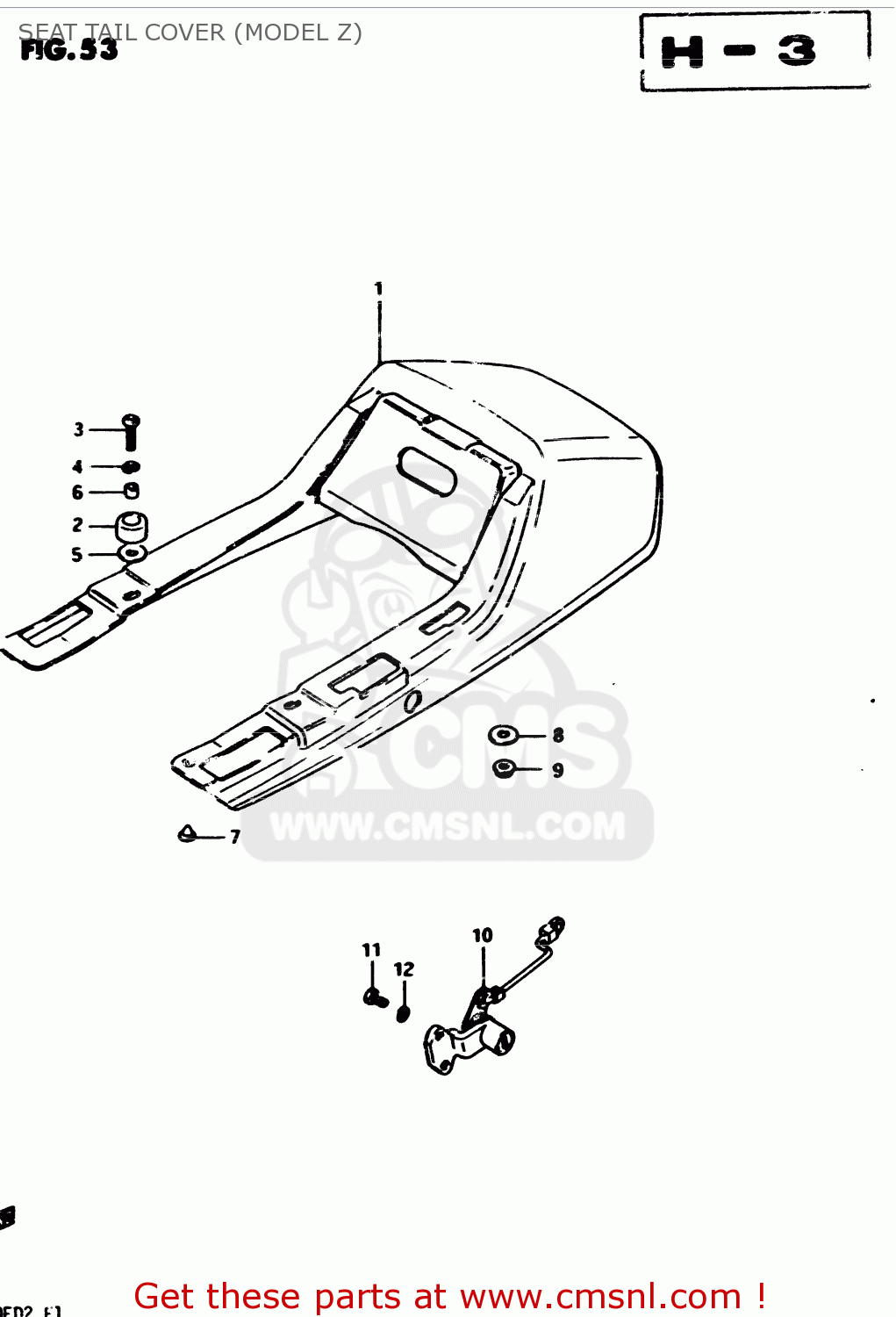

Seat tail cover (model z) diagram GS450E 1983 (D2) GENERAL EXPORT (E01)

SEAT TAIL COVER (MODEL Z) GS450E 1983 (D2) GENERAL EXPORT (E01)
SEAT TAIL COVER (MODEL Z) GS450E 1983 (D2) GENERAL EXPORT (E01)
SEAT TAIL COVER (MODEL Z) GS450E 1983 (D2) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1-1
455104440007P
ref: 1-1
TAIL COVER, SEAT (RED)
€ 127.00
1-2
4551044400737
ref: 1-2
TAIL COVER, SEAT (SILVER)
€ 127.00
1-3
455104440008E
ref: 1-3
GS450SZ E6,E24,E34,E
TAIL COVER, SEAT (BLACK)
€ 127.00
2
4514944400
ref: 2
CUSHION,COVER
4514944400
€ 6.50
3
0211206208
ref: 3
SCREW
€ 2.00
4
0832121068
ref: 4
LOCK WASHER
0832121068
€ 2.50
5
0916006004
ref: 5
WASHER (6.5X24X1.6)
0916006004
€ 1.50
6
0918006073
ref: 6
SPACER
0918006073
€ 2.00
7
0932106016
ref: 7
CUSHION
0932106016
€ 2.00
8
0916906016
ref: 8
WASHER
0916906016
€ 1.50
9
0831921068
ref: 9
NUT 6MM
0831921068
€ 2.00
10
4570044400KEY
ref: 10
LOCK ASSEMBLY,SEAT
4570044400KEY
€ 46.50
11
0110705108
ref: 11
BOLT 5X10
0110705108
€ 1.50
12
0832121058
ref: 12
LOCK WASHER
0832121058
€ 2.00
