CYLINDER HEAD COVER (MODEL Z)

GS450E 1983 (D2) GENERAL EXPORT (E01)

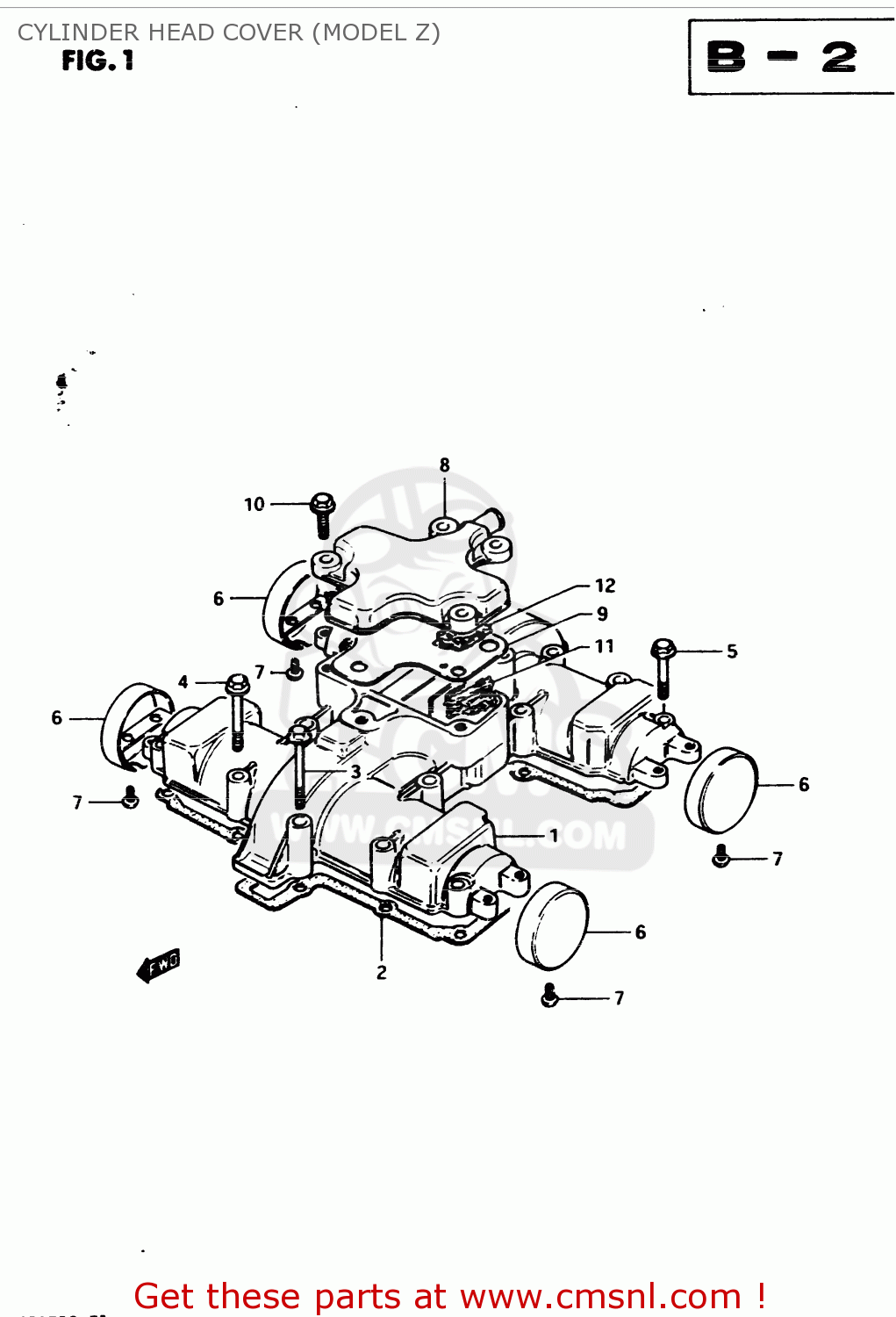

Cylinder head cover (model z) diagram GS450E 1983 (D2) GENERAL EXPORT (E01)

CYLINDER HEAD COVER (MODEL Z) GS450E 1983 (D2) GENERAL EXPORT (E01)
CYLINDER HEAD COVER (MODEL Z) GS450E 1983 (D2) GENERAL EXPORT (E01)
CYLINDER HEAD COVER (MODEL Z) GS450E 1983 (D2) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
1117144110
ref: 1
COVER,CYLINDER HEAD
1117144110
€ 140.00
2
1117344110
ref: 2
GASKET,CYLINDER HEAD COVER (MCA)
€ 41.00
3
0151706458
ref: 3
BOLT,UNDER
0151706458
€ 2.50
4
0151706408
ref: 4
BOLT
0151706408
€ 2.50
5
0151706308
ref: 5
BOLT
€ 2.00
6
1117444110
ref: 6
CAP,CYLINDER HEAD COVER
1117444110
€ 13.00
7
0211205108
ref: 7
SCREW
0211205108
€ 2.00
8
1117647002
ref: 8
COVER,BREATHER
€ 32.50
9
1117747001
ref: 9
GASKET (MCA)
1117747001
€ 19.50
10
0151706208
ref: 10
BOLT,REAR
€ 2.50
11
1118645000
ref: 11
COVER,BREATHER
1118645000
€ 5.50
12
1118745000
ref: 12
SEPARATOR,OIL BREATHER
1118745000
€ 6.50
