TURN SIGNAL LAMP (E15)

GS450E 1983 (D2) GENERAL EXPORT (E01)

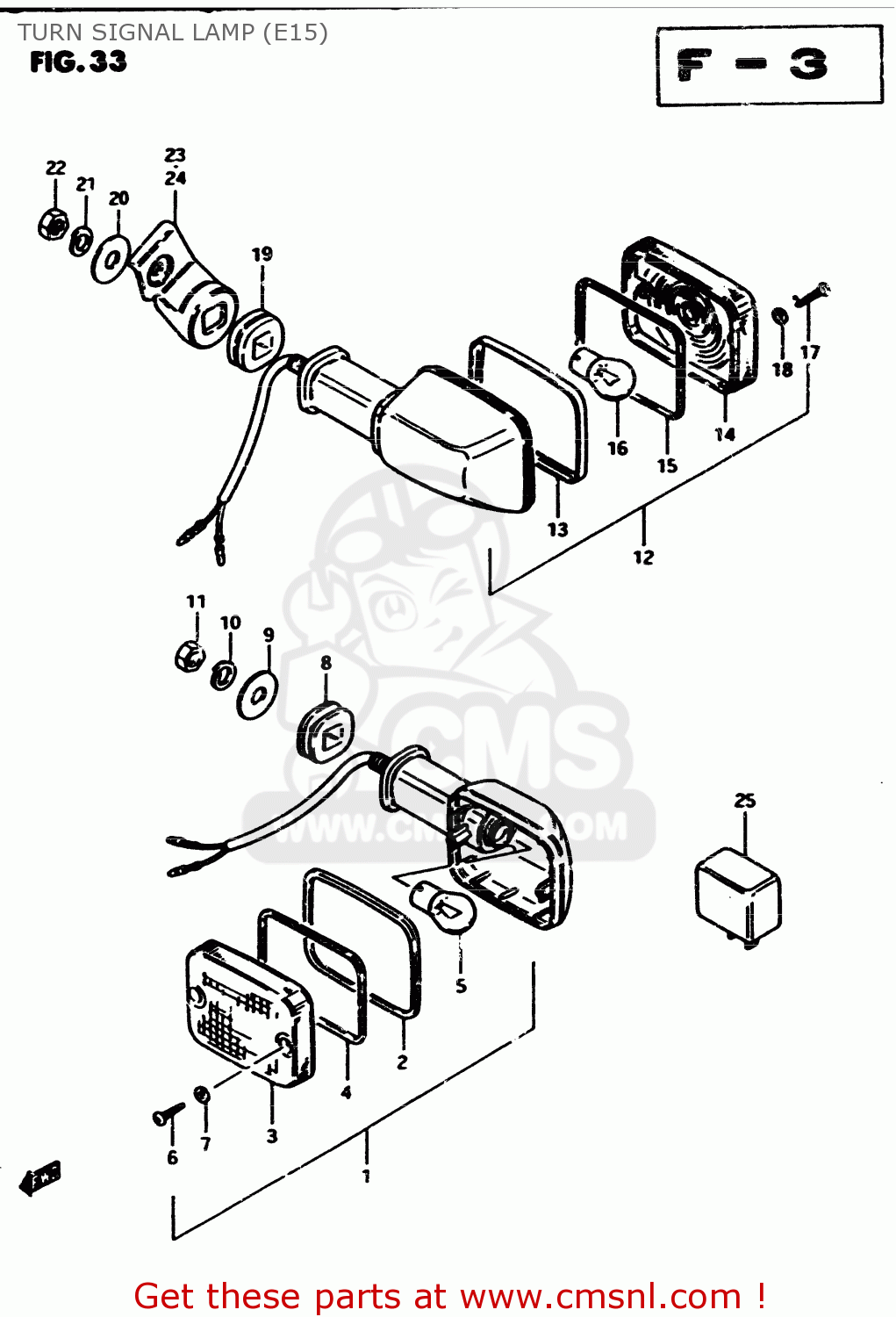

Turn signal lamp (e15) diagram GS450E 1983 (D2) GENERAL EXPORT (E01)

TURN SIGNAL LAMP (E15) GS450E 1983 (D2) GENERAL EXPORT (E01)

TURN SIGNAL LAMP (E15) GS450E 1983 (D2) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-1

3560145541
ref: 1-1
GS450EZ

LAMP, FRONT TURN SIGNAL

€ 72.50

1-2

3560145521
ref: 1-2
GS450SD

LAMP ASSY,FR T

€ 70.00

2

3561149230
ref: 2

RIM

€ 11.00

3

3561249231
ref: 3

LENS

€ 13.00

4

3561349230
ref: 4

GASKET (NAS)

€ 5.00

5

0947112045
ref: 5
EXECUTED LOCALLY

BULB(12V21W)

€ 5.00

6

0321104208
ref: 6

SCREW

€ 1.50

7

3562743010
ref: 7

GASKET (NAS)

€ 2.00

8-1

0932015002
ref: 8-1
GS450EZ

CUSHION

€ 4.50

8-2

0932015004
ref: 8-2
GS450SD

CUSHION

€ 5.00

9

0916010006
ref: 9

WASHER (10.5X30X2.3)

€ 2.50

10

0832121108
ref: 10

LOCK WASHER

€ 2.00

11

0831012108
ref: 11

NUT

€ 2.50

12

3560345581
ref: 12

LAMP ASSY,RR T

€ 68.50

13

3561149230
ref: 13

RIM

€ 11.00

14

3565214182
ref: 14

LENS

€ 0.00

15

3561349230
ref: 15

GASKET (NAS)

€ 5.00

16

0947112045
ref: 16
EXECUTED LOCALLY

BULB(12V21W)

€ 5.00

17

0321104208
ref: 17

SCREW

€ 1.50

18

3562743010
ref: 18

GASKET (NAS)

€ 2.00

19

0932015004
ref: 19

CUSHION

€ 5.00

20

0916010006
ref: 20

WASHER (10.5X30X2.3)

€ 2.50

21

0832121108
ref: 21

LOCK WASHER

€ 2.00

22

0831012108
ref: 22

NUT

€ 2.50

23

3562111500
ref: 23

BRACKET,REAR TURN SIGNAL

€ 66.50

24

3564111500
ref: 24

BRACKET,REAR TURN SIGNAL

€ 43.50

25

3861045031
ref: 25

RELAY,TURN SIGNAL

€ 54.50
