FRONT CALIPERS

GS450E 1983 (D2) GENERAL EXPORT (E01)

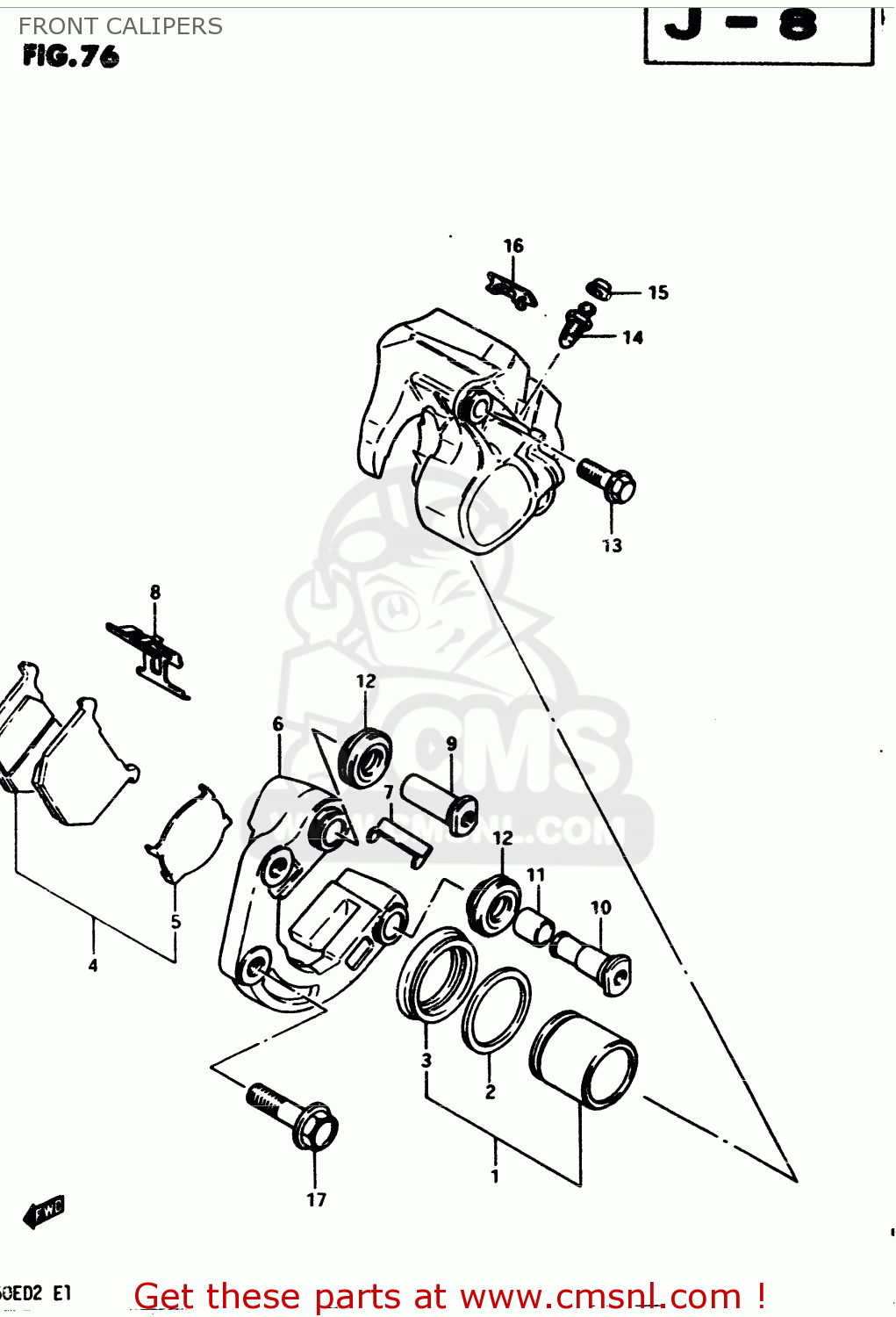

Front calipers diagram GS450E 1983 (D2) GENERAL EXPORT (E01)

FRONT CALIPERS GS450E 1983 (D2) GENERAL EXPORT (E01)
FRONT CALIPERS GS450E 1983 (D2) GENERAL EXPORT (E01)
FRONT CALIPERS GS450E 1983 (D2) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
0
5930045251
ref: 0
MODEL Z
CALIPER ASSEMBLY,FRONT,LEFT
€ 400.00
0
5930045253
ref: 0
MODEL D
CALIPER ASSEMBLY,FRONT,LEFT
€ 400.00
1
5930145830
ref: 1
PISTON SET
5930145830
€ 47.00
2
5513666310
ref: 2
SEAL,FR CALIPE
5513666310
€ 8.50
3
5930845250
ref: 3
BOOT,PISTON
5930845250
€ 8.00
4-1
5930145810
ref: 4-1
MODEL Z
PAD SET (MCA)
€ 72.50
4-2
5930145811
ref: 4-2
MODEL D
PAD SET,BRAKE (MCA)
5930145811
€ 72.50
5
5937145200
ref: 5
SHIM,PAD
5937145200
€ 12.50
6-1
5930145840
ref: 6-1
MODEL Z
CARRIER,CALIPER,LEFT
5930145840
€ 67.00
6-2
5930145841
ref: 6-2
MODEL D
CARRIER,CALIPER,LEFT
5930145841
€ 67.00
7
5931645201
ref: 7
GUIDE,PAD
5931645201
€ 19.00
8
5931545200
ref: 8
SPRING,PAD
5931545200
€ 29.00
9
5930545200
ref: 9
AXLE NO.1
5930545200
€ 15.00
10
5930645200
ref: 10
AXLE NO.2
5930645200
€ 13.50
11
5931345200
ref: 11
BUSH,AXLE
5931345200
€ 12.00
12
5931245200
ref: 12
BOOT,AXLE
5931245200
€ 10.50
13-1
5931445200
ref: 13-1
MODEL Z
BOLT,CALIPER HOUSING
€ 12.00
13-2
5931445201
ref: 13-2
MODEL D
BOLT
5931445201
€ 12.00
14
5912118410
ref: 14
BLEEDER
5912118410
€ 8.00
15
5912218410
ref: 15
CAP,BREATHER
5912218410
€ 6.00
16-1
5932445200
ref: 16-1
MODEL Z
COVER,INDICATOR
5932445200
€ 5.00
16-2
5932445201
ref: 16-2
MODEL D
COVER
5932445201
€ 5.00
17
0910310038
ref: 17
BOLT 10X37
0910310038
€ 3.00
