FRAME

GS450E 1983 (D2) GENERAL EXPORT (E01)

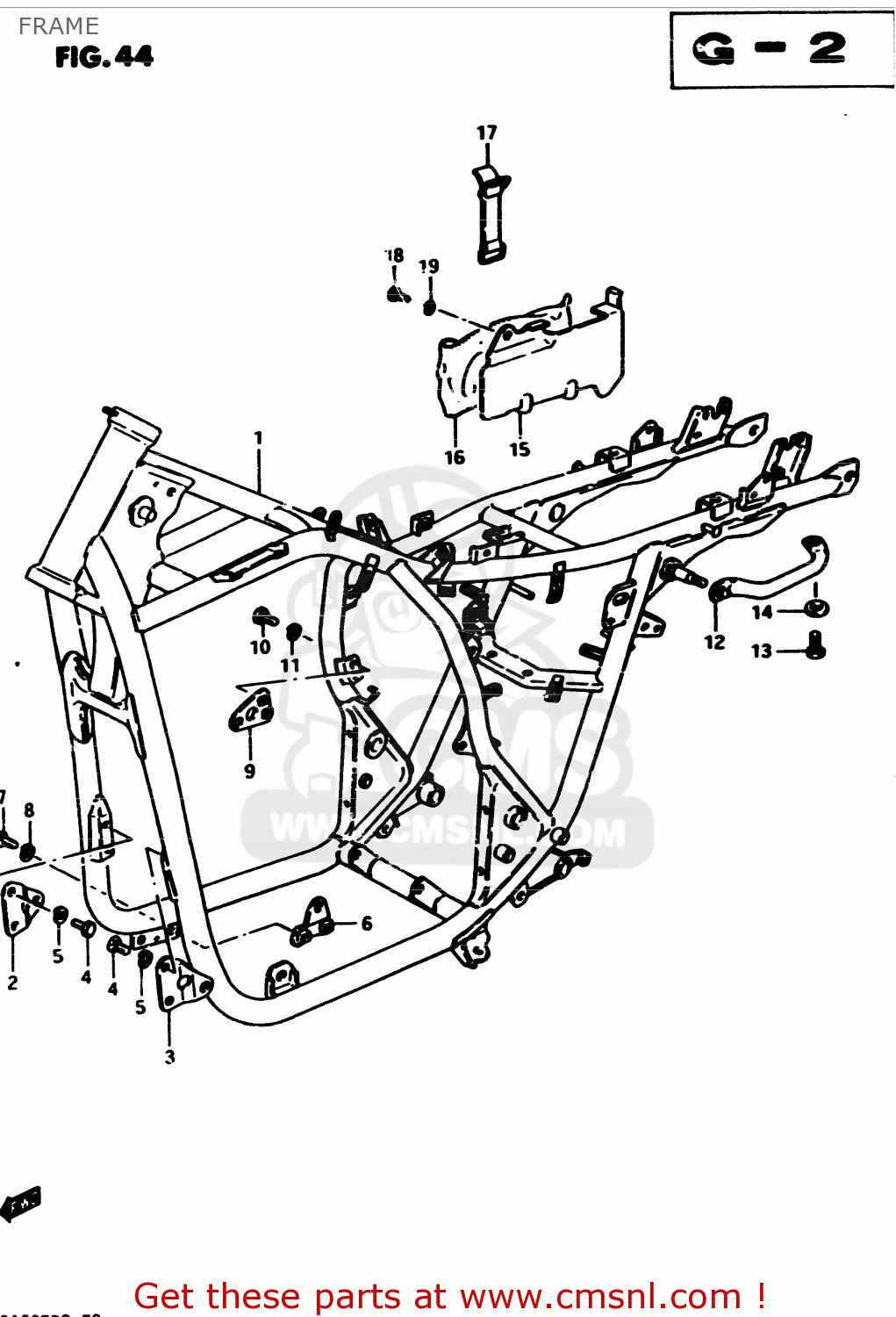

Frame diagram GS450E 1983 (D2) GENERAL EXPORT (E01)

FRAME GS450E 1983 (D2) GENERAL EXPORT (E01)
FRAME GS450E 1983 (D2) GENERAL EXPORT (E01)
FRAME GS450E 1983 (D2) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1-1
4110044400019
ref: 1-1
FRAME
€ 1,094.00
1-2
4110044440019
ref: 1-2
E15
FRAME (BLACK)
€ 856.00
1-3
4110044420019
ref: 1-3
E25
FRAME (BLACK)
€ 976.00
2
4199144400019
ref: 2
PLATE,ENG MTG NO.1,R
€ 10.00
3
4199244400019
ref: 3
PLATE,ENGINE MOUNTING,LEFT
€ 8.50
4
0110708168
ref: 4
BOLT
€ 2.00
5
0832121088
ref: 5
LOCK WASHER
0832121088
€ 2.00
6
4192044110019
ref: 6
PLATE,MOUNTING NO.2,LEFT
€ 0.00
7
0110708168
ref: 7
BOLT
€ 2.00
8
0832121088
ref: 8
LOCK WASHER
0832121088
€ 2.00
9
4197011500019
ref: 9
PLATE,MOUNTING NO.4,LEFT
€ 12.00
10
0110708168
ref: 10
BOLT
€ 2.00
11
0832121088
ref: 11
LOCK WASHER
0832121088
€ 2.00
12
4161011500
ref: 12
GRIP,FRAME HANDLE
4161011500
€ 17.00
13
0110708168
ref: 13
BOLT
€ 2.00
14
0832211088
ref: 14
WASHER
0832211088
€ 2.00
15
4743044400
ref: 15
HOLDER,TOOL
€ 11.50
16
0980006800
ref: 16
TOOL SET
€ 52.00
17
0946200072
ref: 17
BAND
0946200072
€ 3.50
18
0110706108
ref: 18
BOLT
€ 2.00
19
0832121068
ref: 19
LOCK WASHER
0832121068
€ 2.50
