CARBURETOR (MODEL D)

GS450S 1982 (Z) GENERAL EXPORT (E01)

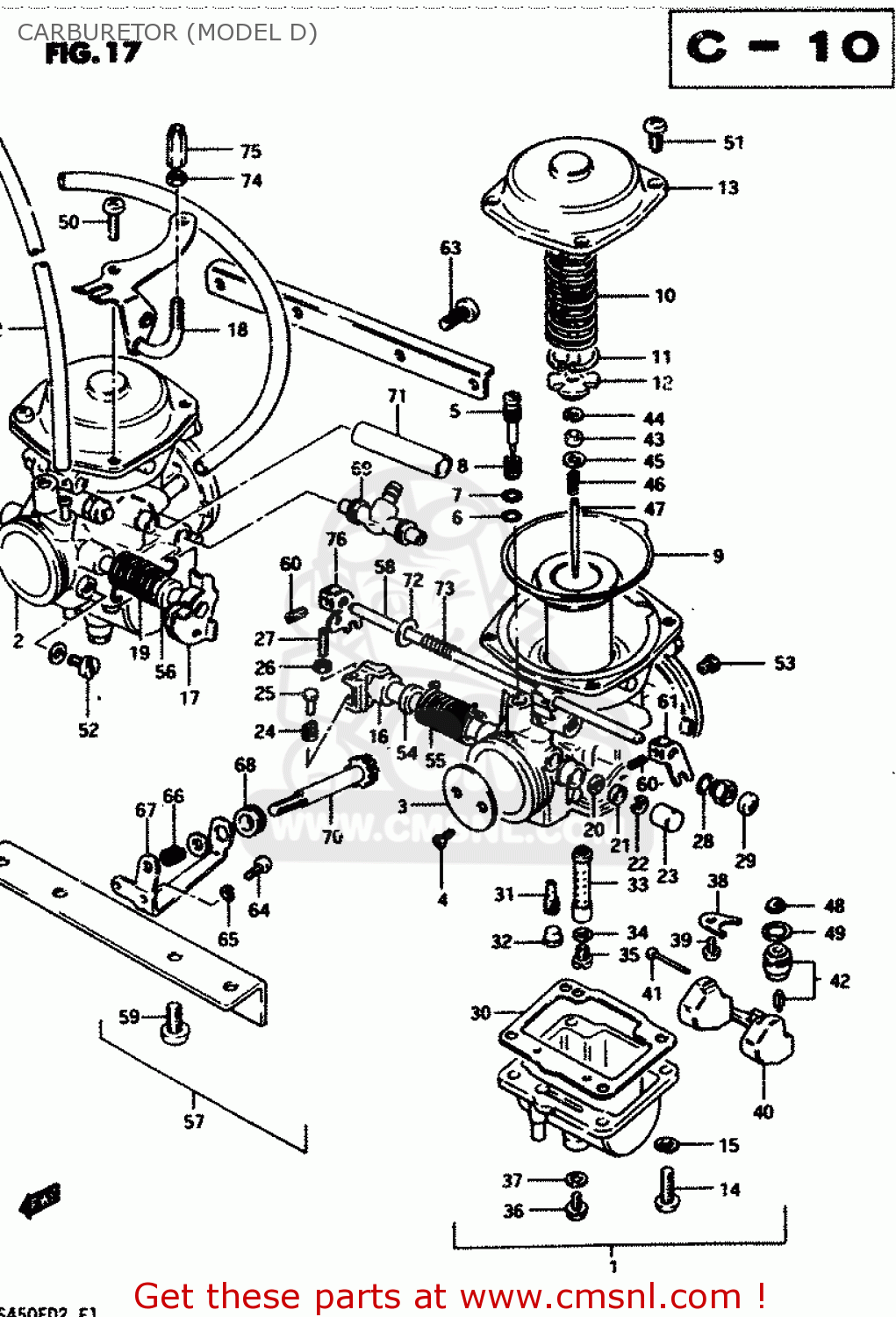

Carburetor (model d) diagram GS450S 1982 (Z) GENERAL EXPORT (E01)

CARBURETOR (MODEL D) GS450S 1982 (Z) GENERAL EXPORT (E01)
CARBURETOR (MODEL D) GS450S 1982 (Z) GENERAL EXPORT (E01)
CARBURETOR (MODEL D) GS450S 1982 (Z) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
1320144470
ref: 1
CARBURETOR ASSY, LH
€ 0.00
2
1320244470
ref: 2
CARBURETOR ASSY, RH
€ 0.00
3
1355144410
ref: 3
VALVE, THROTTLE
€ 0.00
4
1360444080
ref: 4
SCREW
1360444080
€ 3.50
5
1327947080
ref: 5
SCREW,PILOT AIR
1327947080
€ 11.50
6
1327844080
ref: 6
O-RING
€ 4.00
7
1327744080
ref: 7
GASKET
€ 2.00
8
1326847070
ref: 8
SPRING
1326847070
€ 5.00
9
1350038310
ref: 9
DIAPHRAGM ASSY
1350038310
€ 168.00
10
1350344400
ref: 10
SPRING
€ 7.50
11
1358144030
ref: 11
E RING
1358144030
€ 6.50
12
1338944030
ref: 12
HOLDER,GUIDE
1338944030
€ 10.50
13
1350238300
ref: 13
COVER
€ 22.00
14
0211205168
ref: 14
SCREW
0211205168
€ 2.50
15
0832121058
ref: 15
LOCK WASHER
0832121058
€ 2.00
16
1355044210
ref: 16
LH
SHAFT ASSEMBLY
€ 0.00
17
1355044220
ref: 17
RH
SHAFT,THROTTLE
€ 0.00
18
1362744460
ref: 18
RH
BRACKET,THROTTLE CABLE
€ 11.50
19
1357344210
ref: 19
RH
SPRING
€ 0.00
20
1365151010
ref: 20
SEAL
1365151010
€ 4.00
21
1355747070
ref: 21
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
22
1361744080
ref: 22
E RING
1361744080
€ 3.50
23
1357847070
ref: 23
CAP
1357847070
€ 5.50
24
1326844110
ref: 24
LH
SPRING,THROTTLE SCREW
€ 0.00
25
1356344110
ref: 25
LH
PIN,THROTTLE LEVER
€ 0.00
26
1360747070
ref: 26
LH
NUT
1360747070
€ 4.00
27
1360547080
ref: 27
LH
SCREW
1360547080
€ 7.00
28
1327847090
ref: 28
O RING
1327847090
€ 2.00
29
1368231210
ref: 29
CAP,STARTER VALVE
1368231210
€ 5.00
30
1325144080
ref: 30
GASKET,FLOAT CHAMBER (NAS)
1325144080
€ 9.50
31
0949245016
ref: 31
JET,PILOT(45)
0949245016
€ 12.00
32
1335744080
ref: 32
PLUG,NEEDLE JET
1335744080
€ 4.50
33
0949400357
ref: 33
JET,NEEDLE(R-0)
0949400357
€ 16.50
34
1333244080
ref: 34
WASHER,NEEDLE NOZZLE
€ 2.50
35
0949124005
ref: 35
JET
0949124005
€ 11.50
36
1324744080
ref: 36
PLUG,DRAIN
1324744080
€ 9.50
37
1324644080
ref: 37
GASKET (NAS)
1324644080
€ 3.50
38
1337311400
ref: 38
PLATE,NEEDLE VALVE FITING
1337311400
€ 7.00
39
0211204068
ref: 39
SCREW 4X6
0211204068
€ 2.00
40
1325044080
ref: 40
FLOAT
1325044080
€ 31.00
41
1325492311
ref: 41
PIN,FLOAT
1325492311
€ 2.00
42
1337011400
ref: 42
VALVE ASSEMBLY,NEEDLE
1337011400
€ 40.50
43
1338747010
ref: 43
RING
1338747010
€ 7.50
44
1339410010
ref: 44
CLIP
1339410010
€ 4.50
45
1338247010
ref: 45
WASHER,JET NEEDLE
1338247010
€ 3.00
46
1338847010
ref: 46
SPRING
1338847010
€ 7.00
47
1338344410
ref: 47
50X85-3
NEEDLE, JET
€ 11.50
48
1337665010
ref: 48
FILTER
€ 6.50
49
1337444080
ref: 49
O-RING,NEEDLE VALVE
1337444080
€ 6.00
50
0211205108
ref: 50
RH
SCREW
0211205108
€ 2.00
51
0211205088
ref: 51
LH:4,RH:2
SCREW
0211205088
€ 2.00
52
1360545410
ref: 52
RH
SCREW
€ 8.00
53
0949327001
ref: 53
JET,AIR(135)
0949327001
€ 11.00
54
1338744200
ref: 54
LH
SPACER,THROTTLE SHAFT
€ 0.00
55
1357344200
ref: 55
LH
SPRING
€ 0.00
56
1338744210
ref: 56
RH
SPACER,THROTTLE SHAFT
€ 0.00
57
1321044460
ref: 57
FLANGE ASSEMBLY,CARBURETOR
€ 185.00
58
1341044460
ref: 58
SHAFT,STARTER
1341044460
€ 19.00
59
0211206128
ref: 59
SCREW 6X12
0211206128
€ 2.00
60
1360547070
ref: 60
SCREW
1360547070
€ 5.50
61
1342244080
ref: 61
LEVER
1342244080
€ 10.00
62
1368718656
ref: 62
4.5X8X240
HOSE
1368718656
€ 14.00
63
0211205128
ref: 63
SCREW
€ 2.50
64
0211205088
ref: 64
SCREW
0211205088
€ 2.00
65
0832121058
ref: 65
LOCK WASHER
0832121058
€ 2.00
66
1327144220
ref: 66
SPRING,THROTTLE ADJUST
€ 3.50
67
1362144210
ref: 67
BRACKET,THROTTLE ADJUST
€ 0.00
68
1368116600
ref: 68
CAP,RUBBER
1368116600
€ 7.00
69
1368511400
ref: 69
NIPPLE,CARBURETOR
€ 19.50
70
1326747070
ref: 70
SCREW
1326747070
€ 21.00
71
1368311400
ref: 71
5X8X350
HOSE
€ 13.00
72
1342744460
ref: 72
WASHER,STARTER PLUNGER
€ 0.00
73
1343744500
ref: 73
SPRING,STARTER
€ 0.00
74
1366103010
ref: 74
NUT
1366103010
€ 3.50
75
1357798010
ref: 75
ADJUSTER
€ 0.00
76
1342244500
ref: 76
LEVER,STARTER
1342244500
€ 16.00
