REAR WHEEL (MODEL Z)

GS450S 1982 (Z) GENERAL EXPORT (E01)

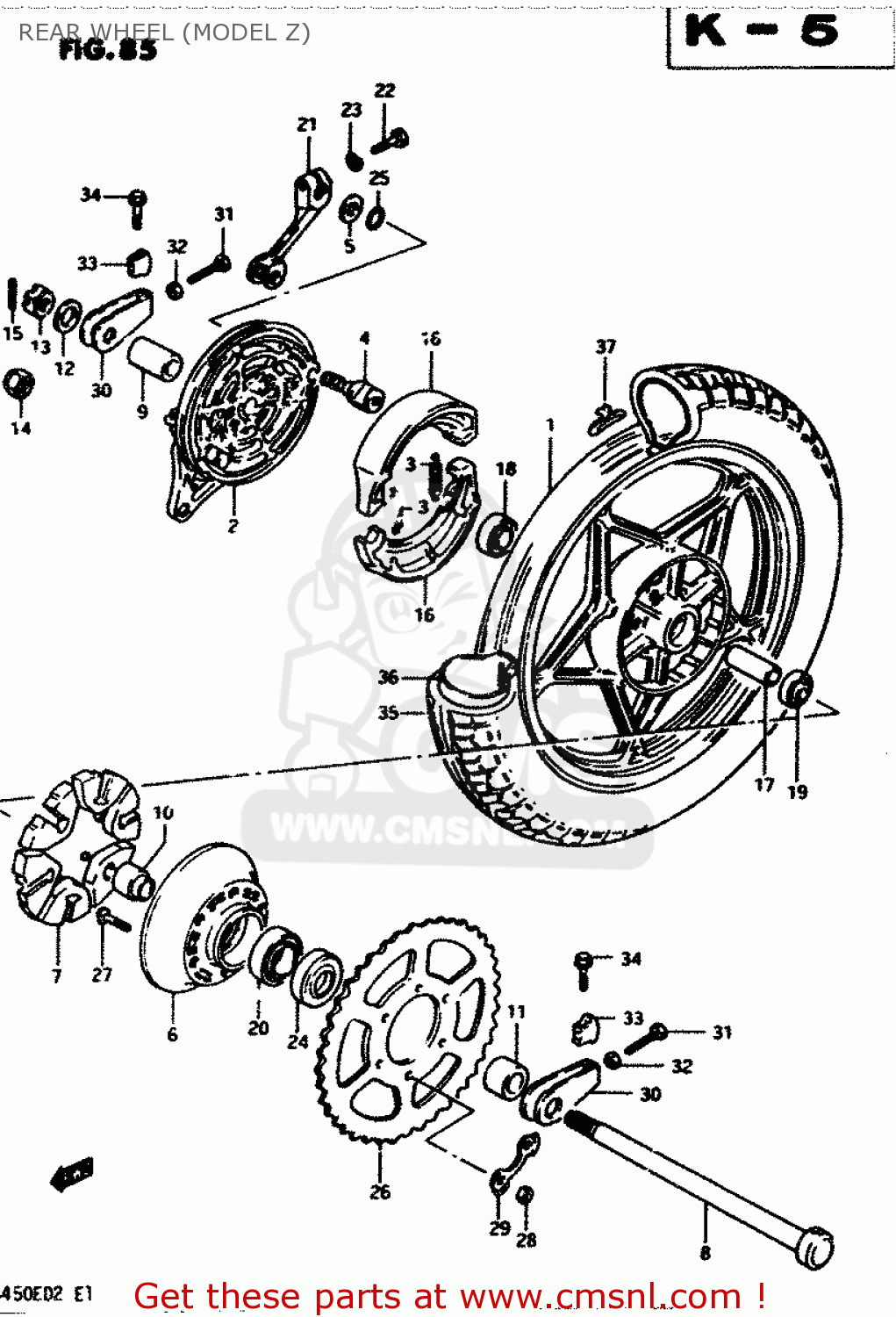

Rear wheel (model z) diagram GS450S 1982 (Z) GENERAL EXPORT (E01)

REAR WHEEL (MODEL Z) GS450S 1982 (Z) GENERAL EXPORT (E01)
REAR WHEEL (MODEL Z) GS450S 1982 (Z) GENERAL EXPORT (E01)
REAR WHEEL (MODEL Z) GS450S 1982 (Z) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
641504400012U
ref: 1
CASTING WHEEL,REAR 1.85-
€ 600.50
2
6421044060
ref: 2
PANEL,REAR HUB
6421044060
€ 111.50
3
5542030000
ref: 3
SPRING,BRAKE SHOE
5542030000
€ 3.50
4
5444008003
ref: 4
CAM,FRONT BRAKE
5444008003
€ 19.00
5
0916015001
ref: 5
WASHER (15X24X1.6)
0916015001
€ 2.50
6
6461144001
ref: 6
DRUM,REAR SPROCKET MOUNT
6461144001
€ 84.00
7
6465111300
ref: 7
ABSORBER,RR HUB SHOCK
6465111300
€ 12.50
8
6471144400
ref: 8
AXLE,REAR
6471144400
€ 33.50
9
0918017043
ref: 9
SPACER(17.5X28X44.8)
0918017043
€ 7.00
10
6473333000
ref: 10
SPACER,REAR HUB BEARING
6473333000
€ 20.00
11
0918017042
ref: 11
SPACER(17X30.5X22.3)
0918017042
€ 8.50
12
0916017013
ref: 12
WASHER (17X30X3.2)
0916017013
€ 2.00
13
0914116001
ref: 13
NUT
0914116001
€ 6.50
14
0915916002
ref: 14
E25
NUT
0915916002
€ 5.00
15
0411140308
ref: 15
PIN,COTTER
0411140308
€ 1.50
16
6441011301
ref: 16
SHOE,BRAKE
6441011301
€ 29.50
17
0918017056
ref: 17
SPACER (17.6X24X57)
€ 19.00
18
0814363037
ref: 18
BEARING
0814363037
€ 23.00
19
0814362037
ref: 19
BEARING
0814362037
€ 18.50
20
0811362057
ref: 20
BEARING
0811362057
€ 18.00
21
6445144400
ref: 21
LEVER,RR BRAKE CAM
6445144400
€ 42.00
22
0110706258
ref: 22
BOLT
€ 2.00
23
0832121068
ref: 23
LOCK WASHER
0832121068
€ 2.50
24
0928530001
ref: 24
SEAL,OIL(30.5X52X8)
0928530001
€ 20.00
25
0928015001
ref: 25
O-RING,BOSS
0928015001
€ 2.00
26
6451144000
ref: 26
SPROCKET,RR
6451144000
€ 59.00
27
0911910002
ref: 27
BOLT
0911910002
€ 3.50
28
0914010026
ref: 28
NUT
0914010026
€ 2.00
29
0916910006
ref: 29
WASHER
0916910006
€ 4.50
30
6141047200
ref: 30
ADJUSTER,CHAIN
6141047200
€ 58.00
31
0910408018
ref: 31
BOLT 8X50
0910408018
€ 3.00
32
0831012088
ref: 32
NUT
0831012088
€ 2.00
33
6143331000
ref: 33
SUPPORTER,CHAIN ADJUST
6143331000
€ 22.50
34
0151708508
ref: 34
BOLT
0151708508
€ 3.50
35-1
6510044111
ref: 35-1
TIRE,RR(3.50S18)
€ 0.00
35-2
6510044130
ref: 35-2
TIRE
€ 0.00
35-3
6510044135
ref: 35-3
E39
TIRE, REAR (3.75S 18)
€ 0.00
36-1
6520018010
ref: 36-1
TUBE ASSEMBLY,WHEEL,INNER
€ 35.00
36-2
6520033030
ref: 36-2
TUBE ASSEMBLY,WHEEL,INNER
€ 35.00
36-3
6520045030
ref: 36-3
E39
TUBE ASSEMBLY,WHEEL,INNER
€ 39.00
37-1
5541147001
ref: 37-1
BALANCER,WHEEL
5541147001
€ 4.00
37-2
5541247001
ref: 37-2
BALANCER,WHEEL
5541247001
€ 3.50
37-3
5541347001
ref: 37-3
BALANCER,WHEEL (10G)
5541347001
€ 6.50
