Buy Suzuki GS Parts Online


FRONT CALIPERS (E34)

GS450S 1982 (Z) GENERAL EXPORT (E01)

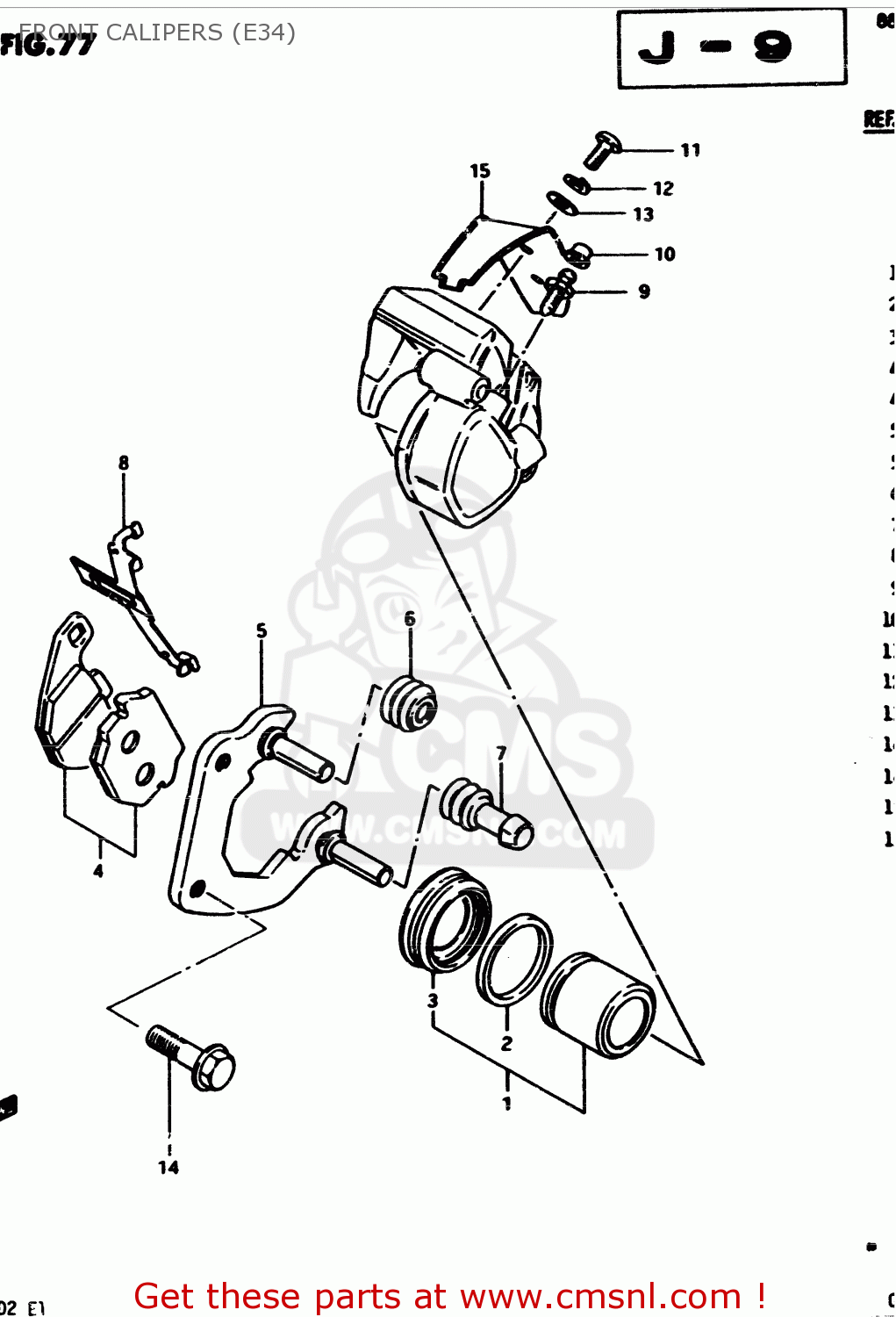

Front calipers (e34) diagram GS450S 1982 (Z) GENERAL EXPORT (E01)

FRONT CALIPERS (E34) GS450S 1982 (Z) GENERAL EXPORT (E01)
FRONT CALIPERS (E34) GS450S 1982 (Z) GENERAL EXPORT (E01)
FRONT CALIPERS (E34) GS450S 1982 (Z) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
0
5910033200
ref: 0
MODEL Z
CALIPERS ASSY, FRONT RH
€ 262.00
0
5930033200
ref: 0
MODEL Z
CALIPERS ASSY, FRONT LH
€ 299.00
0
5910033202
ref: 0
MODEL D
CALIPERS ASSY, FRONT RH
5910033202
€ 262.00
0
5930033202
ref: 0
MODEL D
CALIPERS ASSY, FRONT LH
€ 299.00
1
5930036830
ref: 1
PISTON SET
5930036830
€ 53.00
2
5910739100
ref: 2
SEAL,PISTON
5910739100
€ 18.00
3
5930836500
ref: 3
BOOT,PISTON
5930836500
€ 12.50
4-1
5930033810
ref: 4-1
MODEL Z
PAD SET,BRAKE (MCA)
€ 47.50
4-2
5930033812
ref: 4-2
MODEL D
PAD SET,BRAKE (MCA)
5930033812
€ 47.50
5-1
5915033200
ref: 5-1
HOLDER, CALIPERS RH
€ 59.00
5-2
5935036500
ref: 5-2
CARRIER,CALIPE
€ 52.00
6
5931236500
ref: 6
BOOT,AXLE
5931236500
€ 4.00
7
5931336500
ref: 7
INSULATOR,AXLE
5931336500
€ 5.50
8
5931536500
ref: 8
SPRING,PAD
5931536500
€ 11.00
9
5912118410
ref: 9
BLEEDER
5912118410
€ 8.00
10
5912218410
ref: 10
CAP,BREATHER
5912218410
€ 6.00
11
0211205128
ref: 11
SCREW
€ 2.50
12
0832121058
ref: 12
LOCK WASHER
0832121058
€ 2.00
13
0832221058
ref: 13
WASHER
€ 2.50
14-1
0151708308
ref: 14-1
MODEL Z
BOLT
0151708308
€ 3.50
14-2
0151708305
ref: 14-2
MODEL D
BOLT
€ 3.00
15-1
5931313000
ref: 15-1
MODEL Z
COVER
€ 4.50
15-2
5931313001
ref: 15-2
MODEL D
PROTECTOR,CALIPER
5931313001
€ 4.50
