REAR COMBINATION LAMP

GS450S 1982 (Z) GENERAL EXPORT (E01)

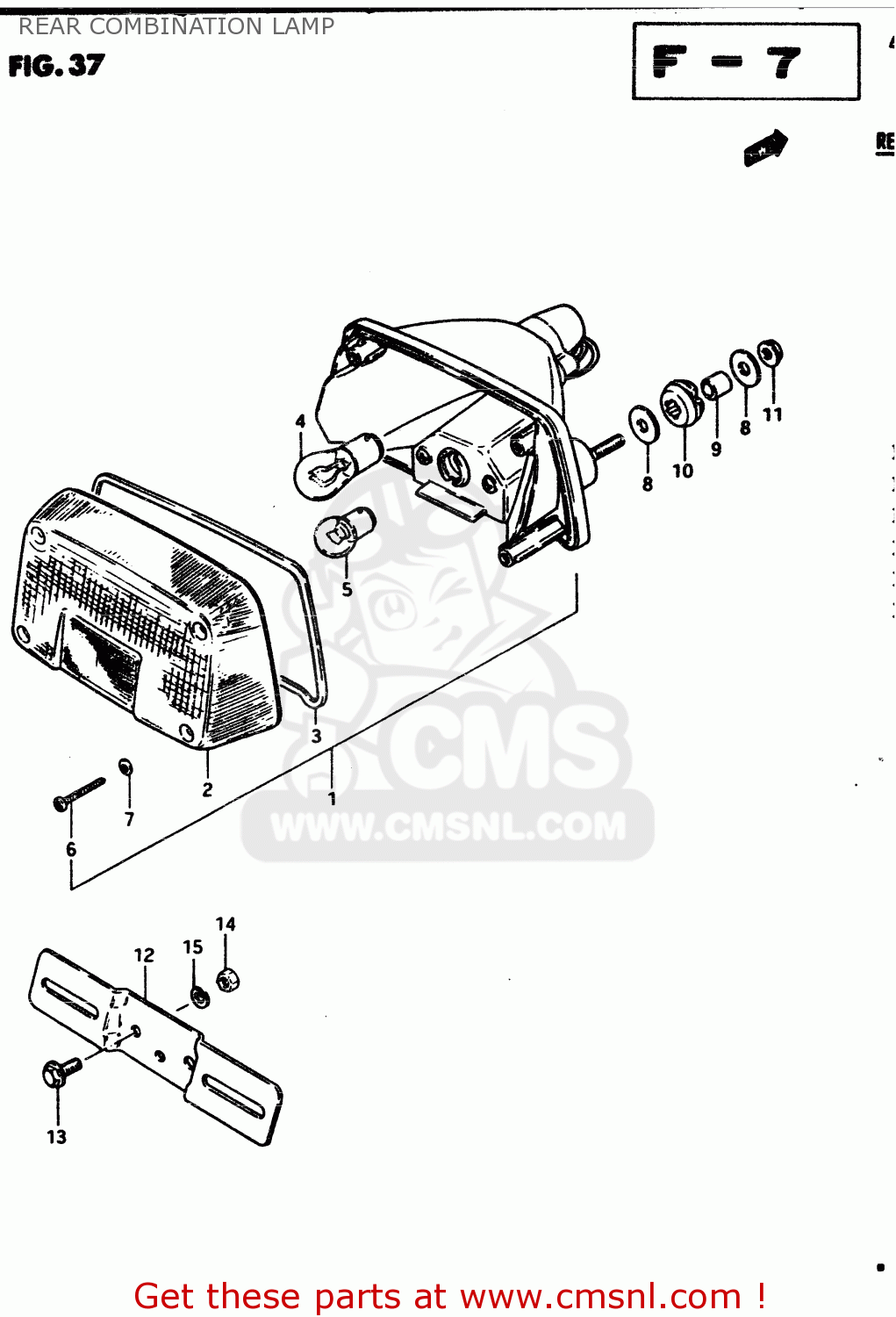

Rear combination lamp diagram GS450S 1982 (Z) GENERAL EXPORT (E01)

REAR COMBINATION LAMP GS450S 1982 (Z) GENERAL EXPORT (E01)
REAR COMBINATION LAMP GS450S 1982 (Z) GENERAL EXPORT (E01)
REAR COMBINATION LAMP GS450S 1982 (Z) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
3571011500
ref: 1
LAMP ASSY, REAR COMBINATION
€ 76.00
2
3571211500
ref: 2
LENS
€ 60.50
3
3571311520
ref: 3
GASKET
3571311520
€ 5.50
4
0947112035
ref: 4
BULB(12V23W)
0947112035
€ 5.50
5
0947112037
ref: 5
BULB
€ 7.00
6
0321104308
ref: 6
SCREW
0321104308
€ 1.50
7
3562743010
ref: 7
GASKET (NAS)
3562743010
€ 2.00
8
0916006060
ref: 8
WASHER
0916006060
€ 2.00
9
0918006006
ref: 9
SPACER (6.8X10X11.5)
0918006006
€ 3.00
10
0932009010
ref: 10
CUSHION
0932009010
€ 2.50
11
0831626068
ref: 11
NUT 6MM
0831626068
€ 2.00
12
3592733200
ref: 12
BRACKET, LICENSE PLATE
€ 10.00
13
0151706168
ref: 13
BOLT
€ 1.50
14
0831011068
ref: 14
NUT
0831011068
€ 2.50
15
0832121068
ref: 15
LOCK WASHER
0832121068
€ 2.50
