FRONT BRAKE HOSE (E34)

GS450S 1982 (Z) GENERAL EXPORT (E01)

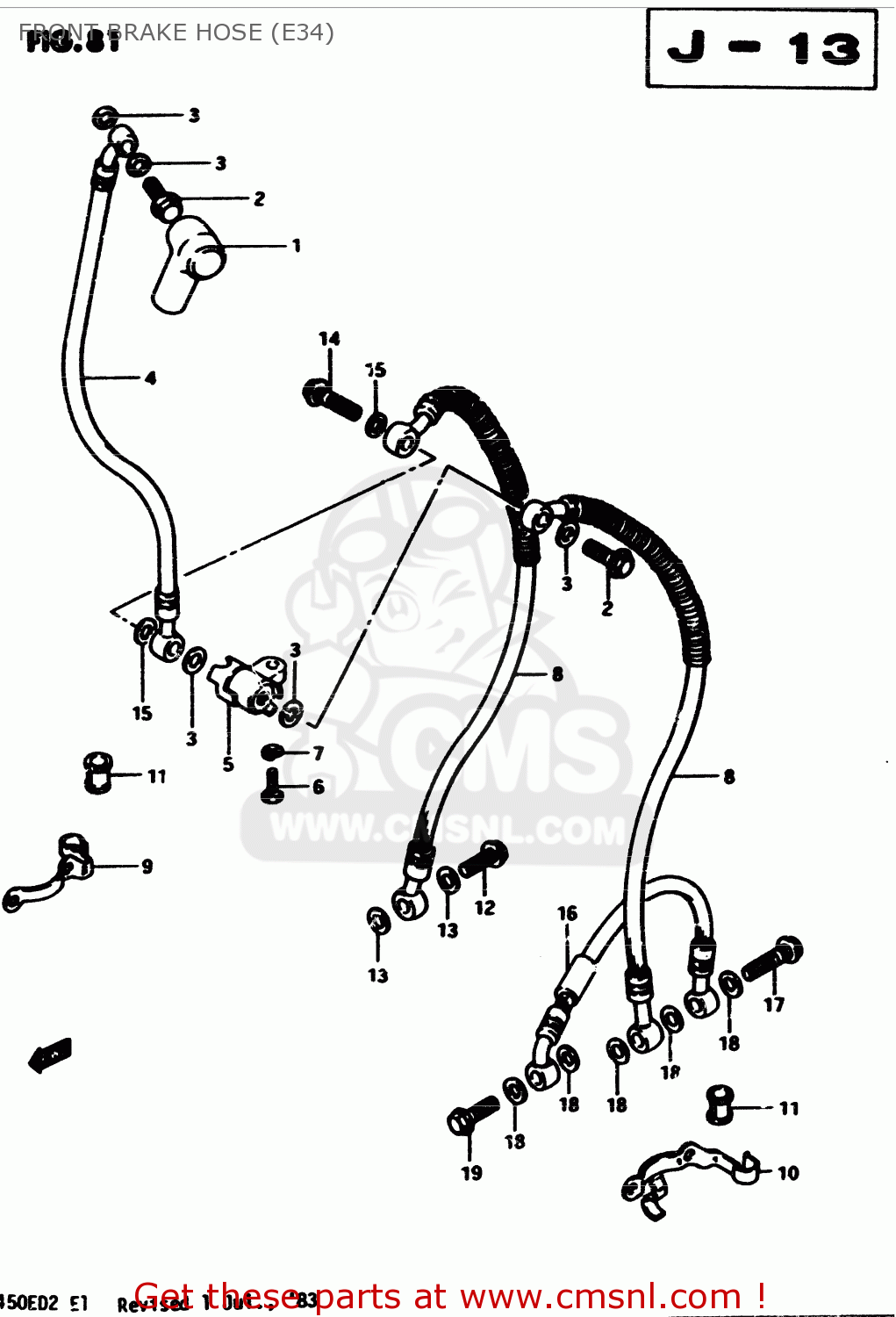

Front brake hose (e34) diagram GS450S 1982 (Z) GENERAL EXPORT (E01)

FRONT BRAKE HOSE (E34) GS450S 1982 (Z) GENERAL EXPORT (E01)
FRONT BRAKE HOSE (E34) GS450S 1982 (Z) GENERAL EXPORT (E01)
FRONT BRAKE HOSE (E34) GS450S 1982 (Z) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
5971149001
ref: 1
BOOT,MASTER CYLINDER
5971149001
€ 8.50
2-1
0936010007
ref: 2-1
MODEL Z
BOLT,UNION
0936010007
€ 6.50
2-2
0936010009
ref: 2-2
MODEL D
BOLT UNION
€ 6.50
3
0916110005
ref: 3
WASHER
0916110005
€ 2.00
4-1
5948033201
ref: 4-1
HOSE, BRAKE NO.1 (FOR NEUTRAL HANDLEBAR)
€ 58.50
4-2
5948045622
ref: 4-2
HOSE,FRONT BRAKE
5948045622
€ 59.00
5
5949145000
ref: 5
JOINT,BRAKE HOSE
5949145000
€ 29.00
6
0110706208
ref: 6
BOLT
0110706208
€ 2.00
7
0832121068
ref: 7
LOCK WASHER
0832121068
€ 2.50
8
5924044401
ref: 8
HOSE, BRAKE NO.2
€ 0.00
9
5926845900
ref: 9
CLAMP, HOSE RH
€ 10.00
10
5927045901
ref: 10
CLAMP,BRAKE HOSE,LEFT
€ 9.50
11
5924449000
ref: 11
BUSH,BRAKE HOSE GUIDE,NO.2
5924449000
€ 4.50
12-1
0936010007
ref: 12-1
MODEL Z
BOLT,UNION
0936010007
€ 6.50
12-2
0936010009
ref: 12-2
MODEL D
BOLT UNION
€ 6.50
13
0916110005
ref: 13
WASHER
0916110005
€ 2.00
14
0936010008
ref: 14
BOLT,UNION
0936010008
€ 7.00
15
0916110005
ref: 15
WASHER
0916110005
€ 2.00
16
5952013000
ref: 16
HOSE, ANTINOSE DIVE
€ 0.00
17
0936010008
ref: 17
BOLT,UNION
0936010008
€ 7.00
18
0916110005
ref: 18
WASHER
0916110005
€ 2.00
19
0936010021
ref: 19
BOLT UNION
0936010021
€ 5.50
