HEADLAMP HOUSING - FRONT FENDER

GS450S 1982 (Z) GENERAL EXPORT (E01)

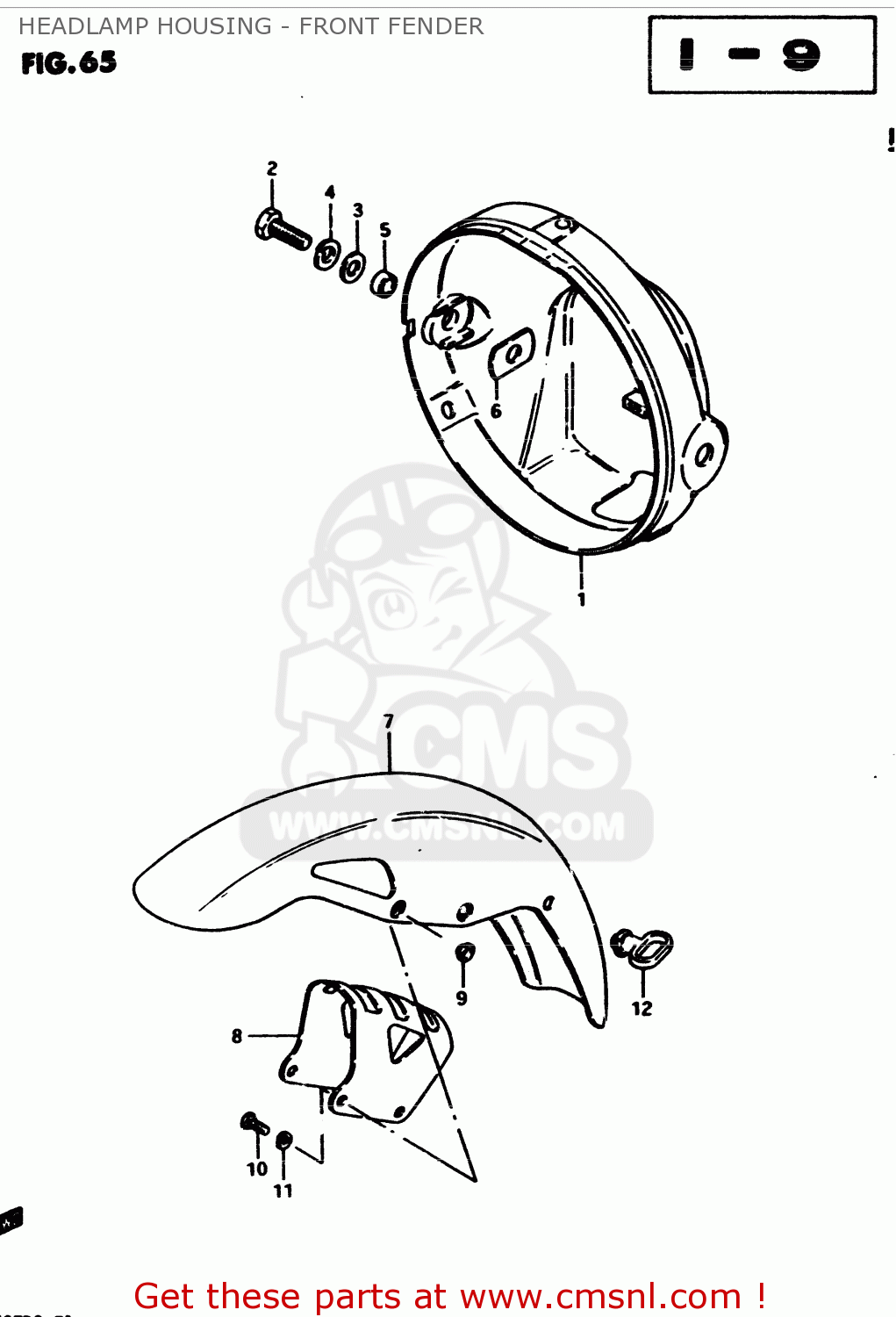

Headlamp housing - front fender diagram GS450S 1982 (Z) GENERAL EXPORT (E01)

HEADLAMP HOUSING - FRONT FENDER GS450S 1982 (Z) GENERAL EXPORT (E01)

HEADLAMP HOUSING - FRONT FENDER GS450S 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

5181133200
ref: 1

HOUSING,HEADLAMP

€ 39.00

2

0120408257
ref: 2

BOLT

€ 2.00

3

0832211088
ref: 3

WASHER

€ 2.00

4

0832121088
ref: 4

LOCK WASHER

€ 2.00

5

0918008030
ref: 5

SPACER (8.8X12X7)

€ 3.50

6

0932912002
ref: 6

CUSHION

€ 3.00

7-1

5311144400737
ref: 7-1

FENDER, FRONT

€ 122.50

7-2

531114440007P
ref: 7-2

FENDER,FRONT

€ 122.50

7-3

531114440008E
ref: 7-3
GS450SZE6,E24,E34,E3

FENDER, FRONT

€ 122.50

7-4

5311144400019
ref: 7-4
GS450SD E6,E15,E24,E

FENDER,FRONT

€ 122.50

7-5

531114440016D
ref: 7-5
GS450SD E6,E15,E24,E

FENDER,FR

€ 122.50

8

5311444400
ref: 8

BRACE,FRONT FENDER

€ 25.50

9

0916908032
ref: 9

WASHER

€ 11.50

10

0110708168
ref: 10

BOLT

€ 2.00

11

0832121088
ref: 11

LOCK WASHER

€ 2.00

12

5862121203A
ref: 12

GUIDE,CABLE

€ 7.50
