WIRING HARNESS
GS450S 1982 (Z) GENERAL EXPORT (E01)

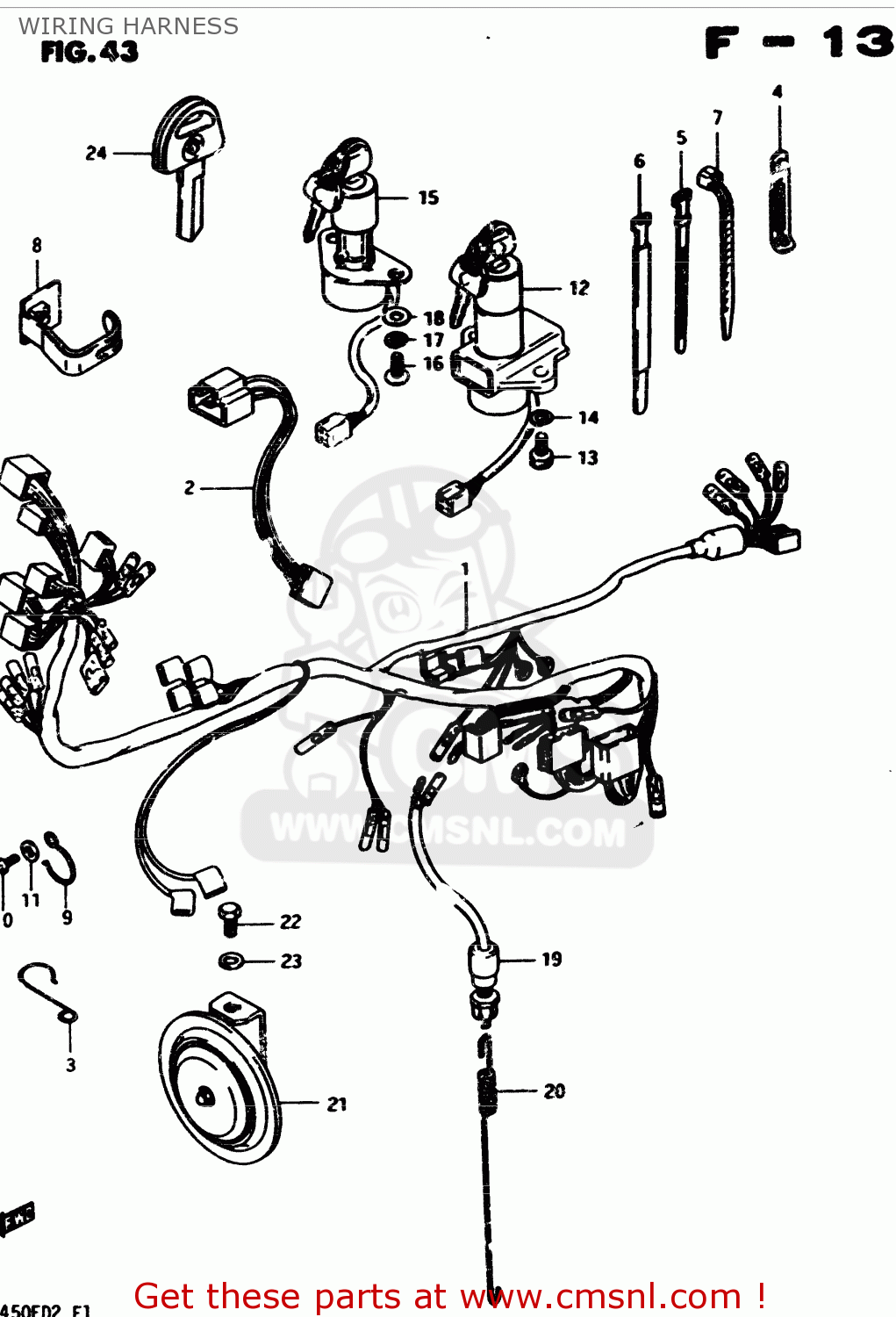

Wiring harness diagram GS450S 1982 (Z) GENERAL EXPORT (E01)
WIRING HARNESS GS450S 1982 (Z) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661011501
ref: 1-1
MODEL Z,FROM 36610-1
WIRING HARNESS
€ 150.50
1-2
3661044402
ref: 1-2
MODEL D
WIRING HARNESS
€ 125.00
2
3685234000
ref: 2
LEAD WIRE,HEADLAMP
€ 13.00
3
3661944401
ref: 3
FROM 36619-44400
CLIP,WIRING HARNESS
€ 0.00
4
0940406401
ref: 4
MODEL Z
CLAMP L:35
€ 2.50
5
0940712402
ref: 5
MODEL Z
CLAMP(L:120)
€ 3.00
6
0940718301
ref: 6
MODEL Z
CLAMP
€ 6.00
7-1
0940711401
ref: 7-1
MODEL D
CLAMP(L:95)
€ 2.50
7-2
0940714403
ref: 7-2
MODEL D
CLAMP(L:125)
€ 2.50
8
3665033201
ref: 8
CLAMP,WIRING HARNESS
€ 0.00
9
3661944001
ref: 9
FROM 36619-44000
GUIDE,WIRING HARNESS
€ 2.50
10
0211206128
ref: 10
SCREW 6X12
€ 2.00
11
0832211068
ref: 11
WASHER 6MM
€ 2.00
12-1
3710049201
ref: 12-1
MODEL Z
SWITCH ASSY,IGNITION
€ 141.00
12-2
3710045301
ref: 12-2
MODEL D
SWITCH ASSY,IGNITION
€ 127.50
12-3
3711049201
ref: 12-3
MODEL Z E15,E25
SWITCH ASSY,IGNITION
€ 86.00
13
3715247011
ref: 13
FROM 37152-47010
BOLT
€ 3.00
14
0832121068
ref: 14
LOCK WASHER
€ 2.50
15
3711005300
ref: 15
MODEL D E15,E25
SWITCH ASSY, IGNITION
€ 121.00
16
0211206167
ref: 16
SCREW
€ 2.50
17
0832121068
ref: 17
LOCK WASHER
€ 2.50
18
0832221068
ref: 18
WASHER
€ 2.00
19
3774004571
ref: 19
SWITCH ASSEMBLY,STOP LAMP
€ 22.00
20
0944306035
ref: 20
SPRING
€ 4.50
21-1
3850044410
ref: 21-1
HORN ASSEMBLY
€ 45.00
21-2
3850044490
ref: 21-2
E34
HORN
€ 45.00
22
0110708128
ref: 22
BOLT 8X12
€ 2.50
23
0832211088
ref: 23
WASHER
€ 2.00
24
3714647010
ref: 24
OPT
KEY,BLANK
€ 15.00
