SEAT TAIL COVER (MODEL D)

GS450S 1982 (Z) GENERAL EXPORT (E01)

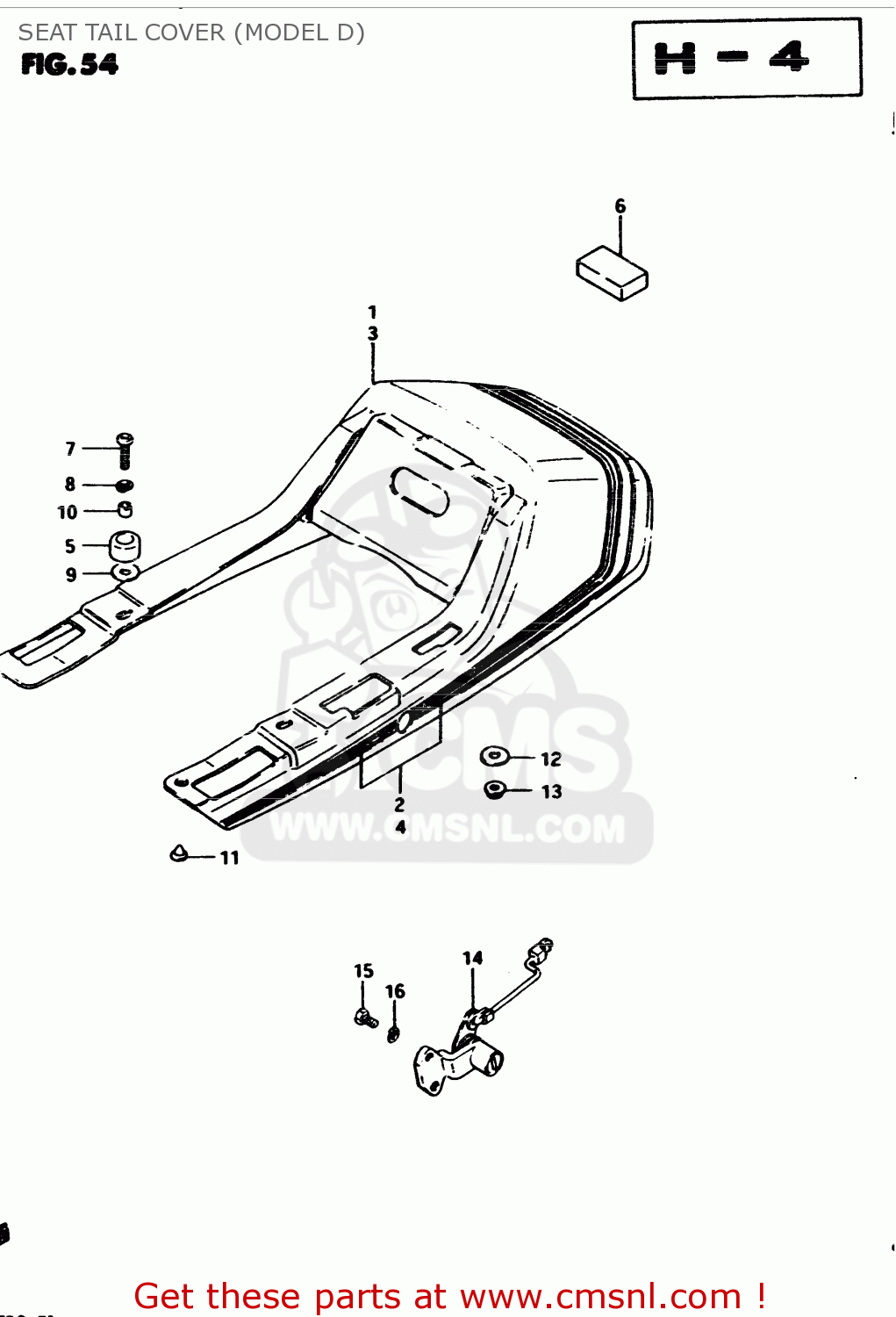

Seat tail cover (model d) diagram GS450S 1982 (Z) GENERAL EXPORT (E01)

SEAT TAIL COVER (MODEL D) GS450S 1982 (Z) GENERAL EXPORT (E01)
SEAT TAIL COVER (MODEL D) GS450S 1982 (Z) GENERAL EXPORT (E01)
SEAT TAIL COVER (MODEL D) GS450S 1982 (Z) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
455104442007P
ref: 1
COVER,SEAT TAI
€ 127.00
2
681604440090T
ref: 2
TAPE SET, SEAT TAIL COVER
€ 18.50
3
4551044420737
ref: 3
COVER,SEAT TAI
€ 127.00
4
681604440090S
ref: 4
TAPE SET, SEAT TAIL COVER
€ 18.50
5
4514944400
ref: 5
CUSHION,COVER
4514944400
€ 6.50
6
4556244410
ref: 6
CUSHION
€ 2.50
7
0211206308
ref: 7
SCREW 6X30
€ 2.50
8
0832121068
ref: 8
LOCK WASHER
0832121068
€ 2.50
9
0916006004
ref: 9
WASHER (6.5X24X1.6)
0916006004
€ 1.50
10
0918006073
ref: 10
SPACER
0918006073
€ 2.00
11
0932106016
ref: 11
CUSHION
0932106016
€ 2.00
12
0916906016
ref: 12
WASHER
0916906016
€ 1.50
13
0831921068
ref: 13
NUT 6MM
0831921068
€ 2.00
14
4570044400KEY
ref: 14
LOCK ASSEMBLY,SEAT
4570044400KEY
€ 46.50
15
0110705108
ref: 15
BOLT 5X10
0110705108
€ 1.50
16
0832121058
ref: 16
LOCK WASHER
0832121058
€ 2.00
