LEFT HANDLE SWITCH (MODEL Z)

GS450S 1982 (Z) GENERAL EXPORT (E01)

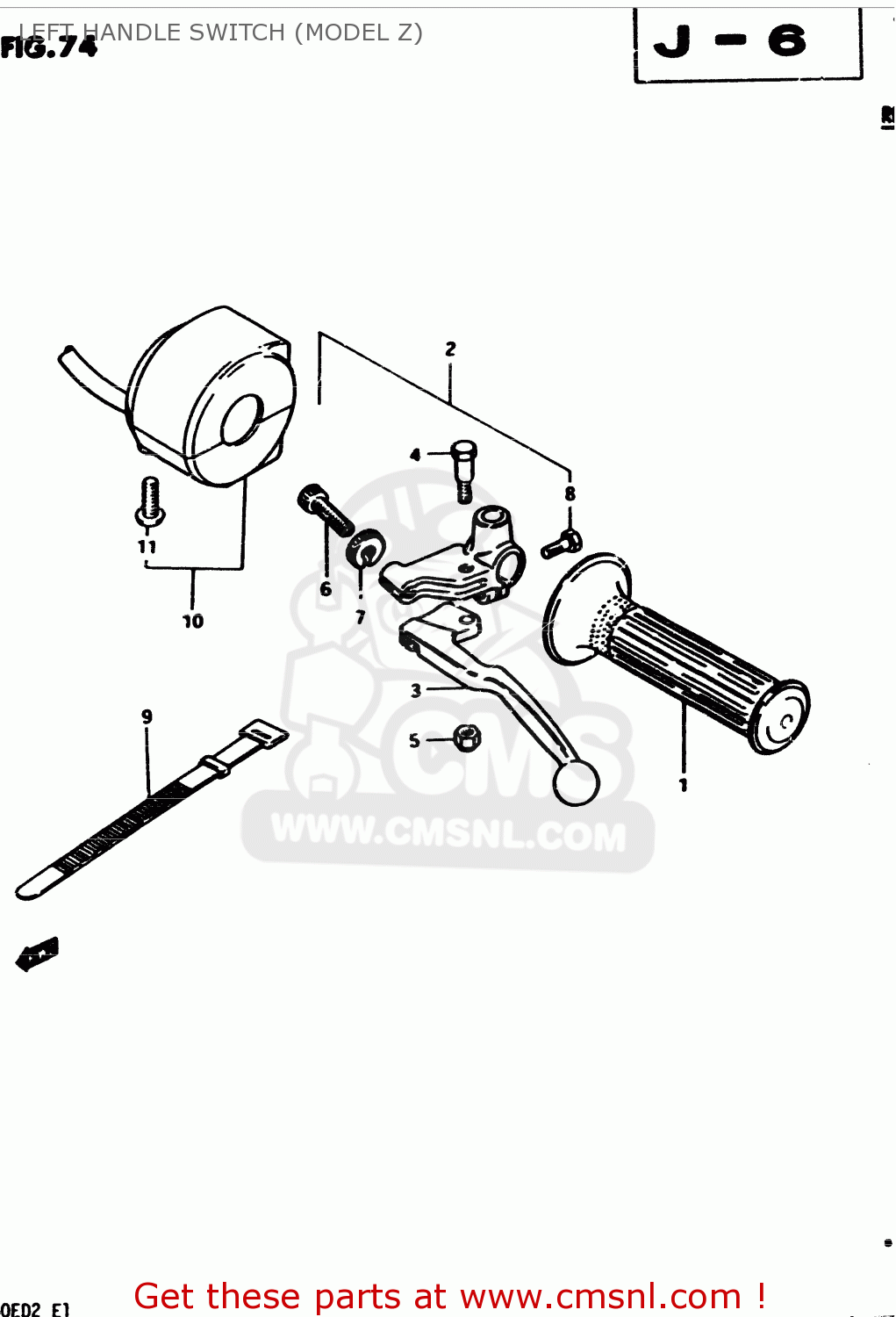

Left handle switch (model z) diagram GS450S 1982 (Z) GENERAL EXPORT (E01)

LEFT HANDLE SWITCH (MODEL Z) GS450S 1982 (Z) GENERAL EXPORT (E01)
LEFT HANDLE SWITCH (MODEL Z) GS450S 1982 (Z) GENERAL EXPORT (E01)
LEFT HANDLE SWITCH (MODEL Z) GS450S 1982 (Z) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
5721145030
ref: 1
GRIP,LEFT
5721145030
€ 18.50
2
5750049120
ref: 2
LEVER ASSY, CLUTCH
€ 49.50
3
5762049101
ref: 3
LEVER,CLUTCH
5762049101
€ 28.50
4
5743111011
ref: 4
BOLT,LEVER
5743111011
€ 6.00
5
0831921068
ref: 5
NUT 6MM
0831921068
€ 2.00
6
5744144400
ref: 6
ADJUSTER,CABLE
5744144400
€ 5.50
7
5744244400
ref: 7
NUT,CABLE ADJUSTER LOCK
5744244400
€ 4.00
8
5745118621
ref: 8
BOLT
€ 3.00
9
0940712402
ref: 9
CLAMP(L:120)
0940712402
€ 3.00
10-1
3740034410
ref: 10-1
SWITCH ASSY, HANDLE LH
€ 161.00
10-2
3740034590
ref: 10-2
E34
SWITCH ASSY, HANDLE LH
€ 0.00
11
0211205258
ref: 11
SCREW
0211205258
€ 2.00
