2ND AIR

GS500F 2008 (K8) USA (E03)

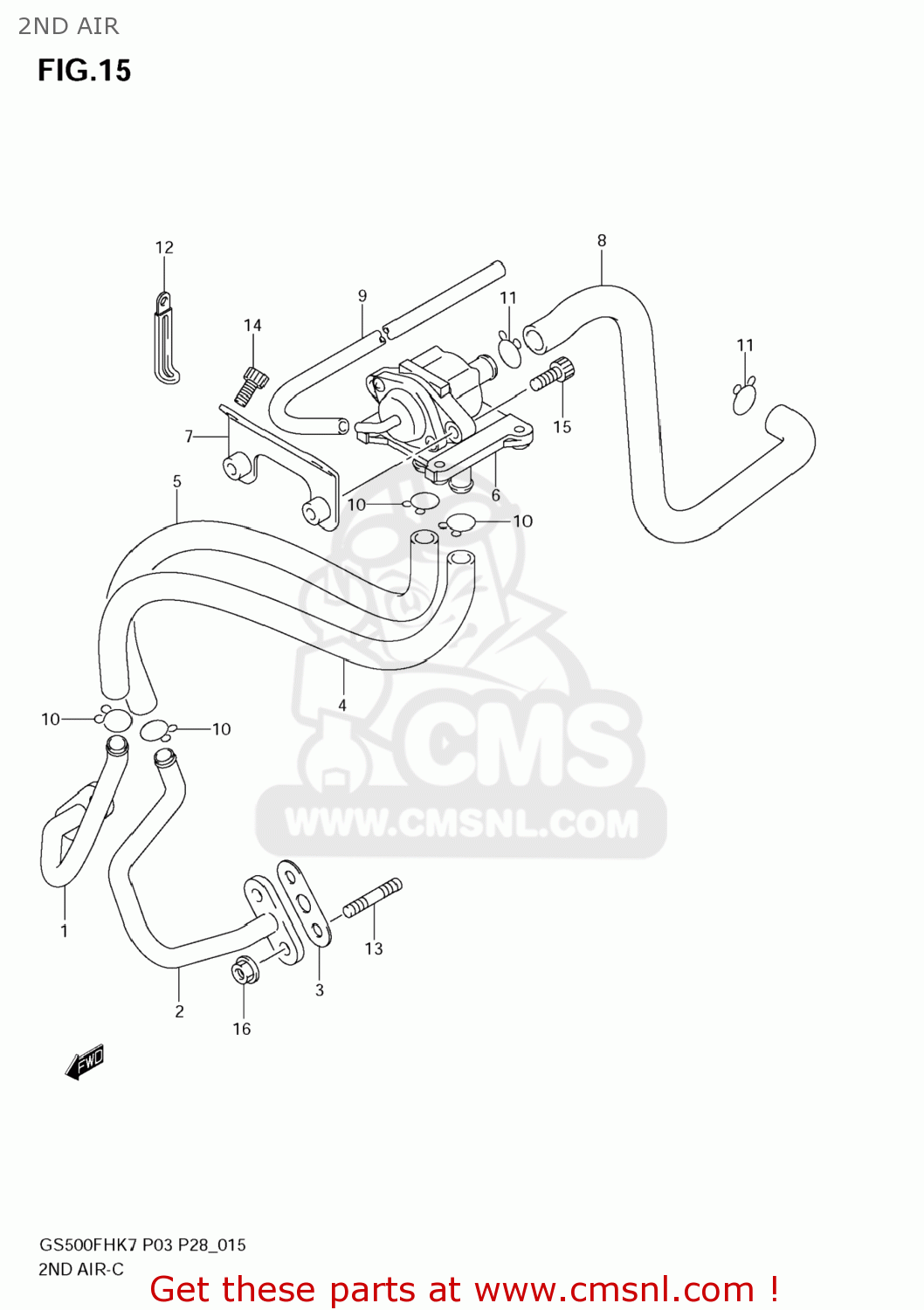

2nd air diagram GS500F 2008 (K8) USA (E03)

2ND AIR GS500F 2008 (K8) USA (E03)

2ND AIR GS500F 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1842001D01
ref: 1

PIPE,2ND AIR,R

€ 53.00

2

1843001D01
ref: 2

PIPE,2ND AIR,L

€ 40.00

3

1844112D10
ref: 3
18441-45C01

GASKET,2ND AIR (NAS)

€ 6.00

4

1844501D20
ref: 4

HOSE , 2ND AIR REED VALVE RH

€ 20.00

5

1844601D20
ref: 5

HOSE , 2ND AIR REED VALVE LH

€ 20.00

6

1845010F03
ref: 6

VALVE ASSY,2ND AIR

€ 202.00

7

1861001D20E0Z
ref: 7

BRACKET,2ND AI

€ 5.00

8

1871101D20
ref: 8

HOSE, 2ND AIRC

€ 7.00

9

0935940701600
ref: 9

HOSE(4X7X600)

€ 9.00

10

0940113409
ref: 10

CLIP

€ 2.50

11

0940115101
ref: 11

CLIP

€ 2.00

12

0940406429
ref: 12

CLAMP(L:45)

€ 2.50

13

014210616B
ref: 13

BOLT,STUD

€ 1.50

14

D15570612B
ref: 14

BOLT

€ 1.00

15

D71070616B
ref: 15

BOLT 6X16

€ 1.00

16

D83201006B
ref: 16

NUT

€ 3.00
