OIL COOLER (GS500FH)
GS500F 2008 (K8) USA (E03)

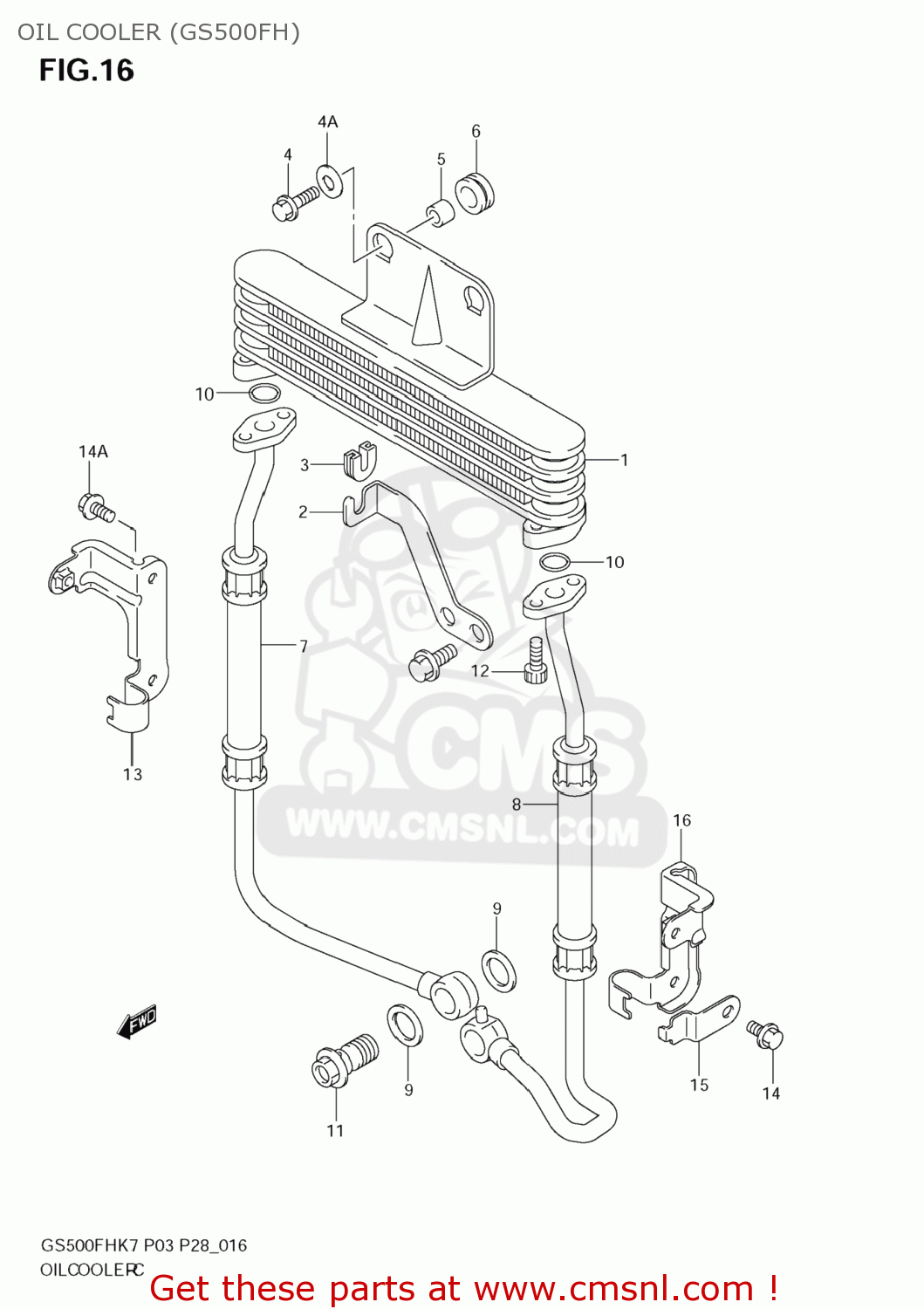

Oil cooler (gs500fh) diagram GS500F 2008 (K8) USA (E03)
OIL COOLER (GS500FH) GS500F 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1660001D01
ref: 1
COOLER ASSY,OIL
€ 727.50
2
166210BE00E0N
ref: 2
BRACKET,OILCOO
€ 2.00
3
16628C27A00J000
ref: 3
16628-27A00
CUSHION
€ 2.00
4
D15070620B
ref: 4
BOLT
€ 0.00
4A
D83229106B
ref: 4A
D8322-91065
WASHER
€ 0.50
5
0918006310
ref: 5
SPACER(6.5X10X10)
€ 2.00
6
0932010501
ref: 6
CUSHION
€ 5.50
7
1646001D00
ref: 7
HOSE,OIL COOLER,R
€ 278.00
8
1647001D00
ref: 8
HOSE,OIL COOLER,L
€ 367.50
9
0916814015
ref: 9
GASKET(14X20X1.5) (NAS)
€ 1.50
10
0928012005
ref: 10
09280-12012
O-RING
€ 5.00
11
0936014012
ref: 11
BOLT UNION
€ 10.00
12
D71070616B
ref: 12
BOLT 6X16
€ 1.00
13
1648001D00E0N
ref: 13
CLAMP, OIL HOS
€ 5.50
14
D15570616B
ref: 14
BOLT UH125&200
€ 1.00
14A
D15570612B
ref: 14A
BOLT
€ 1.00
15
1649201D00E0N
ref: 15
GUIDE, OIL HOS
€ 1.50
16
1649001D00E0N
ref: 16
CLAMP, OIL HOS
€ 5.00
