FRONT CALIPER

GS500F 2008 (K8) USA (E03)

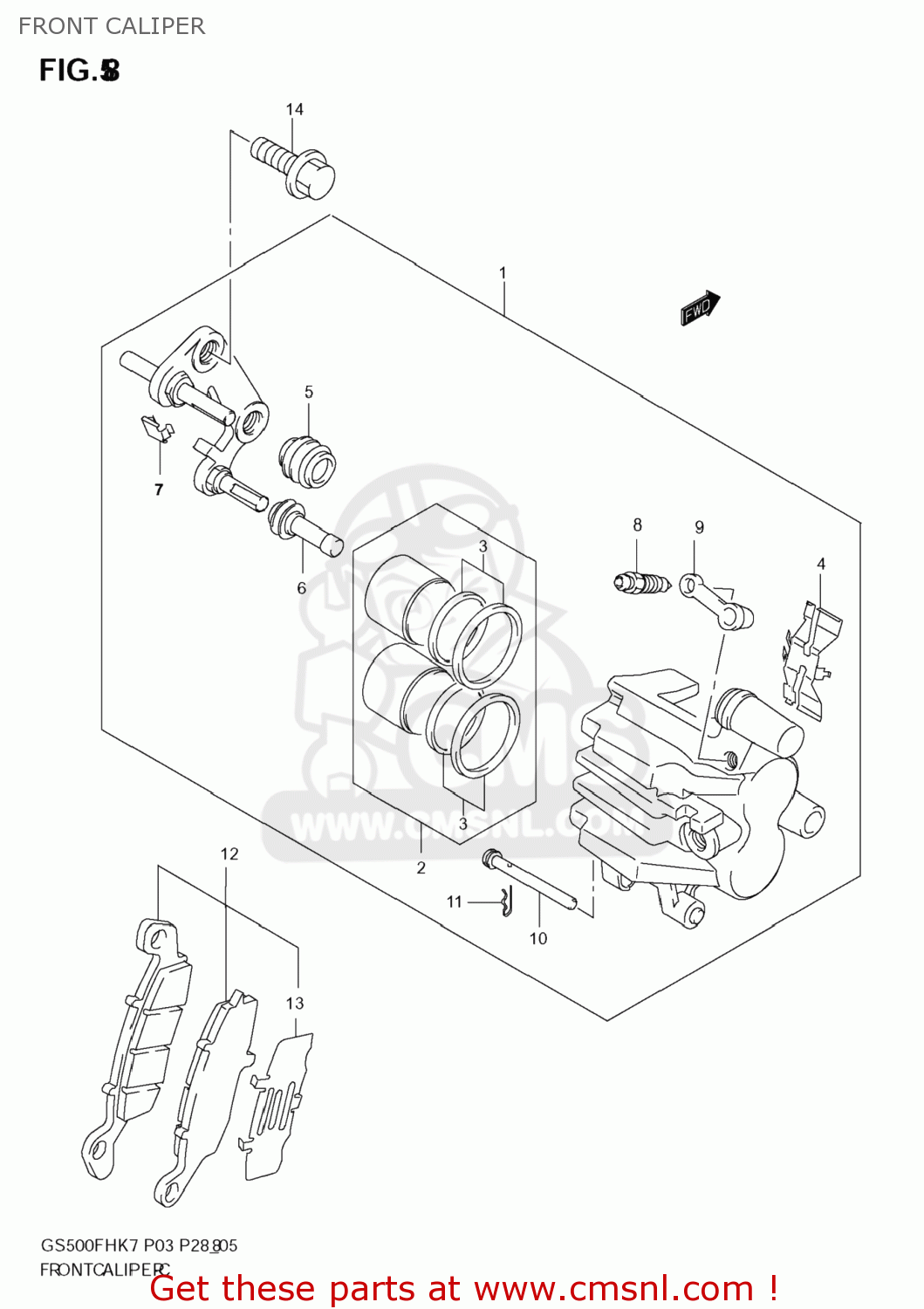

Front caliper diagram GS500F 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

5910001DA0999
ref: 1

CALIPER ASSY,F

€ 138.50

593000BE00
ref: 2

PISTON SET

€ 69.50

593000BE10
ref: 3

SEAL SET PISTO

€ 41.50

591150BE00
ref: 4

SPRING

€ 2.50

591120BE00
ref: 5

BOOT

€ 3.50

593130BE00
ref: 6

INSULATOR

€ 4.50

591160BE00
ref: 7

GUIDE

€ 3.00

591210AE00
ref: 8
59121-01A00

BLEEDER

€ 8.50

591220AE00
ref: 9

CAP

€ 4.50

591410BE00
ref: 10

PIN

€ 3.00

691420BE00
ref: 11

CLIP

€ 9.00

5910233890
ref: 12

PAD & SHIM SET (NAS)

€ 58.00

5917133D00
ref: 13

SHIM,PAD

€ 10.00

015501025B
ref: 14

BOLT

€ 3.00
