ELECTRICAL

GS500F 2008 (K8) USA (E03)

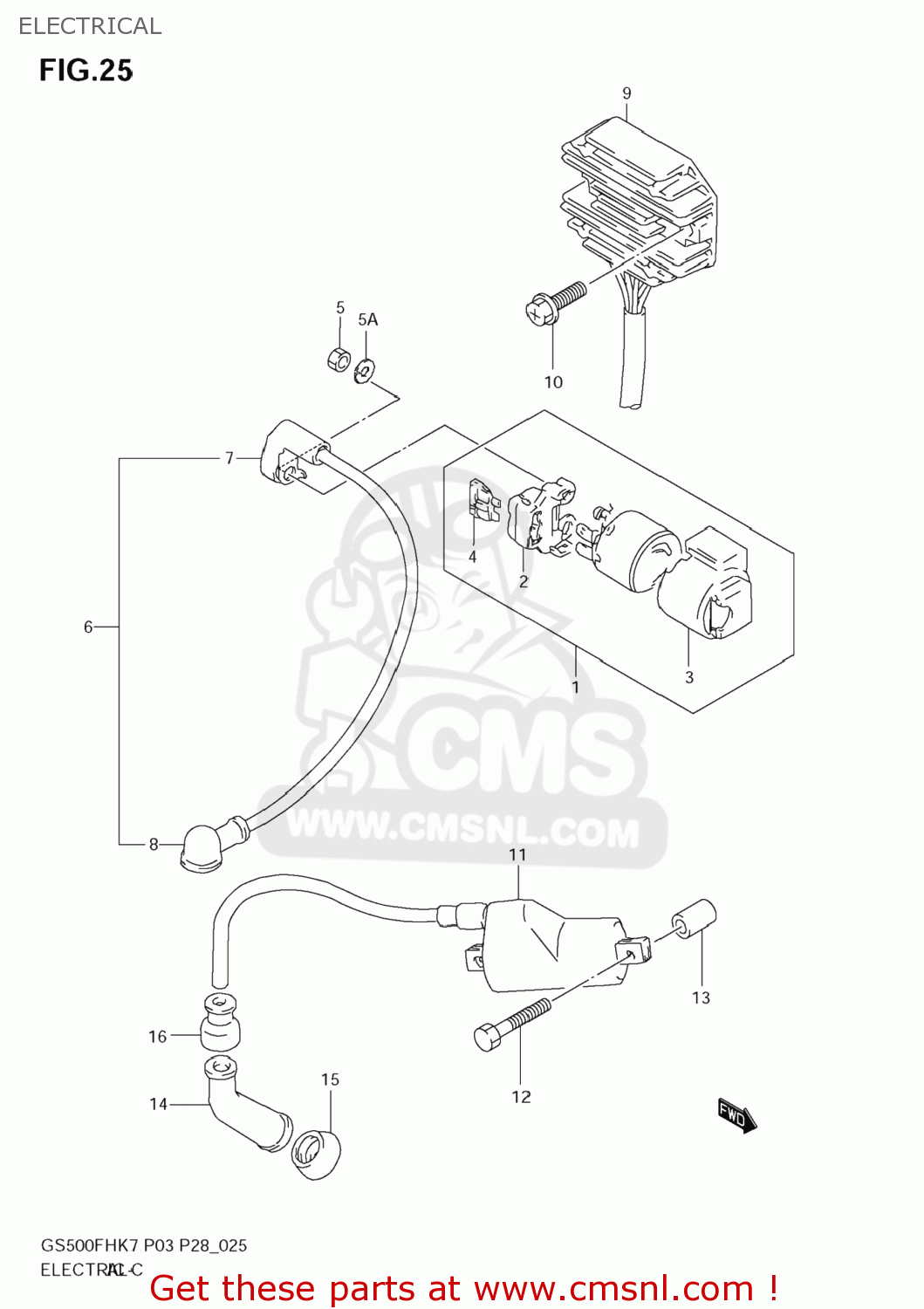

Electrical diagram GS500F 2008 (K8) USA (E03)

ELECTRICAL GS500F 2008 (K8) USA (E03)
ELECTRICAL GS500F 2008 (K8) USA (E03)
ELECTRICAL GS500F 2008 (K8) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3180001D00
ref: 1
RELAY ASSY,STARTING MOTOR
3180001D00
€ 107.00
2
3184101D00
ref: 2
TERMINAL,RELAY
3184101D00
€ 25.00
3
3189207D00
ref: 3
BRACKET,STARTING MOTOR RELAY
3189207D00
€ 12.00
4
0948120101
ref: 4
FUSE(20A)
0948120101
€ 2.00
5
D83100006A
ref: 5
NUT
€ 0.00
5A
D83215106A
ref: 5A
WASHER
€ 3.00
6
3381001DA0
ref: 6
WIRE,STARTER MOTOR LEAD
€ 32.50
7
3362401D10
ref: 7
CAP,STARTER RELAY TERMINAL
3362401D10
€ 8.50
8
3186148B10
ref: 8
CAP,STARTER MOTOR LEAD
3186148B10
€ 4.50
9
32800C01D00J000
ref: 9
RECTIFIER ASSY
32800C01D00J000
€ 74.00
10
021620620B
ref: 10
SCREW
€ 2.00
11
3341001D10
ref: 11
33410-01D00
COIL ASSEMBLY,IGNITION
€ 154.00
12
D15070640B
ref: 12
BOLT
€ 3.00
13
0918006198
ref: 13
SPACER(6.2X12X16)
0918006198
€ 3.50
14
3351022010
ref: 14
33510-97313
CAP ASSY,SPARK PLUG
3351022010
€ 16.50
15
3354132410
ref: 15
33541-38210
SEAL,SPARK PLUG
€ 7.00
16
3354238B00
ref: 16
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
