FRONT MASTER CYLINDER (GS500F)

GS500F 2008 (K8) USA (E03)

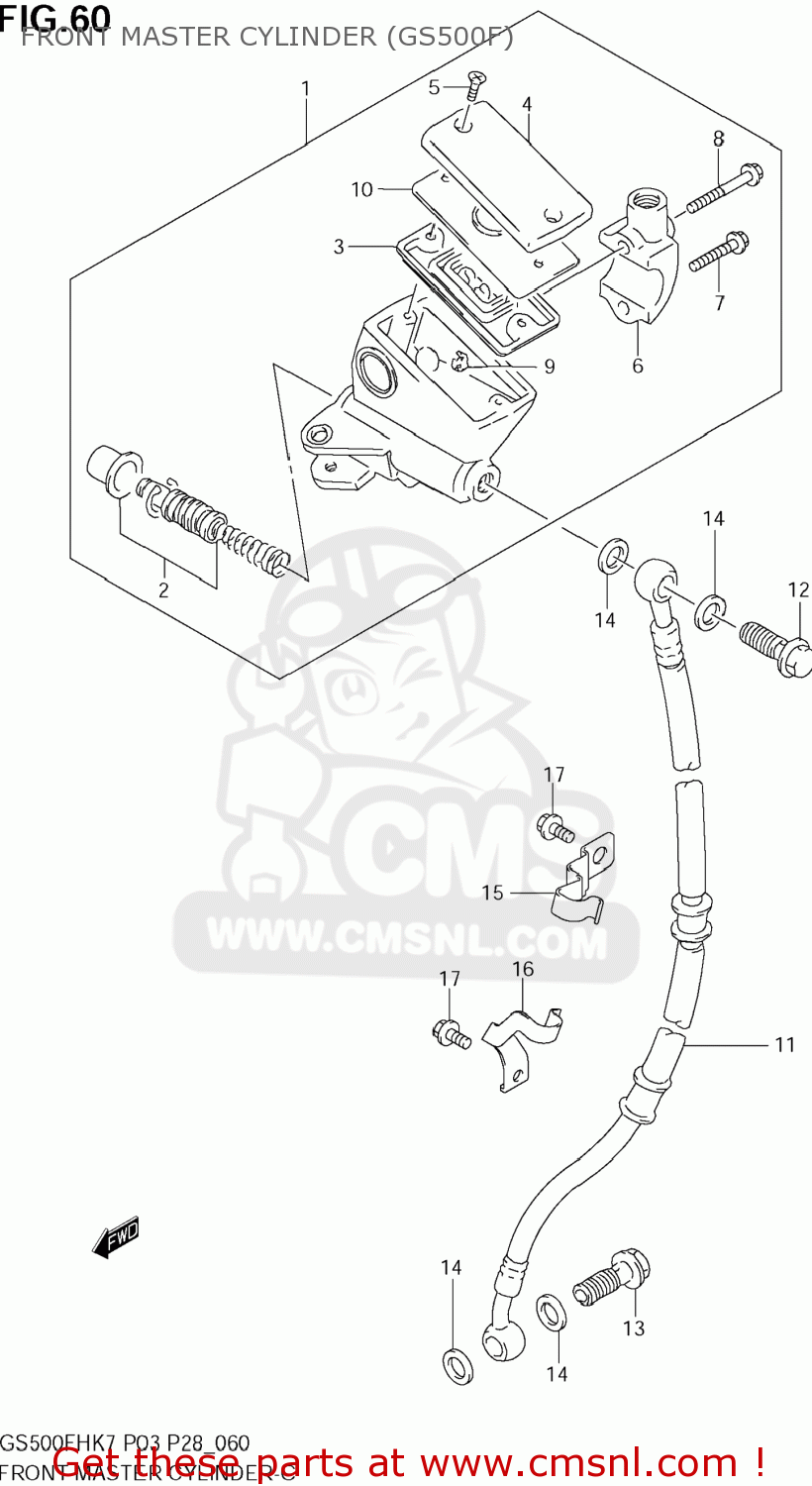

Front master cylinder (gs500f) diagram GS500F 2008 (K8) USA (E03)

FRONT MASTER CYLINDER (GS500F) GS500F 2008 (K8) USA (E03)

FRONT MASTER CYLINDER (GS500F) GS500F 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

596000AEA0
ref: 1

CYLINDER ASSY

€ 241.00

2

596000AE00
ref: 2

PISTON/CUP SET

€ 54.00

3

596670AE00
ref: 3

DIAPHRAGM

€ 8.50

4

596690AE01
ref: 4

CAP

€ 30.00

5

6968949300
ref: 5

SCREW

€ 1.50

6

596710AE01
ref: 6

HOLDER

€ 14.50

7

D15470625B
ref: 7

BOLT

€ 0.00

8

596750AE00
ref: 8
59675-19C10

BOLT UPPER

€ 4.00

9

5966435E50
ref: 9
59664-02E10

PROTECTOR

€ 1.00

10

596680AE00
ref: 10

PLATE

€ 8.00

11

5948001DB0
ref: 11

HOSE, FR BRAKE

€ 83.00

12

0936010061
ref: 12

BOLT UNION

€ 6.50

13

0936010062
ref: 13

BOLT UNION

€ 5.00

14

0916110009
ref: 14

WASHER(10X15X1.5)

€ 2.00

15

5926801DB0E0N
ref: 15

CLAMP, HOSE

€ 2.50

16

5926801DA0E0N
ref: 16

CLAMP, HOSE

€ 5.00

17

D15570612B
ref: 17

BOLT

€ 1.00
