HEADLAMP HOUSING (WITHOUT COWLING)

GS500F 2008 (K8) USA (E03)

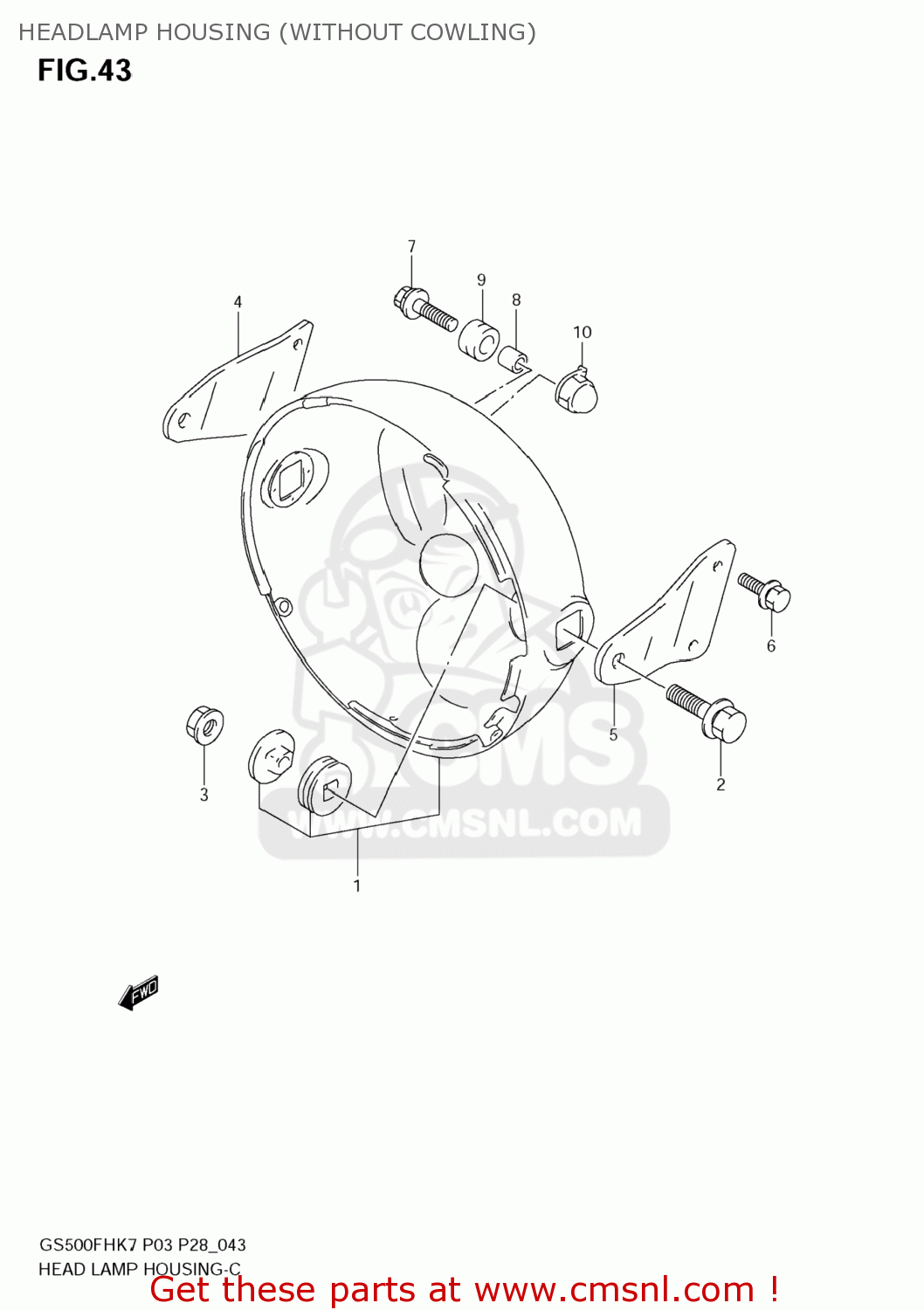

Headlamp housing (without cowling) diagram GS500F 2008 (K8) USA (E03)

HEADLAMP HOUSING (WITHOUT COWLING) GS500F 2008 (K8) USA (E03)

HEADLAMP HOUSING (WITHOUT COWLING) GS500F 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5181001D41
ref: 1

HOUSING,HEADLAMP

€ 113.00

2

0155008307
ref: 2

BOLT

€ 3.50

3

083161008B
ref: 3

NUT

€ 3.00

4

5185101D11YCH
ref: 4
51011-0BE00

STAY,HEADLAMP

€ 29.00

5

5186101D11YCH
ref: 5
51011-0BE00

STAY,HEADLAMP

€ 29.00

6

0155006127
ref: 6

BOLT

€ 2.50

7

0911806007
ref: 7
09118-06086

BOLT

€ 3.00

8

0918007004
ref: 8

SPACER(6.5X10.5X12)

€ 2.50

9

09320C10015J000
ref: 9
09320-10015

CUSHION

€ 1.00

10

5181506C00
ref: 10

PLATE,HEADLAMP

€ 5.00
