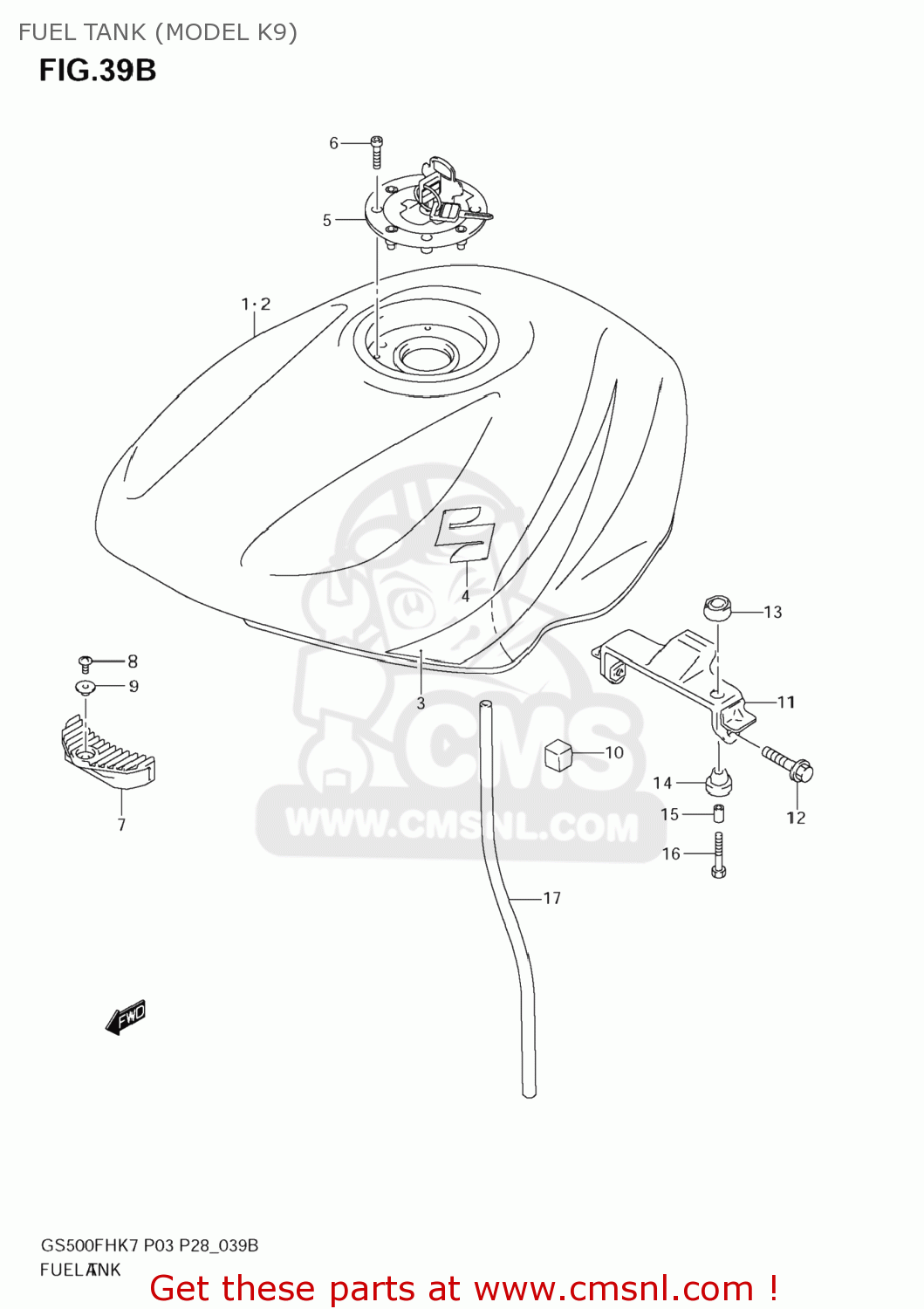

FUEL TANK (MODEL K9)

ref

part #

description

quantity

1-1

4910001DG0YAY
ref: 1-1

TANK ASSY,FUEL(BLACK)

€ 1,144.00

1-2

4910001DG0YKY
ref: 1-2

TANK ASSY,FUEL(BLUE)

€ 545.00

2-1

4910001DE0YAY
ref: 2-1

TANK ASSY,FUEL(BLACK)

€ 761.00

2-2

4910001DE0YKY
ref: 2-2

TANK ASSY,FUEL(BLUE)

€ 761.00

2-3

4910001DF0YAY
ref: 2-3

TANK ASSY,FUEL(BLACK)

€ 761.00

2-4

4910001DF0YKY
ref: 2-4

TANK ASSY,FUEL(BLUE)

€ 761.00

3-1

6811001DH0BPK
ref: 3-1

TAPE SET,FUEL TANK

€ 37.50

3-2

6811001DH0CWH
ref: 3-2

TAPE SET,FUEL TANK

€ 37.50

4

6811118G20
ref: 4

EMBLEM,S

€ 22.50

5-1

4420133820
ref: 5-1

CAP SET,FUEL TANK

€ 234.50

5-2

4420033890
ref: 5-2

CAP ASSY,FUEL TANK FILLER

€ 0.00

6

0910605017
ref: 6

BOLT(5X20)

€ 3.00

7

4451127E00
ref: 7

CUSHION,FUEL TANK FR

€ 11.00

8

D21160510B
ref: 8

SCREW, THROTTLE CABLE

€ 3.00

9

0916905012
ref: 9

WASHER

€ 3.00

10

4454101D00
ref: 10

CUSHION,FUEL TANK SIDE

€ 6.00

11

445500BE00
ref: 11

BRACKET, REAR

€ 25.50

12

015510840B
ref: 12

BOLT

€ 2.50

13

0932014017
ref: 13

CUSHION

€ 3.00

14

0932010038
ref: 14

CUSHION

€ 4.00

15

0918006271
ref: 15

SPACER(6.5X9X18)

€ 2.00

16

0911606214
ref: 16

BOLT(6X30)

€ 2.00

17

44423C0BE00J000
ref: 17
44423-01D00

HOSE, DRAIN

€ 0.00
