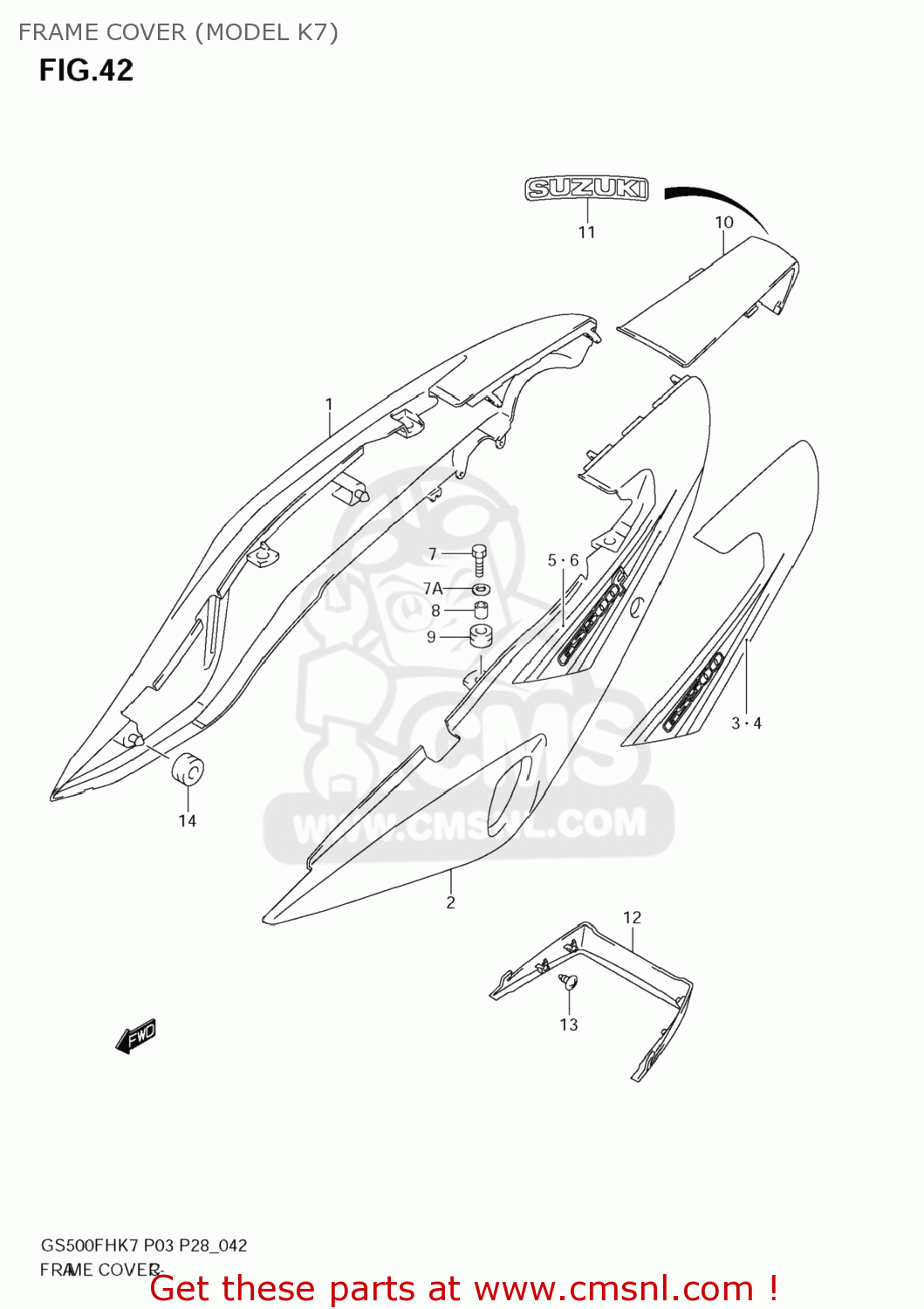

FRAME COVER (MODEL K7)

ref

part #

description

quantity

1-1

4711101DA0YAY
ref: 1-1

COVER, FRAME RH (BLACK)

€ 92.00

1-2

4711101DA0YBD
ref: 1-2

COVER FRAME WHITE

€ 84.50

2-1

472110BE00YAY
ref: 2-1

COVER, FRAME LH (BLACK)

€ 76.50

2-2

472110BE00YBD
ref: 2-2

COVER, FRAME G

€ 61.00

3-1

6813501DH0EBD
ref: 3-1

TAPE,FRAME COVE

€ 38.50

3-2

6813501DH0EBE
ref: 3-2

TAPE, RH NOT FOR US MARKET

€ 36.50

4-1

6814501DH0EBD
ref: 4-1

TAPE,FRONT COVE

€ 21.00

4-2

6814501DH0EBE
ref: 4-2

TAPE, LH NOT FOR US MARKET

€ 36.50

5-1

6813501DJ0EBF
ref: 5-1

TAPE, RH

€ 31.00

5-2

6813501DJ0EBG
ref: 5-2

TAPE,FRAME COVE

€ 33.00

6-1

6814501DJ0EBF
ref: 6-1

TAPE,FRAME COV

€ 31.00

6-2

6814501DJ0EBG
ref: 6-2

TAPE,FRAME COVE

€ 35.50

7

D15070620B
ref: 7

BOLT

€ 0.00

7A

D83229106B
ref: 7A
D8322-91065

WASHER

€ 0.50

8

0918006263
ref: 8

SPACER(6.5X9X9)

€ 2.00

9

0932009016
ref: 9

CUSHION

€ 2.50

10-1

4731101DA0YAY
ref: 10-1

COVER,FRAME CEN

€ 25.50

10-2

4731101DA0YBD
ref: 10-2
47311-01DA0-0JW

FAIRING PART

€ 36.00

11-1

6816501DB0CAD
ref: 11-1

TAPE,FRAME COVE

€ 23.00

11-2

6816501DB0EBH
ref: 11-2

TAPE,FRAME COVE

€ 26.50

12

4732101DA0291
ref: 12

COVER, LOWER

€ 56.50

13

035410410B
ref: 13

SCREW

€ 1.50

14

0932008018
ref: 14

CUSHION

€ 4.00
