CUSHION LEVER

GS500F 2008 (K8) USA (E03)

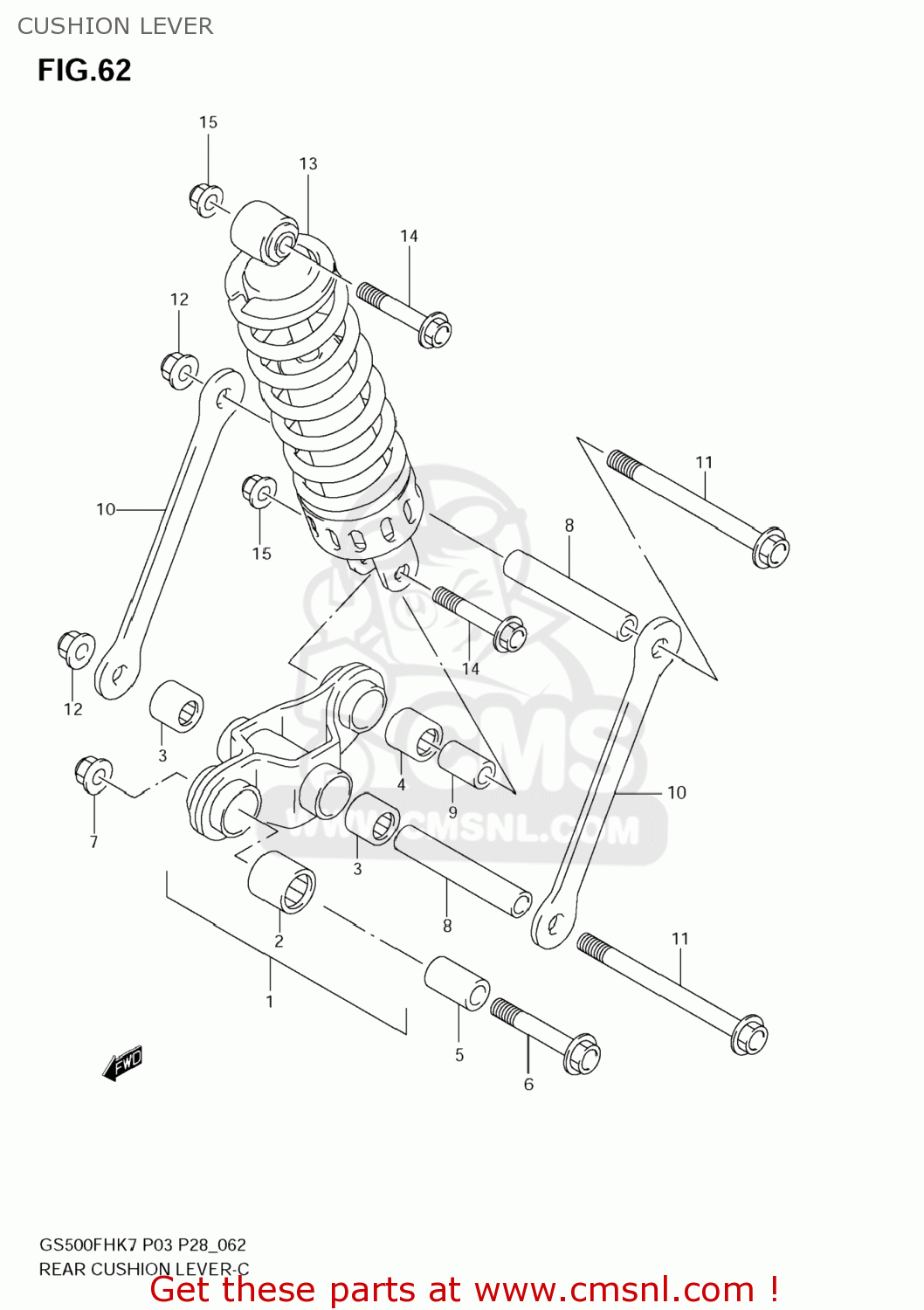

Cushion lever diagram GS500F 2008 (K8) USA (E03)

CUSHION LEVER GS500F 2008 (K8) USA (E03)

CUSHION LEVER GS500F 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

626010BE00
ref: 1

LEVER SET,REAR

€ 50.50

2

0926320064
ref: 2

BEARING(20X27X26)

€ 20.00

3

0926317037
ref: 3

BEARING(17X24X25)

€ 19.00

4

0926317034
ref: 4

BEARING(17X24X26)

€ 21.50

5

62684C01D00J000
ref: 5
62684-01D00

SPACER, FRONT (12X20X30)

62684C01D00J000

€ 17.00

6

0910312042
ref: 6

BOLT(12X57)

€ 6.00

7

093193112A
ref: 7

NUT

€ 0.00

8

0918012125
ref: 8

SPACER(12X17X89)

€ 22.00

9

62684C01D10J000
ref: 9
62684-40A10

SPACER, REAR (10X17X30)

62684C01D10J000

€ 3.50

10

62641C01D02J000
ref: 10
62641-01D02

ROD, REAR CUSHION

€ 22.00

11

09103C12041J000
ref: 11
09103-12041

09103C12041J000

12

083193112A
ref: 12

NUT

€ 4.00

13

6210001D21
ref: 13

ABSORBER ASSY,RR SHOCK

€ 421.50

14

0910310213
ref: 14

BOLT(10X52)

€ 4.00

15

083193110A
ref: 15

NUT

€ 3.00
