GENERATOR

GS500F 2008 (K8) USA (E03)

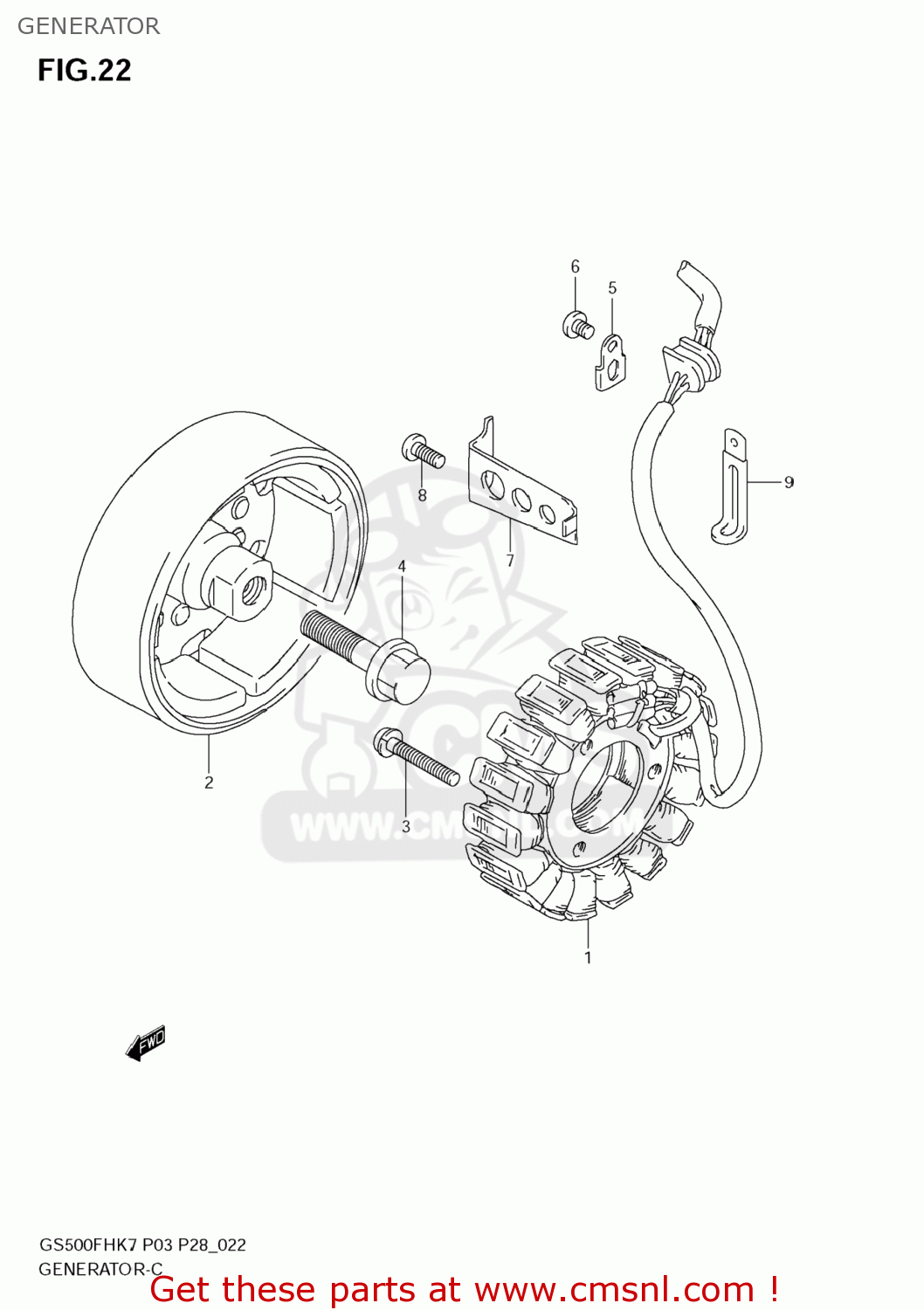

Generator diagram GS500F 2008 (K8) USA (E03)

GENERATOR GS500F 2008 (K8) USA (E03)

GENERATOR GS500F 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3140101D10
ref: 1

STARTER ASSY

€ 405.00

2

3140201D00
ref: 2

ROTOR

€ 356.50

3

021123530B
ref: 3

SCREW

€ 3.00

4

0910312004
ref: 4

BOLT(12X40)

€ 3.00

5

3149745000
ref: 5

CLAMP,GENERATOR LEAD WIRE

€ 1.50

6

021120508B
ref: 6

SCREW

€ 2.00

7

3149845000
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 2.00

8

021120610B
ref: 8

SCREW, CENTER SHAFT

€ 1.50

9

0940406429
ref: 9

CLAMP(L:45)

€ 2.50
