CAM CHAIN
GS650E 1982 (Z) USA (E03)

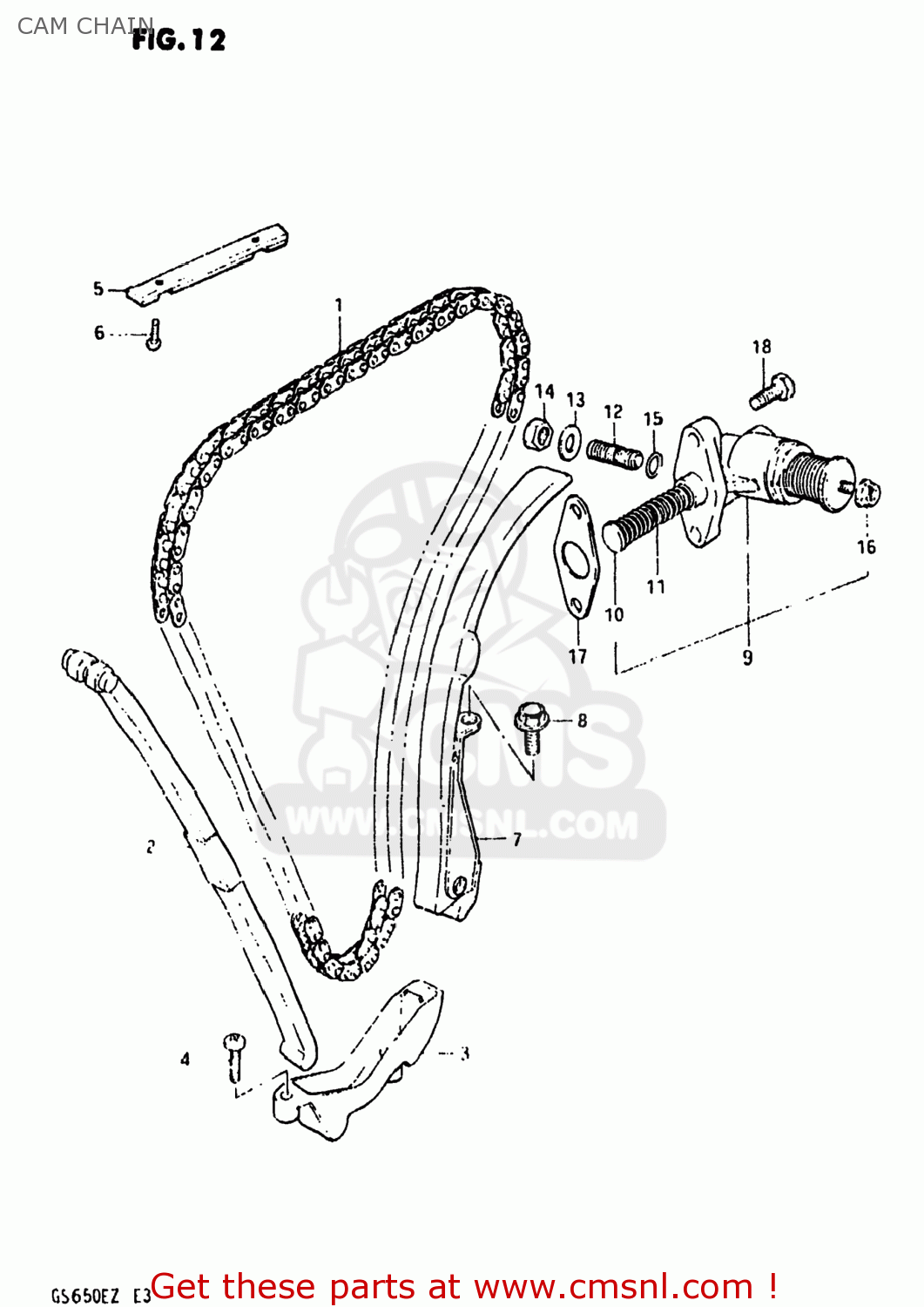

Cam chain diagram GS650E 1982 (Z) USA (E03)
CAM CHAIN GS650E 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1276047040
ref: 1
12760-17D01
CHAIN,CAMSHAFT DRIVE
€ 125.50
2
1277147041
ref: 2
GUIDE,CAM CHAIN NO.1
€ 215.50
3
1277647000
ref: 3
HOLDER,CAM CHAIN GUIDE
€ 12.00
4
0211206208
ref: 4
02112-06207
SCREW
€ 2.00
5
1278234500
ref: 5
GUIDE,CAM CHAIN NO.3
€ 12.50
6
0211205128
ref: 6
02112-05127
SCREW
€ 2.50
7
1281047040
ref: 7
TENSIONER,CAM CHAIN
€ 161.50
8
0151708168
ref: 8
01550-08167
BOLT
€ 3.00
9
1283047001
ref: 9
12830-0930V
ADJUSTER ASSEMBLY,TENSIONER
€ 167.00
10
1283347001
ref: 10
ROD,PUSH
€ 25.00
11
0944012017
ref: 11
SPRING
€ 2.50
12
1283845001
ref: 12
SCREW
€ 6.00
13
0832211088
ref: 13
08322-01087
WASHER
€ 2.00
14
0831012088
ref: 14
08310-00087
NUT
€ 2.00
15
0928006003
ref: 15
09280-06005
O-RING
€ 2.50
16-1
0915906017
ref: 16-1
08319-31067
NUT
€ 2.50
16-2
0831616068
ref: 16-2
08319-31067
NUT
€ 2.50
17
1283747000
ref: 17
12837-47010
GASKET,TENSIONER ADJUSTER (MCA)
€ 7.50
18
0912806024
ref: 18
09103-06212
SCREW (6X25)
€ 2.50
