FRONT FORK (MODEL Z)
GS650E 1982 (Z) USA (E03)

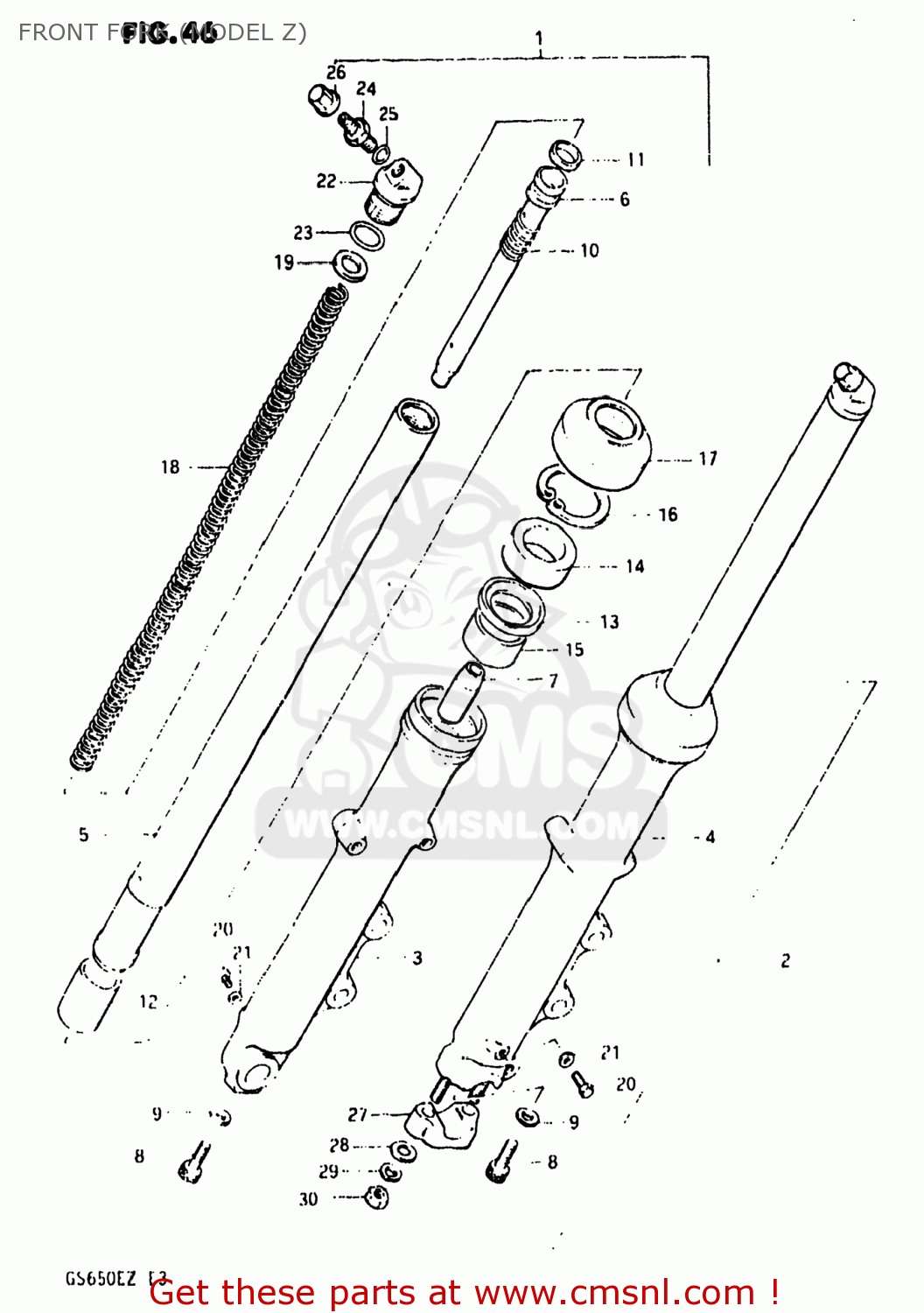

Front fork (model z) diagram GS650E 1982 (Z) USA (E03)
FRONT FORK (MODEL Z) GS650E 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110334540
ref: 1
DAMPER ASSEMBLY,RIGHT
€ 201.00
2
5110434540
ref: 2
DAMPER ASSEMBLY,LEFT
€ 233.00
3
5113034540
ref: 3
TUBE,FORK,OUTER,RIGHT
€ 131.00
4
5114034540
ref: 4
TUBE,OUTER,LEFT
€ 108.50
5
5111034540
ref: 5
TUBE,FORK,INNER
€ 118.00
6
5114634200
ref: 6
51146-47600
CYLINDER,FRONT FORK
€ 14.50
7
5119545030
ref: 7
PIECE,OIL LOCK
€ 16.00
8
5114748130
ref: 8
BOLT(8X27)
€ 3.50
9
5114831030
ref: 9
51148-36011
GASKET (NAS)
€ 4.00
10
5117745030
ref: 10
SPRING,FORK REBOUND
€ 4.00
11
5119631230
ref: 11
RING
€ 7.50
12
5115245400
ref: 12
BUSH,GUIDE
€ 14.00
13
5116845031
ref: 13
51168-30B00
SPACER,SEAL
€ 5.00
14
5115334200
ref: 14
51153-19D10
OIL SEAL,FRONT FORK
€ 14.00
15
5112145400
ref: 15
PISTON
€ 22.00
16
5115645440
ref: 16
51156-01A00
CIRCLIP,FORK OIL SEAL
€ 3.50
17
5157134200
ref: 17
51571-20520
BOOT
€ 19.50
18
5117134540
ref: 18
SPRING,FRONT
€ 23.50
19
5119245030
ref: 19
51192-47200
WASHER
€ 2.50
20
0110706088
ref: 20
09100-06157
BOLT
€ 2.50
21
5118331030
ref: 21
GASKET,DRAIN,PLUG (NAS)
€ 4.00
22
5135145440
ref: 22
BOLT,FORK INNER TUBE
€ 17.00
23
5111731030
ref: 23
51181-31030
O-RING
€ 3.50
24
5129345440
ref: 24
VALVE,AIR
€ 17.00
25
5111745440
ref: 25
09280-06005
O-RING
€ 2.50
26
5129445440
ref: 26
CAP
€ 9.50
27
5113244040
ref: 27
51132-44040-15T
HOLDER,AXLE
€ 38.50
28
0832221088
ref: 28
08322-01087
WASHER
€ 2.00
29
0832121088
ref: 29
08321-01087
LOCK WASHER
€ 2.00
30
0831012088
ref: 30
08310-00087
NUT
€ 2.00
