OIL PUMP - OIL FILTER
GS650E 1982 (Z) USA (E03)

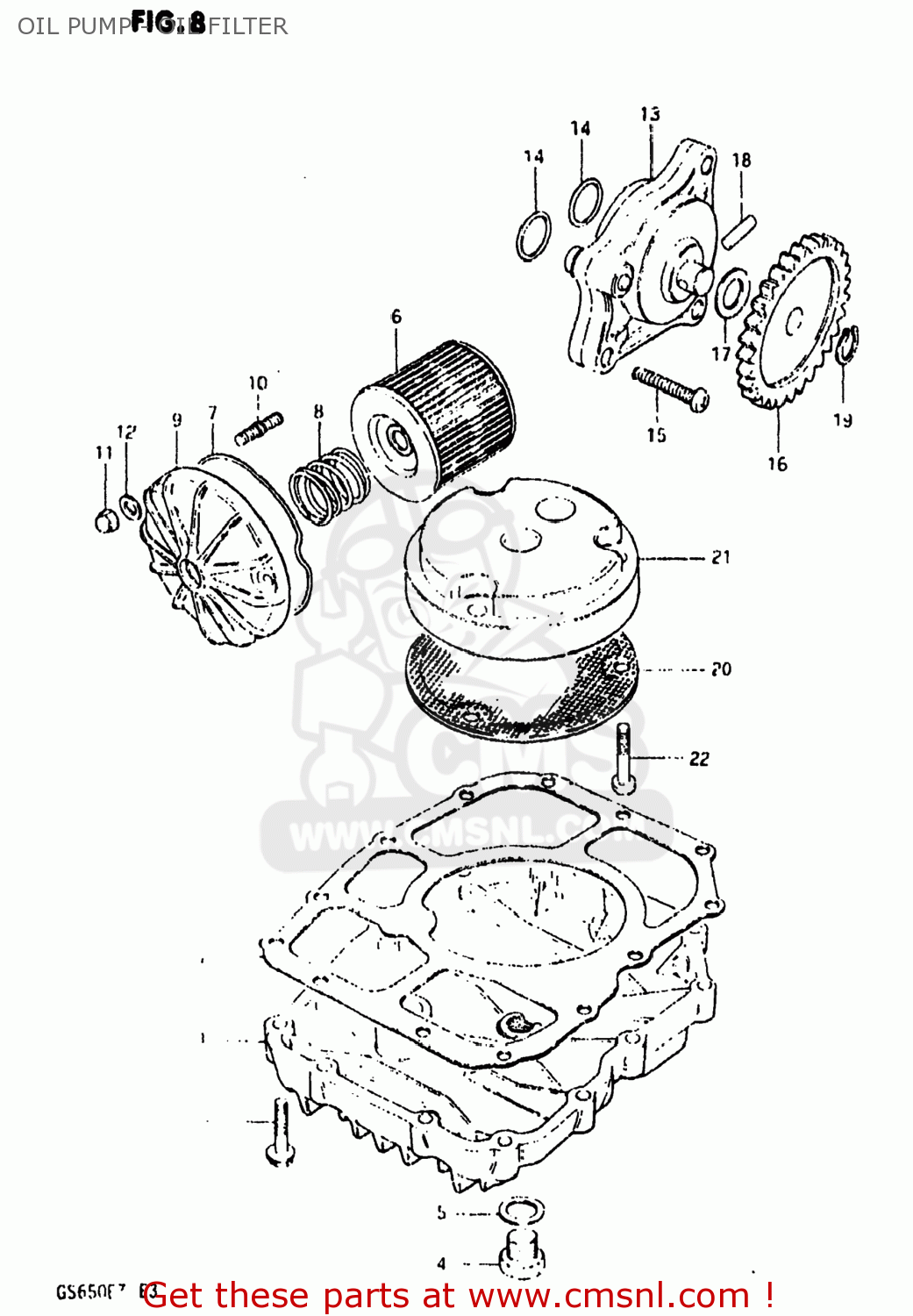

Oil pump - oil filter diagram GS650E 1982 (Z) USA (E03)
OIL PUMP - OIL FILTER GS650E 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1151147001
ref: 1
PAN,OIL
€ 77.50
2
1148947000
ref: 2
11489-47000-H17
GASKET,OIL PAN (MCA)
€ 14.00
3
0151706308
ref: 3
01550-06307
BOLT
€ 2.00
4
0924714001
ref: 4
09247-14002
PLUG
€ 5.00
5
0916814004
ref: 5
GASKET(14X19.2X2) (NAS)
€ 2.50
6
1651045040
ref: 6
FILTER ASSY,ENGINE OIL
€ 7.50
7
1651845000
ref: 7
O RING,OIL FILTER CHAMBER CAP
€ 7.50
8
0944032004
ref: 8
SPRING
€ 13.50
9
1651245101
ref: 9
CAP,ENGINE OIL FILTER
€ 37.50
10
0142106208
ref: 10
01421-0620A
STUD 6X20
€ 2.50
11
0831311068
ref: 11
08313-10067
NUT
€ 2.00
12
0832221068
ref: 12
08322-01067
WASHER
€ 2.00
13
1640045020
ref: 13
PUMP ASSEMBLY,ENGINE OIL
€ 185.00
14
0928013004
ref: 14
O RING(D:1.9,ID:13)
€ 2.50
15
0211206258
ref: 15
02112-06257
SCREW
€ 2.00
16
1633147000
ref: 16
GEAR,OIL PUMP DRIVEN
€ 25.00
17
0822110185
ref: 17
SHIM
€ 2.00
18
0926104009
ref: 18
PIN(4X15.8)
€ 1.50
19
0833131109
ref: 19
CIRCLIP
€ 2.00
20-1
1652045000
ref: 20-1
16520-45010
STRAINER,ENGINE OIL
€ 12.00
20-2
1652045010
ref: 20-2
STRAINER,ENGINE OIL
€ 12.00
21
1651534500
ref: 21
HOLDER,OIL FILTER
€ 9.50
22
0211206308
ref: 22
02112-06307
SCREW 6X30
€ 2.50
