CLUTCH
GS650E 1982 (Z) USA (E03)

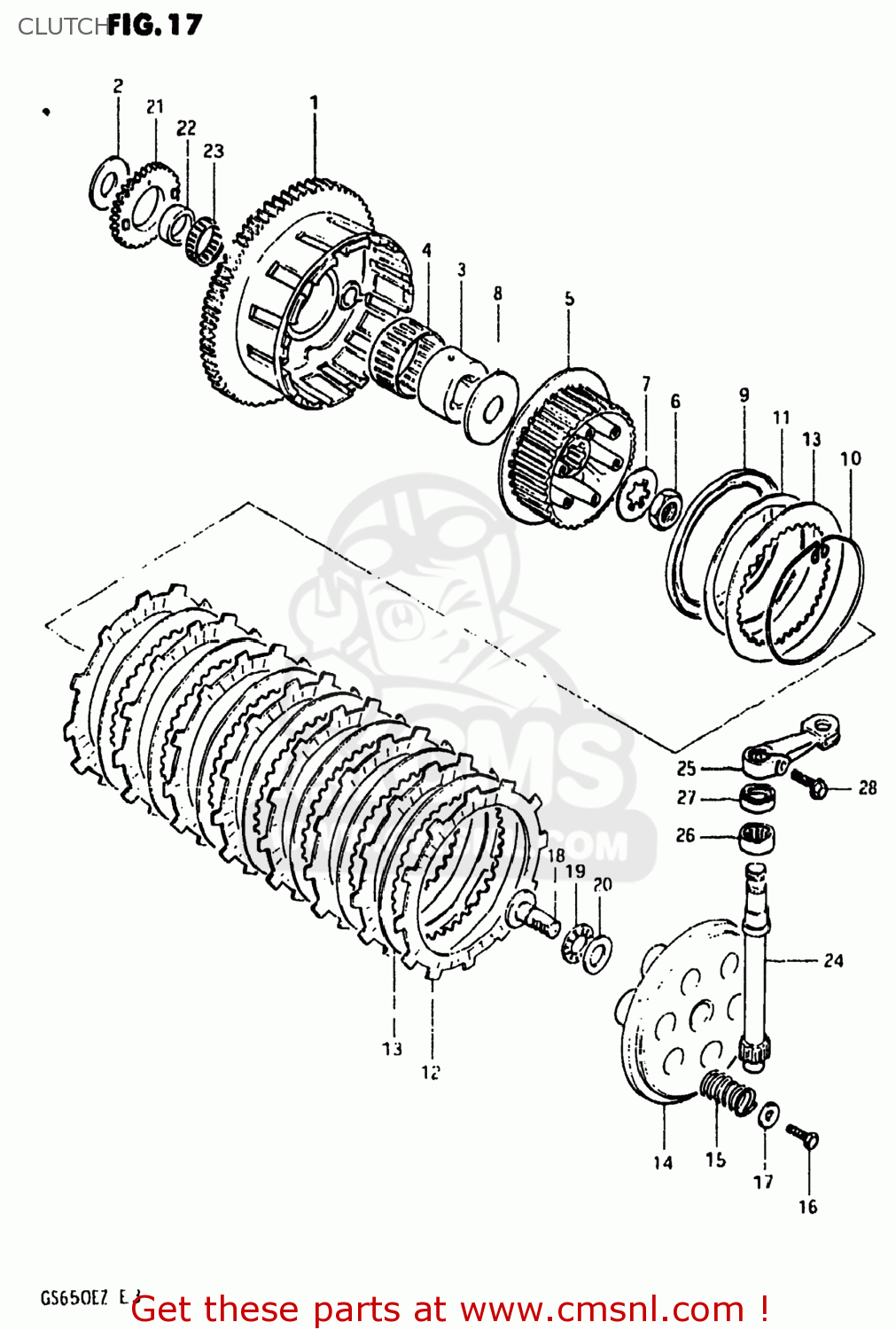

Clutch diagram GS650E 1982 (Z) USA (E03)
CLUTCH GS650E 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120047010
ref: 1
GEAR ASSEMBLY,PRIMARY DRIVE NT:87
€ 244.50
2
0916025023
ref: 2
09160-25055
WASHER
€ 9.50
3
2125145001
ref: 3
21251-49200
SPACER,PRIMARY DRIVEN
€ 65.50
4
0926351001
ref: 4
09263-51002
BEARING
€ 37.00
5
2141145100
ref: 5
HUB,CLUTCH SLEEVE
€ 107.50
6
0914024004
ref: 6
09140-24007
NUT
€ 4.50
7
0916725007
ref: 7
WASHER,LOCK
€ 7.50
8
0916025022
ref: 8
WASHER(25X66X3.5)
€ 13.50
9
2147145101
ref: 9
SEAT,WAVE WASHER
€ 16.00
10
2148145100
ref: 10
RING,STOPPER
€ 5.00
11
0916400003
ref: 11
WASHER
€ 9.00
12
2144145100
ref: 12
PLATE,CLUTCH DRIVE (MCA)
€ 20.00
13
2145131000
ref: 13
PLATE,CLUTCH DRIVEN(T:2.0) (NAS)
€ 9.00
14
2146245102
ref: 14
21462-12C00
DISC,CLUTCH PRESSURE
€ 146.50
15
0944019004
ref: 15
SPRING
€ 3.00
16
0110706168
ref: 16
01500-06167
BOLT, UPPER
€ 3.00
17
0916006020
ref: 17
09160-06066
WASHER
€ 2.00
18
2316549200
ref: 18
23165-49201
RACK,CLUTCH RELEASE
€ 21.00
19
0926315003
ref: 19
BEARING(15X28X2)
€ 7.00
20
0916015015
ref: 20
09160-15045
WASHER
€ 4.00
21
1632145002
ref: 21
GEAR,ENG OIL PUMP DRIVE(NT:38)
€ 151.00
22
1632545001
ref: 22
SPACER,OIL PUMP DRIVE GEAR
€ 13.50
23
0926336002
ref: 23
BEARING(36X40X10)
€ 24.50
24
2326149001
ref: 24
PINION,CLUTCH RELEASE
€ 28.00
25
2327134200
ref: 25
23271-34201
ARM,CLUTCH RELEASE
€ 26.50
26
0926315012
ref: 26
BEARING(15X22X12)
€ 11.50
27
0928512002
ref: 27
09285-12006
OIL SEAL
€ 7.00
28
0151706208
ref: 28
01550-06207
BOLT,REAR
€ 2.50
