WIRING HARNESS
GS650E 1982 (Z) USA (E03)

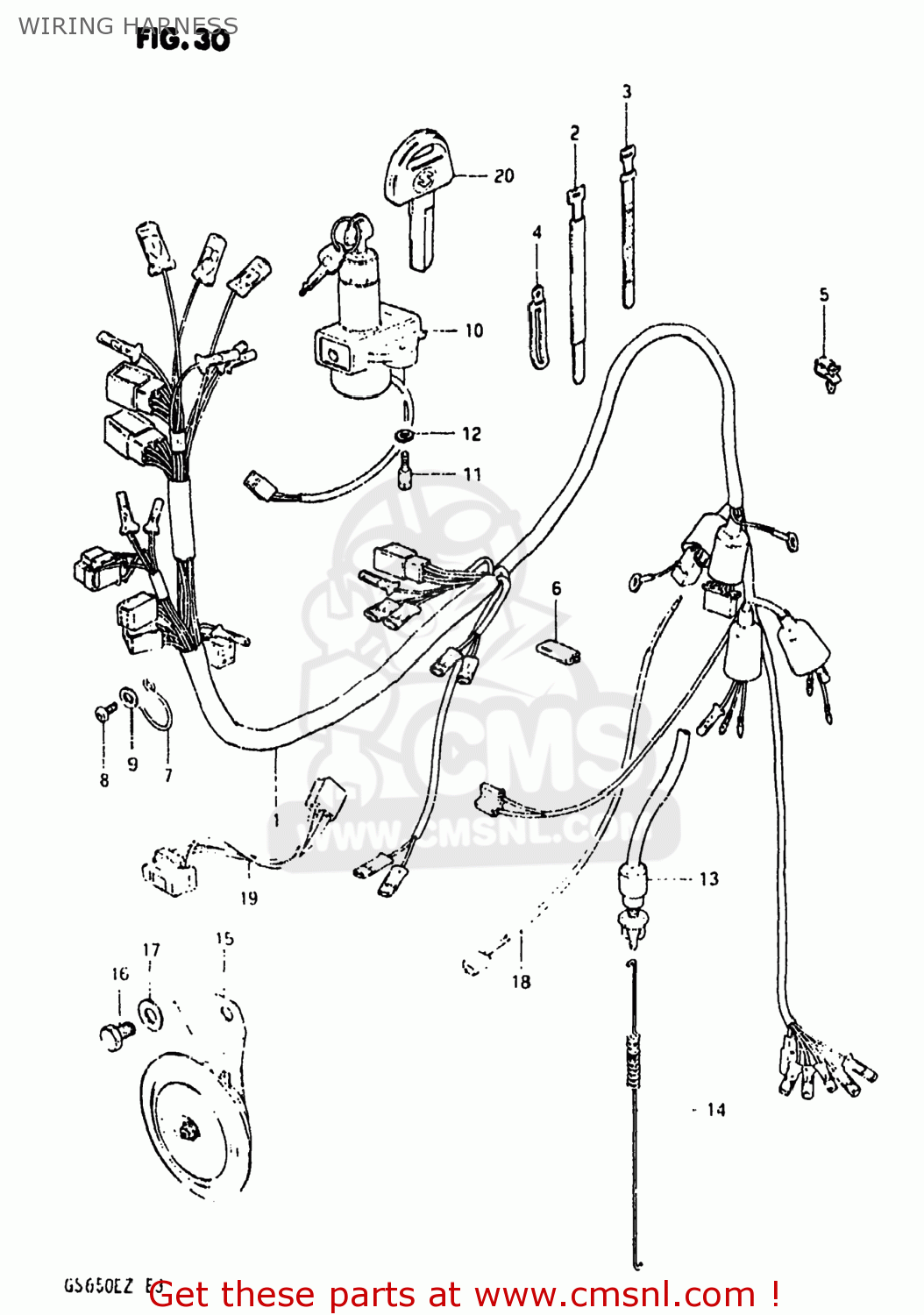

Wiring harness diagram GS650E 1982 (Z) USA (E03)
WIRING HARNESS GS650E 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661034500
ref: 1-1
HARNESS,WIRING
€ 68.50
1-2
3661034530
ref: 1-2
HARNESS,WIRING
€ 109.00
2
0940718301
ref: 2
CLAMP
€ 6.00
3
0940712402
ref: 3
CLAMP(L:120)
€ 3.00
4-1
0940406415
ref: 4-1
09404-06433
CLAMP
€ 3.00
4-2
0940406414
ref: 4-2
09404-06433
CLAMP
€ 3.00
4-3
0940406412
ref: 4-3
09404-06432
CLAMP
€ 2.50
5
0940305305
ref: 5
CLIP
€ 3.00
6
3661138000
ref: 6
PROTECTOR,WIRING HARNESS
€ 2.50
7
3661944000
ref: 7
36619-44002
GUIDE,WIRING HARNESS
€ 2.50
8
0211206128
ref: 8
02112-06127
SCREW 6X12
€ 2.00
9
0832221068
ref: 9
08322-01067
WASHER
€ 2.00
10
3710047011
ref: 10
37100-45301
LOCK ASSEMBLY,STEERING
€ 127.50
11
3715247010
ref: 11
07130-0616B
BOLT
€ 3.00
12
0832121068
ref: 12
08321-01067
LOCK WASHER
€ 2.50
13
3774004571
ref: 13
37740-48071
SWITCH ASSEMBLY,STOP LAMP
€ 22.00
14
0944306018
ref: 14
09443-06018-XC0
SPRING
€ 4.50
15-1
3850034221
ref: 15-1
HORN ASSEMBLY
€ 0.00
15-2
3850034230
ref: 15-2
HORN ASSEMBLY
€ 41.00
16
0110708128
ref: 16
01500-08127
BOLT 8X12
€ 2.50
17
0832211088
ref: 17
08322-01087
WASHER
€ 2.00
18
3685345000
ref: 18
36853-45001
WIRE
€ 9.50
19
3685234000
ref: 19
36853-30500
LEAD WIRE,HEADLAMP
€ 13.00
20
3714647010
ref: 20
KEY,BLANK
€ 15.00
